A CIMM pressure vessel ensures stable water pressure, reduces pump cycling, and protects the entire water system from pressure fluctuations. Proper installation is essential for achieving long-term performance and preventing issues such as waterlogging, vibration, incorrect pressure, or premature bladder failure.
This guide provides a clear, step-by-step installation method suitable for domestic booster pumps, multi-pump systems, irrigation setups, and commercial pressure networks.

1. Pre-Installation Checks
Before starting the installation, verify the following:
1.1 Confirm Tank Size
Ensure the selected CIMM vessel is correctly sized based on pump flow rate, cut-in and cut-out pressure, and system demand.
1.2 Inspect the Vessel
Check for:

• Any visible dents or paint damage
• Valve cap integrity
• Flange condition
• Proper labeling (capacity, working pressure, pre-charge value)

1.3 Match Pre-Charge to System Pressure
CIMM vessels come pre-charged from the factory, but the value must match the pump system’s cut-in pressure.
Rule: Pre-charge should typically be 0.2 bar below the cut-in pressure.
Adjust using a standard air pump or compressor.

2. Tools and Materials Required

• Pressure gauge for checking air pre-charge
• Adjustable wrench or spanner set
• Teflon tape or thread sealant
• Isolation valves
• Pipe fittings (brass or galvanized depending on system)
• Mounting brackets (for horizontal tanks if required)
• Flexible hose or rigid pipe connection
• Drain tray or drip protection (optional)

3. Choosing the Correct Installation Location
A properly planned location ensures safety, ease of access, and long-term reliability.
3.1 Place on a Solid, Level Surface
CIMM pressure vessels must sit firmly to avoid vibration and structural stress.
3.2 Ensure Adequate Ventilation
Avoid tight cabinets without airflow. Heat buildup reduces membrane lifespan.
3.3 Accessibility for Maintenance
Ensure space for:

• Pressure gauge checks
• Pre-charge adjustment
• Valve servicing
• Bladder replacement (for replaceable-bladder models)

3.4 Avoid Direct Sunlight and Extreme Heat
Exposure to high heat accelerates rubber membrane aging.

4. Installing the Pressure Vessel
4.1 Isolate the Pump System
Turn off the pump and close inlet and outlet valves to prevent water flow.
4.2 Connect the Vessel to the System
Typical connection points include:

• Discharge line of the pump
• Manifold of a multi-pump booster set
• Return line in recirculation systems
• Irrigation manifold
• Pressure switch line for domestic booster sets

Important: The vessel must be connected where system pressure is accurately sensed.
4.3 Use a Flexible Hose (Recommended)
A flexible braided hose helps reduce vibration transfer and simplifies maintenance.
4.4 Apply Thread Sealant
Use Teflon tape or sealant on threaded connections to prevent leaks.
4.5 Tighten the Fittings
Secure the connection without over-tightening, which may damage the tank flange.

5. Integrating Sensors and Pressure Switches
Correct sensor placement is essential for accurate pressure control.
5.1 Pressure Switch
Install the switch near the vessel connection so it senses the tank’s pressure accurately.
5.2 Pressure Gauge
Install a gauge at the pump discharge or vessel connection to monitor system pressure during setup and operation.
5.3 Non-Return Valve
Ensure a functioning check valve is installed before the tank to prevent backflow.

6. System Startup Procedure
Once the vessel is installed, follow these steps.
6.1 Open System Valves
Gradually open inlet and outlet valves to allow water into the system.
6.2 Start the Pump
Turn on the pump and let the system build pressure to the preset cut-out level.
6.3 Check for Leaks
Inspect all joints, hose connections, and the vessel flange.
6.4 Monitor Pressure Stability
Observe:

• Pump stop at the correct cut-out pressure
• Pump restart at the correct cut-in pressure
• Smooth operation without rapid cycling

6.5 Verify Drawdown Volume
Open a tap and observe how long water flows before the pump starts. This confirms the vessel is functioning correctly.

7. Special Installation Considerations

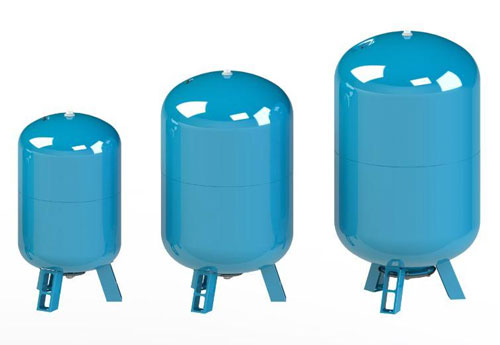

7.1 Vertical Vessels
Place directly on the floor or on a support bracket. Ensure the tank stands straight and stable.
7.2 Horizontal Vessels
Mount with proper saddles or brackets and ensure the pump does not rest on the tank.
7.3 Multi-Pump Booster Sets
Each system may require one large shared vessel or multiple smaller vessels. Ensure the vessel is sized for combined flow and cycling protection.
7.4 Hot Water and Chilled Water Applications
Ensure membrane and tank temperature ratings match the fluid being used.

8. Post-Installation Maintenance Tips
8.1 Check Pre-Charge Pressure Annually
Turn off the pump, drain the tank completely, and use a gauge to measure air pressure.
8.2 Inspect for Corrosion
Check paint condition, flange integrity, and the air valve.
8.3 Replace Bladder When Needed
Bladder-type vessels allow membrane replacement if pressure retention becomes inconsistent.
8.4 Ensure Pressure Switch Settings Remain Correct
Changes in cut-in and cut-out pressure affect cycling performance.
Installing a CIMM pressure vessel correctly is essential for stable pressure, reduced pump cycling, and long-term system reliability. By following a structured installation procedure—checking pre-charge, selecting the correct location, ensuring proper piping, and verifying pressure settings—you ensure the vessel performs at maximum efficiency for years. ​For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.

In modern residential, commercial, and industrial water systems, pumps are required to deliver water at consistent pressure and flow. However, without a pressure vessel, pumps must start and stop frequently to meet even small demands. This constant cycling increases wear, reduces efficiency, and leads to higher energy consumption.
CIMM pressure vessels are engineered to solve these issues by storing pressurized water, stabilizing system pressure, and significantly reducing the number of pump cycles. This article explains the technical principles behind pump cycling, how CIMM vessels improve system efficiency, and why they are essential for long-term pump reliability.

1. Understanding Pump Cycling
Pump cycling occurs when a pump frequently switches on and off to maintain pressure in a water system. Each start requires a surge of electrical power and applies mechanical stress to the motor and pump components.
Frequent cycling leads to:

• Increased mechanical wear
• Reduced motor lifespan
• Higher energy consumption
• Greater risk of overheating
• Pressure fluctuations in outlets
• Noise and vibration during operation

A pressure vessel is the key component that minimizes these problems.

2. The Role of a CIMM Pressure Vessel in a Pump System
A CIMM pressure vessel contains two chambers: one filled with air, the other with water. A flexible bladder or diaphragm separates these two chambers.
How the Vessel Assists the Pump

1. When the pump operates, water fills the vessel and compresses the air chamber.
2. The compressed air stores energy and maintains pressure in the system.
3. When a tap or outlet opens, water is delivered from the vessel, not immediately from the pump.
4. The pump only restarts when pressure drops below the cut-in level.

This stored pressure reduces how often the pump needs to start, creating smoother and more efficient operation.

3. How CIMM Pressure Vessels Improve Pump Efficiency
CIMM vessels improve pump efficiency through engineering design, precise pressure control, and optimized system response. The following sections explain how.
3.1 Energy Savings from Reduced Pump Starts
Pump motors consume the highest power at startup. By lowering the frequency of starts, energy usage is significantly reduced.
A correctly sized CIMM vessel allows the system to deliver several liters of water from stored pressure before starting the pump, reducing electrical load and running cost.
3.2 Maintaining Stable Pressure
Pressure stability is essential for efficient pump operation. Sudden fluctuations cause pumps to react quickly, often leading to unnecessary cycling.
CIMM vessels stabilize pressure by using compressed air as a buffer, ensuring:

• Smooth water delivery
• Reduced strain on pressure switches
• Less frequent adjustments required

Stable pressure means the pump operates within optimal conditions.
3.3 Extending Pump Motor Lifespan
Each pump start creates heat and mechanical stress on bearings, seals, and windings. Over time, frequent cycling accelerates wear and increases failure risk.
A CIMM vessel reduces these starts, allowing the pump to run longer cycles at stable conditions, which greatly improves motor longevity.
3.4 Reducing Pressure Switch Load
The pressure switch activates the pump when pressure drops below the cut-in point. Rapid fluctuations can cause the switch to trigger repeatedly.
The pressure vessel ensures slower pressure drop, reducing switch activity and extending its lifespan.
3.5 Smoother System Response Under Variable Demand
Whether a system is supplying a villa, irrigation system, or commercial building, water demand varies throughout the day.
Without a pressure vessel, even minor demand triggers the pump.
With a CIMM vessel, the system handles small consumptions directly from the tank, allowing the pump to run only when necessary.

4. How CIMM Pressure Vessels Reduce Cycling
4.1 Providing Usable Drawdown Volume
Drawdown is the amount of usable water stored inside the pressure vessel between pump start (cut-in) and stop (cut-out). The larger the drawdown, the fewer cycles the pump experiences.
CIMM vessels are engineered with optimized internal volume and membrane efficiency to maximize drawdown for each tank size.
4.2 Preventing Waterlogging
Waterlogging occurs when air pressure is lost, reducing the vessel’s ability to store energy. CIMM’s high-quality bladder and diaphragm technology ensures long-term air retention, preventing waterlogging and maintaining consistent cycling performance.
4.3 Air Cushion Absorption
The compressed air cushion inside the tank absorbs pressure spikes and hydraulic shocks. Without this cushion, pressure drops rapidly, forcing the pump to turn on sooner.
By controlling these fluctuations, CIMM vessels extend the time between pump cycles.
4.4 Consistent Pre-Charge Retention
CIMM tanks are designed to hold pre-charge pressure effectively due to airtight construction, robust valve seals, and low air permeability membranes.
Stable pre-charge means predictable pressure changes and fewer pump activations.

5. Technical Benefits in Real-World Applications
5.1 Booster Pump Systems
CIMM vessels handle small intermittent demands such as washing hands, flushing toilets, or filling small containers, preventing the booster pump from starting with every small outlet use.
5.2 Irrigation Systems
Irrigation often requires frequent on/off patterns. Pressure vessels buffer these cycles, reducing stress on pump motors and increasing reliability.
5.3 High-Rise Buildings
In multi-zone systems, vessels help stabilize pressure differentials, reducing wear on pumps and pressure-reducing valves.
5.4 Villas and Domestic Water Systems
For homes, CIMM vessels ensure quiet, stable operation with minimal pump noise and fewer disturbances caused by frequent cycling.

6. Preventing System Failures Through Reduced Cycling
Pump failures are often caused by:

• Overheating
• Bearing wear
• Seal leakage
• Electrical overload
• Pressure switch burnout

CIMM vessels prevent these failures by reducing the system’s demands on the pump. Fewer activations mean less heat, fewer vibrations, and longer lifespan for all mechanical and electrical components.

7. The Result: A More Reliable, Efficient, and Cost-Effective Pump System
When properly sized and installed, CIMM pressure vessels provide:

• Lower energy consumption
• Improved pressure stability
• Longer pump and motor service life
• Reduced maintenance interventions
• Quieter system operation
• Efficient response to fluctuating demand

These performance advantages make CIMM pressure vessels essential in any well-designed water pumping system.
CIMM pressure vessels play a vital role in improving pump efficiency and reducing cycling. Through advanced membrane technology, precise pressure control, and engineered drawdown capacity, they help pumps operate smoothly, consume less energy, and last significantly longer. Whether installed in residential, commercial, or industrial systems, a CIMM pressure vessel is a key component for achieving consistent water pressure and reliable system performance. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.

CIMM pressure vessels are engineered to maintain stable water pressure, reduce pump cycling, and protect water systems from pressure fluctuations. At the core of their performance is the internal membrane: either a bladder or a diaphragm. This membrane is responsible for separating air and water inside the tank, ensuring consistent pressure control and long-term reliability.
This technical overview explains how bladder and diaphragm systems work, the materials used, engineering advantages, and their importance in maintaining efficient water pressure.


1. The Purpose of Internal Membranes in Pressure Vessels
A pressure vessel works by compressing air as water enters the tank. For this process to function reliably, the air and water must remain completely separated. Without a membrane, air would dissolve into the water, reducing pressure over time and causing the tank to become waterlogged.
Bladder and diaphragm membranes prevent this by creating a permanent barrier inside the tank. This barrier ensures:

• Stable and predictable pressure
• Reduced pump start-stop cycles
• Prevention of air loss into the water
• Optimized pump energy consumption
• Long service life of the tank

CIMM designs its membranes with precision to achieve these performance goals.


2. What Is a Bladder in a CIMM Pressure Vessel?
A bladder is a fully enclosed, balloon-like rubber container inside the tank. Water enters and fills the bladder directly, while compressed air surrounds it within the steel shell.
Key Characteristics

• Water never touches the tank walls.
• The bladder expands and contracts as pressure changes.
• It is anchored to the flange at the bottom of the tank.
• It can be replaced in many CIMM models when worn out.

This makes bladder vessels suitable for systems requiring long-term cycling performance and easy maintenance.


3. What Is a Diaphragm in a CIMM Pressure Vessel?
A diaphragm is a rubber membrane that is fixed to the tank walls, dividing the vessel into two chambers: one for air and one for water.
Key Characteristics

• The diaphragm is not replaceable.
• Only a portion of the tank holds water; the rest contains air.
• The diaphragm moves flexibly upward and downward based on pressure.

CIMM diaphragm tanks are commonly used in domestic and commercial booster systems due to their simplicity and strong pressure stability.


4. Materials Used in CIMM Membranes
CIMM uses two primary membrane materials depending on the application:
4.1 EPDM Rubber

• High flexibility
• Excellent temperature resistance
• Suitable for potable water
• Long fatigue life

4.2 Butyl Rubber

• Extremely low permeability to air
• Superior long-term pressure retention
• Resistant to chlorinated water

These materials are manufactured according to strict standards to ensure safety, durability, and hygiene.


5. How Membrane Technology Controls Pressure
Internal membrane operation is based on water compression and air expansion:

1. The tank is pre-charged with a specific air pressure.
2. When the pump starts, water fills the bladder or pushes against the diaphragm.
3. As water volume increases, the membrane compresses the air chamber.
4. The compressed air creates a restoring force that maintains pressure in the system.
5. During water demand, the membrane releases water without immediately activating the pump.

This controlled exchange of pressure and volume creates a stable supply of water even under varying demand.


6. Engineering Advantages of CIMM Bladder and Diaphragm Systems
6.1 Air Retention Stability
The membrane prevents air from dissolving into water, enabling long-lasting pressure stability and reducing the need for frequent pre-charge adjustments.
6.2 Reduced Pump Cycling
Because the tank stores usable pressurized water, the pump runs less frequently, reducing mechanical wear and electrical consumption.
6.3 Protection Against Water Hammer
The elasticity of the membrane absorbs pressure spikes and hydraulic shock within the system.
6.4 Hygienic Water Contact
Water touches only the membrane, not the steel shell, ensuring cleanliness and compliance with potable water standards.
6.5 Increased Tank Lifespan
By preventing corrosion and keeping air and water separate, the membrane significantly extends the operating life of the tank.


7. Performance Factors Influencing Membrane Efficiency
For bladder and diaphragm systems to perform optimally, the following factors are critical:
7.1 Correct Pre-Charge Pressure
The factory-set pre-charge must be adjusted to match the system’s cut-in pressure.
7.2 Operating Temperature
Rubber membranes have specific temperature ranges. Exceeding these limits affects flexibility and lifespan.
7.3 Pump Cycling Frequency
High-frequency cycling leads to fatigue over time, making correct sizing essential.
7.4 Water Quality
Chlorine levels, pH, and mineral content affect membrane longevity.
7.5 Installation Orientation
Membranes must operate in the correct position to avoid stress concentration and uneven stretching.


8. Common Membrane Issues and Their Causes
Even high-quality membranes can face issues if system parameters are incorrect.
8.1 Loss of Air Pressure
Occurs when pre-charge is not checked regularly or when the tank develops a micro-leak.
8.2 Waterlogging
Happens when the bladder or diaphragm ruptures, allowing water to fill the air chamber.
8.3 Reduced Water Storage
Caused by low pre-charge or membrane stiffening due to age or temperature exposure.
8.4 Bladder Fatigue
Can occur after thousands of expansion cycles if the tank is undersized.
CIMM provides clear guidelines for proper sizing and installation to prevent these problems.


9. Why Membrane Technology Matters in Modern Water Systems
Bladder and diaphragm technology directly impacts the reliability, efficiency, and safety of water supply systems. In modern booster pump sets, well systems, irrigation networks, and domestic plumbing, pressure stability is essential to avoid pump failures, high electricity bills, and inconsistent water flow.
CIMM pressure vessels integrate advanced membrane engineering to provide:

• Long-term pressure stability
• Enhanced pump performance
• Reduced operational noise
• Lower maintenance costs

Membrane integrity is the heart of pressure vessel reliability.
Bladder and diaphragm technology is central to how CIMM pressure vessels stabilize water pressure and support efficient pump operation. These membranes create a sealed, flexible interface between air and water, ensuring consistent pressure control, reduced pump cycling, and long service life.
With superior materials, precise manufacturing, and advanced engineering principles, CIMM’s membrane designs offer high performance in residential, commercial, and industrial water systems. Understanding how these membranes function helps installers, technicians, and system designers select the right vessel and maintain it correctly for maximum reliability. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.

A CIMM pressure vessel is a specially engineered tank designed to maintain stable water pressure in plumbing, booster pump, and water supply systems. Manufactured in Italy, CIMM vessels are known for their precision engineering, durable materials, and advanced internal bladder and diaphragm technologies. These vessels play a crucial role in reducing pump cycling, controlling system pressure, and ensuring consistent water flow in residential, commercial, and industrial applications.
This technical overview explains what a CIMM pressure vessel is, how it works, the science behind its operation, key components, and the engineering features that make it reliable.


1. Understanding the Purpose of a Pressure Vessel
In any water system, pump cycling and pressure fluctuations can reduce efficiency and shorten pump lifespan. A pressure vessel provides a cushion of compressed air that absorbs pressure changes and stores water temporarily. By doing so, it ensures:

• Stable and consistent water pressure
• Reduced pump start-stop cycles
• Improved pump and motor lifespan
• Lower energy consumption
• Protection against pressure spikes and hydraulic shock

CIMM pressure vessels are built to deliver these functions with high precision and long-term reliability.

2. Internal Structure of a CIMM Pressure Vessel
A typical CIMM pressure vessel consists of four major components:
2.1 Steel Outer Shell
The tank body is made from high-quality steel that undergoes automated welding and structural reinforcement. The shell provides mechanical strength, pressure containment, and protection against environmental stress.
2.2 Internal Bladder or Diaphragm
CIMM uses either a replaceable bladder or a fixed diaphragm depending on the model. This membrane separates the air chamber from the water chamber inside the tank.
Key characteristics include:

• Food-grade rubber material
• High elasticity and pressure resistance
• Anti-permeation properties to prevent air absorption into the water
• Long fatigue life even with frequent cycling

This separation is essential to maintain correct air pressure and prevent waterlogging.
2.3 Pre-Charged Air Chamber
The air chamber is pre-filled with a specific pressure at the factory, usually between 1.5 to 2.0 bar depending on the vessel size. The compressed air acts as the energy storage medium that stabilizes system pressure.
2.4 Water Connection and Flange
The bottom flange provides the inlet/outlet point to connect the tank to the pump system. In bladder models, the bladder is anchored at this flange.

3. How a CIMM Pressure Vessel Works
The operation is based on the balance between air pressure and water pressure inside the vessel.
Step-by-Step Working Principle

1. Pump delivers water into the tank, pushing the bladder or diaphragm upward.
2. Air in the upper chamber compresses, creating a counter-pressure.
3. As demand increases, water is released from the tank without immediately turning on the pump.
4. Pump only starts when pressure drops to the switch cut-in level.
5. Pump stops when the tank reaches maximum pressure (cut-out level).

This cycle ensures smooth delivery of water with minimal pump cycling.

4. Key Engineering Features of CIMM Pressure Vessels
4.1 Advanced Membrane Technology
CIMM invests heavily in membrane quality. Their EPDM and butyl membranes offer:

• Low permeability
• High tensile strength
• Long-term pressure stability
• Resistance to chlorinated water

4.2 High-Precision Pre-Charge System
The tank’s pre-charge air setting is critical for proper operation. CIMM tanks maintain stable pre-charge levels over long periods due to their airtight construction.
4.3 Anti-Corrosion Protection
CIMM uses internal coatings and epoxy linings to protect the steel from corrosion caused by water exposure, especially in UAE coastal environments.
4.4 Multiple Orientations and Sizes
CIMM offers vertical and horizontal designs suitable for homes, villas, booster pump sets, irrigation systems, and industrial installations.

5. Performance Benefits of CIMM Pressure Vessels
A properly sized and installed CIMM vessel delivers several long-term advantages:

• Smooth and reliable water delivery
• Reduced electrical load on pumps
• Lower operational noise
• Increased pump lifespan due to fewer starts
• Greater energy efficiency in booster systems
• Improved system safety through pressure control

These benefits are especially important in high-rise buildings, villas, agricultural systems, and commercial installations.

6. Maintenance and Service Considerations
CIMM pressure vessels require minimal maintenance, but the following checks ensure optimal performance:

• Annual verification of pre-charge pressure
• Inspection for external corrosion
• Monitoring for unusual vibration or noise
• Checking flange integrity and membrane condition
• Ensuring pressure switch settings match system requirements

Bladder-type CIMM tanks allow easy replacement of the membrane if needed.

7. Applications of CIMM Pressure Vessels
CIMM vessels are commonly used in:

• Residential booster pumps
• Villa and building water pressure systems
• Multi-pump booster sets
• Irrigation systems
• Industrial water circulation and distribution
• HVAC chilled and hot water systems (when compatible with temperature ratings)

Their versatility makes them suitable for both domestic and heavy-duty applications.
A CIMM pressure vessel is a critical component for maintaining stable water pressure and enhancing pump efficiency in modern water systems. Its engineered steel body, high-quality bladder or diaphragm, reliable pre-charge system, and corrosion-resistant construction make it a dependable choice for residential, commercial, and industrial applications.
With proper sizing, installation, and maintenance, CIMM pressure vessels deliver long service life, energy savings, and consistent water performance across a wide range of operating conditions. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.

CIMM pressure vessels play a critical role in maintaining stable water pressure and protecting pumps from excessive cycling. However, even a high-quality vessel can perform poorly if installed incorrectly. Improper installation can lead to waterlogging, frequent pump cycling, loss of pressure, vibration, premature bladder failure, and reduced system efficiency.
This guide explains the most common installation mistakes technicians encounter and provides clear solutions for preventing them.

1. Incorrect Pre-Charge Pressure Setting
The most common mistake is installing the vessel without adjusting the pre-charge pressure.
What Happens

• Pump cycles too frequently
• Reduced usable drawdown volume
• Bladder overstretching
• Pressure fluctuations in outlets

How to Avoid It

• Always check pre-charge before installation using a calibrated air gauge.
• Pre-charge must be set 0.2 bar below the system cut-in pressure.
• Check pre-charge again after system testing as air valves may settle.

2. Installing the Vessel in the Wrong Location
Placement directly affects system performance and pressure accuracy.
What Happens

• Poor pressure switching response
• Rapid pump cycling
• Inaccurate pressure readings

How to Avoid It

• Install the tank on the discharge side of the pump.
• Place it close to the pressure switch or pressure sensor.
• Ensure the vessel connects to a point where system pressure is stable.

Improper location often causes the pump to switch on even when the tank still has usable pressure.

3. Using Rigid Piping Without Support or Flexibility
Directly rigid-piping the tank into the system increases stress on the flange and body.
What Happens

• Vibration transfer from pump
• Cracked fittings
• Premature flange gasket failures

How to Avoid It

• Use a flexible braided hose between the pump discharge and the vessel.
• Ensure piping weight is not supported by the tank body.
• Provide wall or floor supports for heavy pipe sections.

4. Failure to Properly Seal Threaded Connections
Incorrect application of thread sealant leads to leaks and pressure loss.
What Happens

• Air escapes from the tank
• Water leakage damages floors or pump stands
• Pressure instability in the system

How to Avoid It

• Apply Teflon tape or thread sealant evenly and in the correct direction.
• Do not over-tighten connections, which may damage the flange or male threads.
• Inspect connections after the first pressurization.

5. Mounting a Horizontal Tank Without Proper Support
Horizontal vessels require saddles or brackets.
What Happens

• Tank deformation
• Uneven stress on the bladder
• Increased vibration during pump operation

How to Avoid It

• Use manufacturer-approved mounting brackets.
• Position the tank so weight is evenly distributed.
• Ensure pump motor weight is never resting on the vessel.

6. Ignoring System Cleanliness Before Installation
Debris or scale inside the system can damage the membrane.
What Happens

• Bladder punctures
• Blocked vessel inlet
• Reduced drawdown capacity

How to Avoid It

• Flush the system thoroughly before installation.
• Clean filters and strainers.
• Avoid installing vessels in systems with sediment-heavy water unless filtration is added.

7. Incorrect Pressure Switch Settings
Pressure vessels perform poorly when the pressure switch is not synchronized with the tank.
What Happens

• Rapid cycling
• Low usable drawdown
• Over-pressurization of the bladder

How to Avoid It

• Set the pressure switch cut-in and cut-out after adjusting pre-charge.
• Ensure cut-in is always higher than pre-charge.
• Verify pump stops and restarts at correct pressures during testing.

8. Installing the Vessel in Direct Sunlight or High-Heat Areas
Heat reduces membrane elasticity and accelerates tank corrosion.
What Happens

• Shortened bladder lifespan
• Internal pressure fluctuations
• Higher risk of membrane rupture

How to Avoid It

• Install the vessel in a shaded, ventilated area.
• Avoid placing next to hot pipes or boilers.
• For outdoor installations, use protective covers or enclosures.

9. Overlooking the Need for a Non-Return Valve
Without a functioning check valve, pressure vessels cannot maintain system pressure.
What Happens

• Reverse flow into the pump
• Water escapes from the tank too quickly
• Pump starts unnecessarily

How to Avoid It

• Install a non-return valve before the vessel connection.
• Test check valve sealing during commissioning.

10. Not Allowing Space for Maintenance
Technicians often install vessels in tight locations without service access.
What Happens

• Unable to check pre-charge
• Difficult to replace bladder
• Hard to isolate the tank

How to Avoid It

• Leave adequate clearance around the vessel.
• Install isolation valves for easy removal and servicing.
• Plan future maintenance during the installation layout.

11. Forgetting to Drain the Tank Before Checking Pre-Charge
Many installers check pre-charge pressure while the tank is still full of water.
What Happens

• Incorrect pre-charge reading
• System imbalance
• Bladder stretching or collapsing

How to Avoid It

• Always turn off the pump and drain the vessel completely before measuring air pressure.
• Use a reliable pressure gauge for accurate readings.

12. Installing the Vessel Too Far from the Pump
Long pipe distances reduce pressure responsiveness.
What Happens

• Delayed pressure feedback
• Pressure switch activates irregularly
• Frequent cycling even with a properly sized tank

How to Avoid It

• Install the vessel as close as possible to the pump discharge or manifold.

CIMM pressure vessels deliver excellent performance when installed correctly, but even small mistakes can lead to significant system problems. By avoiding the common errors listed above—such as incorrect pre-charge, improper placement, poor sealing, lack of support, and incorrect pressure switch settings—installers can ensure that the vessel operates efficiently and provides long-term pressure stability.
Proper installation not only protects the pressure vessel but also significantly extends the lifespan of the pump, pressure switch, and overall water system. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.

A cold water pressure vessel is one of the most essential components in modern water supply systems. Whether used in residential buildings, commercial facilities, irrigation networks, or booster pump sets, the pressure vessel plays a critical role in ensuring steady water pressure, preventing pump damage, and improving system efficiency. Understanding how it works helps installers, technicians, and building owners maintain reliable water performance with fewer breakdowns and lower operational costs.

What Is a Cold Water Pressure Vessel?
A cold water pressure vessel is a sealed tank designed to store water under pressure. It uses a pre-charged cushion of air and an internal bladder or diaphragm to maintain consistent water pressure in the system. When paired with pumps, it helps regulate flow, reduce pump cycling, and smooth out pressure fluctuations.
These vessels are specifically engineered for cold water applications such as domestic water supply, fire protection, agriculture, HVAC makeup water, and industrial processes.

Why Pressure Vessels Are Needed in Water Systems
Without a pressure vessel, a pump must switch on every time water is demanded. This causes rapid start-stop cycles, stress on electrical components, overheating, and high energy consumption. A pressure vessel prevents these problems by storing pressurized water and releasing it instantly when the user opens a tap or valve.
This reduces pump running hours, prolongs equipment life, and ensures stable water pressure throughout the system.

Key Components of a Cold Water Pressure Vessel
1. Outer Tank Shell
The external body, typically made from carbon steel, stainless steel, or composite material, designed to withstand high internal pressure and prevent external corrosion.
2. Internal Bladder or Diaphragm
A flexible membrane that separates the water from the air chamber.
Its role is to prevent water from mixing with air, ensuring consistent pressure and reducing the need for recharging.
3. Air Chamber
An air-filled section pre-charged to a specific pressure level.
This air cushion compresses and expands during pump operation, allowing the vessel to act as an energy storage device.
4. Water Connection Port
The inlet/outlet opening that connects the vessel to the pipeline or pump discharge.
5. Pressure Gauge and Valve Port
Some vessels include ports for measuring and adjusting the air pre-charge.

How a Cold Water Pressure Vessel Works: Step-by-Step
Step 1: Pump Fills the Vessel
When the pump runs, water enters the vessel and pushes against the bladder, compressing the air chamber.
Step 2: Air Compresses and Stores Energy
As the air compresses, it creates stored pressure that will later supply water even when the pump is off.
Step 3: Pressure Reaches Cut-Out Level
Once the system reaches the desired pressure, the pressure switch turns off the pump.
Step 4: Pressure Vessel Supplies Water
When a tap opens, the compressed air pushes water from the vessel into the pipes, maintaining steady pressure.
Step 5: Pump Restarts Only When Needed
After enough water is used and pressure drops to the cut-in level, the pump starts again, completing the cycle.
This process reduces pump cycling and stabilizes the entire water system.

The Role of Pre-Charge Pressure
Pre-charge is the air pressure inside the vessel before water enters.
It must be set correctly for the system to operate efficiently.

• If pre-charge is too low, the vessel becomes waterlogged.
• If pre-charge is too high, very little water can enter the vessel.
• Correct pre-charge ensures maximum drawdown volume and minimal pump cycling.

Typically, it should be set 2 psi (or approximately 0.1–0.2 bar) below the pump’s cut-in pressure.

Benefits of Using a Cold Water Pressure Vessel
Stable Pressure Delivery
Users experience consistent pressure even at peak demand times.
Reduced Pump Cycling
Minimizes frequent on/off operation, extending pump lifespan.
Lower Energy Consumption
Efficient cycling means reduced electricity usage.
Protection Against Water Hammer
The air chamber absorbs sudden pressure spikes in the pipeline.
Longer System Life
Both pumps and plumbing equipment last significantly longer.

Common Applications of Cold Water Pressure Vessels

• Domestic booster pump systems
• High-rise building water supply
• Irrigation and agricultural pumping
• Industrial water transfer systems
• Cooling and HVAC makeup water
• Commercial buildings and hotels
• Firefighting jockey pump systems

Signs a Pressure Vessel Is Not Working Properly

• Frequent pump cycling
• Poor or unstable water pressure
• Water leaking from the air valve
• Vessel feeling heavy or full of water
• Pump overheating or short cycling

These symptoms often indicate a ruptured bladder or incorrect pre-charge.
A cold water pressure vessel is a simple yet highly effective component that ensures stable pressure, longer pump life, and reduced operating costs. Understanding how it functions helps installers and building owners select the right vessel, maintain it properly, and prevent system failures. Whether for homes, commercial buildings, or irrigation systems, a well-sized and properly installed pressure vessel is essential for reliable water supply. For more info contact Pressure Vessel Suppliers in UAE  or call us at +971 4 252 2966.

Cold water pressure vessels are essential for achieving consistent and reliable water pressure in homes, commercial buildings, irrigation networks, and booster pump systems. Without them, pumps would run continuously or cycle excessively, causing pressure fluctuations, energy waste, and frequent equipment failures. Understanding how these vessels stabilize pressure helps technicians, designers, and end users maintain efficient and trouble-free water systems.


Why Stable Water Pressure Matters
Stable pressure is crucial for proper functioning of taps, showers, appliances, and irrigation systems. Fluctuating pressure can cause:

• Uneven water flow
• Water hammer and pipeline stress
• Increased pump cycling
• Premature pump wear
• Inconsistent performance during peak demand

A cold water pressure vessel reduces these issues by storing pressurized water and absorbing pressure changes within the system.

The Core Principle: Compressible Air Regulates Water Pressure
The key to how a pressure vessel stabilizes water pressure lies in compressed air. Unlike water, air compresses easily.
The vessel uses this natural property to smooth out pressure spikes and provide steady flow.
Inside the vessel, the water chamber and air chamber are separated by a bladder or diaphragm. When water enters, it compresses the air. This compressed air acts like a spring, storing energy and releasing it smoothly during water demand.

How a Cold Water Pressure Vessel Maintains Pressure: Step-by-Step Process
1. Pump Pressurizes the System
When the pump operates, water flows into the vessel, pushing the bladder inward. This compresses the air cushion inside the tank.
2. Air Compression Creates Stored Pressure
The compressed air stores energy, similar to a compressed spring.
This stored energy is what maintains water pressure even when the pump switches off.
3. Pressure Reaches the Cut-Out Point
When the system reaches the preset high pressure, the pressure switch stops the pump.
At this moment, the vessel contains both water and compressed air ready for use.
4. Vessel Supplies Water During Demand
When a tap or valve opens, the compressed air expands and forces water out of the vessel.
This provides immediate pressure, preventing sudden pressure drops.
5. Smooth Pressure Delivery Across the System
Because the air cushion expands gradually, the user experiences:

• Steady flow
• Reduced water hammer
• Adjusted flow even at varying demand levels

6. Pump Restarts Only When Needed
When enough water is used and pressure drops to the cut-in level, the pump starts again.
This controlled cycling maintains stable system pressure and protects pump components.

How Pressure Vessels Prevent Pump Short Cycling
Without a pressure vessel, pumps would switch on and off every few seconds during water usage.
This is known as short cycling and leads to:

• Motor overheating
• Rapid wear on bearings and seals
• Higher electrical consumption
• Frequent pump failures

A pressure vessel increases the amount of water available before the pump must restart.
This maintains stable pressure while significantly reducing the number of pump cycles.

The Role of Pre-Charge Pressure in Pressure Stability
The internal air pre-charge must be correctly set for the vessel to regulate pressure effectively.
If the pre-charge is too low

• The vessel becomes waterlogged
• Pressure becomes unstable
• Pump cycles excessively

If the pre-charge is too high

• Minimal water enters the vessel
• The pressure system becomes too sensitive
• Pump starts and stops too frequently

Correct pre-charge must match the system design, usually set just below the pump’s cut-in pressure.

How Pressure Vessels Control Water Hammer
Water hammer is a shockwave caused by sudden valve closure or rapid pump stoppage.
The vessel stabilizes the system by:

• Absorbing pressure spikes
• Cushioning hydraulic shocks
• Protecting pipelines, joints, and fittings

The compressible air chamber acts as a natural shock absorber, dramatically reducing system stress.

Benefits of Stable Water Pressure in Pump Systems
A well-sized and properly charged pressure vessel ensures:

• Consistent flow at all outlets
• Long pump life due to reduced cycling
• Lower energy consumption
• Reduced maintenance costs
• Protection against pipeline damage
• Smoother operation even during peak usage

Where Stable-Pressure Operation Is Most Important

• Domestic booster pump systems
• High-rise building water distribution
• HVAC chilled and hot water makeup systems
• Irrigation and agricultural watering
• Commercial buildings and hotels
• Industrial washdown and process water systems

In all these applications, stable pressure is essential for reliability, comfort, and efficiency.
Cold water pressure vessels play a crucial role in maintaining stable water pressure by utilizing compressed air to regulate flow, absorb fluctuations, and minimize pump cycling. Their ability to store pressurized water and deliver it smoothly ensures consistent performance and protects the entire pumping system from wear and damage. When properly sized, installed, and maintained, a pressure vessel is one of the most effective components for ensuring long-term water system stability. For more info contact Pressure Vessel Suppliers in UAE  or call us at +971 4 252 2966.

Cold water pressure vessels rely on internal air cushioning to stabilize system pressure, reduce pump cycling, and improve water delivery performance. At the center of this process lies one critical component: the internal bladder or diaphragm. Although they are hidden inside the tank, these flexible membranes determine the efficiency, reliability, and lifespan of the pressure vessel.
This article explains why bladder and diaphragm design is essential, how they function, and what makes a well-designed membrane critical for high-performance pressure vessels.

What Is a Bladder or Diaphragm in a Pressure Vessel?
Inside every cold water pressure vessel, the air chamber and water chamber must stay completely separated. This prevents air from dissolving into the water and maintains a stable pressurized environment.
The separation is achieved using either:

• A bladder, a fully enclosed water bag inside the tank
• A diaphragm, a flexible membrane bonded around the inner walls of the tank

Both designs ensure that water enters only a designated compartment while the air remains in its chamber.

The Core Functions of the Bladder or Diaphragm
1. Maintaining the Air-to-Water Separation
The most important function of the membrane is to keep air from mixing with water.
Without this separation, the air cushion would gradually dissolve into the water, causing:

• Pressure instability
• Frequent pump cycling
• Waterlogging of the tank

The membrane keeps the system consistent and predictable.
2. Allowing Controlled Compression and Expansion
During pump operation, the bladder expands as water enters, compressing the air around it.
When water is released, the compressed air pushes back, ensuring smooth flow.
This compression-expansion cycle depends entirely on membrane flexibility and durability.
3. Preventing Internal Corrosion
Because water is contained inside the bladder or behind the diaphragm, it has minimal contact with the tank shell.
This reduces corrosion risk and extends the lifespan of steel pressure vessels.
4. Supporting Efficient Pump Operation
By regulating drawdown volume and pressure response, the bladder and diaphragm help:

• Minimize pump start-stop cycles
• Maintain stable pressure levels
• Reduce energy consumption
• Protect pumps from overheating and wear

How Bladder Design Impacts Performance
A high-quality bladder must balance flexibility with structural strength. Design considerations include:
Material Composition
Common materials:

• Butyl rubber
• EPDM
• Chlorobutyl

Butyl is preferred for its excellent air retention and durability, especially in potable water applications.
Wall Thickness and Elasticity
The bladder must stretch uniformly without cracking or thinning.
Too rigid, and it limits water volume.
Too thin, and it risks rupture.
Shape and Welding Quality
A well-designed bladder distributes stress evenly.
Poor welding or misaligned seams can lead to early failures.

How Diaphragm Design Impacts Performance
Diaphragm pressure vessels typically have a membrane fixed around the tank walls.
Advantages of Diaphragm Design

• More compact internal design
• Suitable for smaller vessels
• Reduced risk of bladder folding or twisting

Key Design Factors

• Even bonding to the tank interior
• Flexibility that allows full expansion
• Resistance to fatigue from constant movement

Performance Problems Caused by Poor Bladder or Diaphragm Design
A pressure vessel is only as reliable as its internal membrane.
Common issues that arise from poor design include:
1. Bladder Rupture
A ruptured bladder allows water to fill the entire tank, eliminating the air chamber and causing pump short cycling.
2. Loss of Pre-Charge Pressure
If the membrane leaks air, the tank becomes waterlogged and loses its ability to stabilize pressure.
3. Reduced Drawdown Volume
Poor flexibility limits the water volume the vessel can deliver, leading to frequent pump operation.
4. Premature Wear
Low-grade rubber deteriorates quickly in harsh climates or fluctuating temperatures.

Why High-Quality Bladder and Diaphragm Design Matters
Ensures Stable Water Pressure
A durable, flexible membrane allows consistent compression and expansion cycles, maintaining smooth system pressure.
Extends Pump Life
Reduced cycling decreases mechanical stress on motors, impellers, bearings, and seals.
Improves Energy Efficiency
Better drawdown volume reduces electricity consumption by minimizing pump running time.
Prevents Maintenance Problems
A robust bladder or diaphragm reduces failures, leaks, and pressure instability, ensuring long-term system reliability.
Supports Hygienic Water Storage
Potable-grade membranes prevent contamination and maintain water quality.

Choosing the Right Membrane for Your Application
Selecting the right membrane depends on:

• System pressure requirements
• Water temperature
• Pump cycling frequency
• Environmental conditions (coastal, hot climate, etc.)
• Compliance with drinking water standards

For high-rise buildings, irrigation systems, and commercial booster sets, choosing a premium-grade butyl bladder or high-strength diaphragm ensures better performance and long lifespan.
The bladder or diaphragm is the core of a cold water pressure vessel. It determines how effectively the vessel can separate air and water, control expansion, regulate pressure, and support pump efficiency. A well-designed membrane ensures stable pressure, long equipment life, and reliable performance in residential, commercial, and industrial applications.
Understanding the importance of bladder and diaphragm design helps installers, engineers, and building owners select the right pressure vessel and maintain it properly for long-term reliability. For more info contact Pressure Vessel Suppliers in UAE  or call us at +971 4 252 2966.

A cold water pressure vessel is a critical element in domestic, commercial, and industrial water systems. Its primary purpose is to stabilize water pressure, reduce pump cycling, and improve overall system performance. To fully understand how a pressure vessel works, it is important to know the key components inside the tank and their individual roles. Each component plays a vital part in ensuring smooth operation, long-term durability, and consistent pressure delivery.
This article explains the main components of a cold water pressure vessel, including the tank shell, internal bladder or diaphragm, fittings, and essential valves.

1. Tank Shell
The tank shell is the outer body of the pressure vessel. Its job is to withstand internal pressure and protect the internal components from environmental conditions.
Key Functions of the Tank Shell

• Provides structural strength to contain pressurized water and air
• Protects the internal bladder from external damage
• Maintains a stable environment for pressure control
• Ensures long service life with corrosion-resistant coatings

Materials Commonly Used

• Carbon steel with epoxy coating
• Stainless steel for coastal or high-corrosion environments
• Composite materials for lightweight applications

Design Features

• Cylindrical or spherical shapes for optimal pressure distribution
• Vertical or horizontal installation depending on system layout

The integrity of the tank shell is essential for safe operation, making material quality and coating selection important for long-term reliability.

2. Internal Bladder or Diaphragm
The bladder or diaphragm is the heart of the pressure vessel. It separates the water chamber from the air chamber and ensures that air does not mix with water.
How the Bladder Works

• As the pump fills the vessel, water enters the bladder
• The bladder expands, compressing the air in the tank
• The compressed air provides stored pressure for water delivery
• When water is demanded, the air forces water out of the bladder smoothly

Types

• Bladder: A fully enclosed water chamber that expands and contracts
• Diaphragm: A flexible membrane bonded peripherally inside the tank

Why It Is Important

• Prevents air absorption into water
• Maintains consistent pre-charge pressure
• Improves pressure stability
• Protects the pump by reducing rapid cycling

A damaged bladder is one of the most common causes of pressure vessel failure.

3. Air Chamber
While not a physical component, the air chamber is created by the space surrounding the bladder or diaphragm.
Function of the Air Chamber

• Stores compressed air energy
• Acts as a shock absorber for pressure fluctuations
• Provides stable water pressure between pump cycles
• Prevents water hammer in pipeline systems

The air chamber works in harmony with the bladder to regulate system pressure efficiently.

4. Water Connection Fittings
Fittings connect the pressure vessel to the piping system. They ensure water flows in and out of the tank effectively without leaks.
Common Fitting Types

• Threaded connections (male or female)
• Flanged connections for larger vessels
• Stainless steel or brass fittings for corrosion resistance

Role in System Performance

• Provide secure, leak-free connection to pump discharge
• Ensure optimal water flow into the bladder
• Allow integration with valves, gauges, and additional components

Improper fittings or poor installation can lead to vibration, leaks, and system pressure loss.

5. Air Valve (Schrader Valve)
The air valve is used to check or adjust the pre-charge pressure inside the vessel.
Functions

• Allows technicians to refill or release air
• Used during commissioning and maintenance
• Helps maintain correct air-to-water ratio

An incorrect pre-charge leads to waterlogging, unstable pressure, and pump short cycling.

6. Pressure Gauge Port
Some vessels include a port to install a pressure gauge for monitoring system pressure.
Importance

• Helps verify operating pressure
• Assists in troubleshooting pressure fluctuations
• Ensures correct pump cut-in and cut-out settings

The pressure gauge port is a simple but vital diagnostic component.

7. Base and Mounting Supports
Vessels require proper base support to remain stable during operation, especially when filled with water.
Functions

• Maintain tank stability
• Reduce vibration transfer
• Ensure safe installation according to system design

Vertical and horizontal vessels have different support structures depending on tank orientation.

8. Optional Accessories
Depending on application and manufacturer, additional components may include:

• Isolation valves for easy maintenance
• Drain valves for flushing the vessel
• Anti-corrosion linings
• Integrated sensors for smart monitoring

These accessories enhance functionality and ease of operation.

Why Each Component Matters
Every component in a cold water pressure vessel contributes to:

• Maintaining stable pressure
• Reducing pump cycling
• Increasing energy efficiency
• Preventing pipeline damage
• Ensuring long-term system reliability

A pressure vessel is most effective when all components are properly designed, installed, and maintained.

A cold water pressure vessel is more than just a storage tank. It is a carefully engineered system consisting of a durable tank shell, a flexible bladder or diaphragm, precision fittings, and essential valves. Together, these components ensure stable water pressure, reduced pump cycling, and efficient system performance across residential, commercial, and industrial applications.
Understanding each component helps installers, maintenance technicians, and system designers select the right vessel and ensure trouble-free operation for many years. For more info contact Pressure Vessel Suppliers in UAE  or call us at +971 4 252 2966.

Cold water pressure vessels are essential components in hydropneumatic and booster pump systems. They provide stable pressure, reduce pump cycling, and protect pipelines from hydraulic shock. While their operation appears simple on the surface, the underlying science is based on fundamental physical laws governing pressure, volume, and expansion. Understanding this science helps system designers, technicians, and installers optimize vessel sizing, pre-charge settings, and long-term performance.
This article explains the physics behind pressure vessel operation, focusing on how pressure, volume, and air expansion work together to maintain system stability.


Understanding the Basic Principle: Air Is Compressible, Water Is Not
A pressure vessel works because air compresses easily, while water is nearly incompressible.
By using a sealed air chamber separated from water by a bladder or diaphragm, the vessel stores energy in the form of compressed air. This stored energy stabilizes water flow and pressure in the system.
Whenever water enters the vessel, the air compresses. When water exits, the air expands. This compression-expansion cycle forms the foundation of pressure vessel operation.

Boyle’s Law: The Core Scientific Principle
Pressure vessel behavior is governed by Boyle’s Law, which states:
P₁ × V₁ = P₂ × V₂
Where:

• P = Pressure of air
• V = Volume of air

This means:
When the air volume inside the vessel decreases (because water pushes into the bladder), the air pressure increases.
Conversely, when water leaves the bladder and the air volume expands, the air pressure decreases.
This pressure shift is what supplies water at a constant pressure even when the pump is not running.

How Pressure and Volume Change During Operation
1. Initial State: Pre-Charge Condition
Before any water enters, the vessel contains air at a set pre-charge pressure.
This establishes the base air volume that will compress once water fills the bladder.
2. Pump On: Water Enters the Vessel
The pump forces water into the bladder.
Water pushes against the air chamber, reducing its volume.
According to Boyle’s Law, as the air volume decreases, pressure increases.
This rising pressure is what supports:

• Smooth delivery of water
• Stable system pressure
• Reduced pump cycling

3. Pump Off: System Reaches Cut-Out Pressure
Once the system reaches the upper pressure limit, the pressure switch stops the pump.
The vessel now contains:

• Compressed air
• Stored pressurized water in the bladder

4. Water Demand: Air Expands to Maintain Pressure
When a tap opens or the system requires water, the compressed air expands.
This expansion pushes water out of the bladder at a consistent pressure.
The gradual expansion ensures a smooth flow, preventing sudden pressure drops.

The Importance of Air-to-Water Ratio
Every pressure vessel must maintain the correct air-to-water ratio to operate efficiently.
Too much air

• Limited water volume in the bladder
• Vessel delivers only a small amount of water before pump restarts
• High pump cycling

Too little air

• Vessel becomes waterlogged
• Air chamber cannot expand
• Pressure becomes unstable and system loses efficiency

Maintaining the correct ratio ensures maximum “drawdown” — the usable volume of water the vessel can supply between pump cycles.

Why Pre-Charge Pressure Determines Vessel Performance
Pre-charge pressure is the most critical setting in a pressure vessel.
It must be adjusted accurately for the vessel to operate according to Boyle’s Law.
Typical guideline:
Pre-charge should be set 0.1–0.2 bar (or 2–3 psi) below the pump cut-in pressure.
If pre-charge is incorrect:
Low pre-charge

• Air chamber too small
• Vessel fills completely with water
• Severe pump short cycling

High pre-charge

• Water cannot enter the vessel properly
• Minimum drawdown volume
• Rapid pressure fluctuations

Correct pre-charge ensures proper compression and expansion cycles.

Expansion Control and Pressure Stability
The pressure vessel acts as a stabilizer because the air chamber naturally absorbs pressure spikes.
This provides several key benefits:
1. Water Hammer Reduction
The expanding air chamber cushions sudden changes in pressure, protecting pipelines and valves.
2. Steady Pressure During Peak Demand
Even when pumps are off, the vessel maintains flow by releasing stored pressure gradually.
3. Energy Efficiency
By reducing pump starts, expansion control lowers electrical consumption significantly.
4. Longer Pump Lifespan
Stable pressure means less mechanical stress, extending pump service life.

How Vessel Size Affects Pressure and Expansion Control
Larger vessels hold more air volume, meaning:

• Greater ability to store pressurized water
• Less frequent pump starts
• Better stability during high demand

Smaller vessels react more quickly to changes in pressure but offer less drawdown capacity. Proper sizing requires balancing system flow rate, pressure settings, and cycle frequency.

Real-World Applications of Pressure Vessel Physics
The science of pressure, volume, and expansion control influences performance in:

• Domestic booster pump systems
• High-rise building water distribution
• Irrigation networks
• Industrial washdown and process systems
• HVAC makeup water systems
• Commercial plumbing systems

In all applications, understanding the underlying physics leads to better system design and maintenance.
The operation of a cold water pressure vessel is rooted in fundamental physics. By applying Boyle’s Law, the vessel uses the relationship between pressure and volume to store energy and deliver stable water pressure. Proper expansion control, accurate pre-charge pressure, and correct vessel sizing ensure efficient performance, reduced pump cycling, and long-term reliability. For more info contact Pressure Vessel Suppliers in UAE  or call us at +971 4 252 2966.
