A CIMM pressure vessel is a specially engineered tank designed to maintain stable water pressure in plumbing, booster pump, and water supply systems. Manufactured in Italy, CIMM vessels are known for their precision engineering, durable materials, and advanced internal bladder and diaphragm technologies. These vessels play a crucial role in reducing pump cycling, controlling system pressure, and ensuring consistent water flow in residential, commercial, and industrial applications.
This technical overview explains what a CIMM pressure vessel is, how it works, the science behind its operation, key components, and the engineering features that make it reliable.


1. Understanding the Purpose of a Pressure Vessel
In any water system, pump cycling and pressure fluctuations can reduce efficiency and shorten pump lifespan. A pressure vessel provides a cushion of compressed air that absorbs pressure changes and stores water temporarily. By doing so, it ensures:

• Stable and consistent water pressure
• Reduced pump start-stop cycles
• Improved pump and motor lifespan
• Lower energy consumption
• Protection against pressure spikes and hydraulic shock

CIMM pressure vessels are built to deliver these functions with high precision and long-term reliability.

2. Internal Structure of a CIMM Pressure Vessel
A typical CIMM pressure vessel consists of four major components:
2.1 Steel Outer Shell
The tank body is made from high-quality steel that undergoes automated welding and structural reinforcement. The shell provides mechanical strength, pressure containment, and protection against environmental stress.
2.2 Internal Bladder or Diaphragm
CIMM uses either a replaceable bladder or a fixed diaphragm depending on the model. This membrane separates the air chamber from the water chamber inside the tank.
Key characteristics include:

• Food-grade rubber material
• High elasticity and pressure resistance
• Anti-permeation properties to prevent air absorption into the water
• Long fatigue life even with frequent cycling

This separation is essential to maintain correct air pressure and prevent waterlogging.
2.3 Pre-Charged Air Chamber
The air chamber is pre-filled with a specific pressure at the factory, usually between 1.5 to 2.0 bar depending on the vessel size. The compressed air acts as the energy storage medium that stabilizes system pressure.
2.4 Water Connection and Flange
The bottom flange provides the inlet/outlet point to connect the tank to the pump system. In bladder models, the bladder is anchored at this flange.

3. How a CIMM Pressure Vessel Works
The operation is based on the balance between air pressure and water pressure inside the vessel.
Step-by-Step Working Principle

1. Pump delivers water into the tank, pushing the bladder or diaphragm upward.
2. Air in the upper chamber compresses, creating a counter-pressure.
3. As demand increases, water is released from the tank without immediately turning on the pump.
4. Pump only starts when pressure drops to the switch cut-in level.
5. Pump stops when the tank reaches maximum pressure (cut-out level).

This cycle ensures smooth delivery of water with minimal pump cycling.

4. Key Engineering Features of CIMM Pressure Vessels
4.1 Advanced Membrane Technology
CIMM invests heavily in membrane quality. Their EPDM and butyl membranes offer:

• Low permeability
• High tensile strength
• Long-term pressure stability
• Resistance to chlorinated water

4.2 High-Precision Pre-Charge System
The tank’s pre-charge air setting is critical for proper operation. CIMM tanks maintain stable pre-charge levels over long periods due to their airtight construction.
4.3 Anti-Corrosion Protection
CIMM uses internal coatings and epoxy linings to protect the steel from corrosion caused by water exposure, especially in UAE coastal environments.

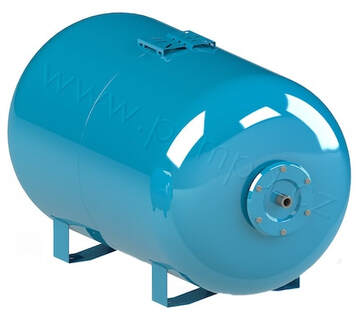

4.4 Multiple Orientations and Sizes
CIMM offers vertical and horizontal designs suitable for homes, villas, booster pump sets, irrigation systems, and industrial installations.

5. Performance Benefits of CIMM Pressure Vessels
A properly sized and installed CIMM vessel delivers several long-term advantages:

• Smooth and reliable water delivery
• Reduced electrical load on pumps
• Lower operational noise
• Increased pump lifespan due to fewer starts
• Greater energy efficiency in booster systems
• Improved system safety through pressure control

These benefits are especially important in high-rise buildings, villas, agricultural systems, and commercial installations.

6. Maintenance and Service Considerations
CIMM pressure vessels require minimal maintenance, but the following checks ensure optimal performance:

• Annual verification of pre-charge pressure
• Inspection for external corrosion
• Monitoring for unusual vibration or noise
• Checking flange integrity and membrane condition
• Ensuring pressure switch settings match system requirements

Bladder-type CIMM tanks allow easy replacement of the membrane if needed.

7. Applications of CIMM Pressure Vessels
CIMM vessels are commonly used in:

• Residential booster pumps
• Villa and building water pressure systems
• Multi-pump booster sets
• Irrigation systems
• Industrial water circulation and distribution
• HVAC chilled and hot water systems (when compatible with temperature ratings)

Their versatility makes them suitable for both domestic and heavy-duty applications.
A CIMM pressure vessel is a critical component for maintaining stable water pressure and enhancing pump efficiency in modern water systems. Its engineered steel body, high-quality bladder or diaphragm, reliable pre-charge system, and corrosion-resistant construction make it a dependable choice for residential, commercial, and industrial applications.
With proper sizing, installation, and maintenance, CIMM pressure vessels deliver long service life, energy savings, and consistent water performance across a wide range of operating conditions. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.
