A CIMM pressure vessel ensures stable water pressure, reduces pump cycling, and protects the entire water system from pressure fluctuations. Proper installation is essential for achieving long-term performance and preventing issues such as waterlogging, vibration, incorrect pressure, or premature bladder failure.
This guide provides a clear, step-by-step installation method suitable for domestic booster pumps, multi-pump systems, irrigation setups, and commercial pressure networks.
1. Pre-Installation Checks
Before starting the installation, verify the following:
1.1 Confirm Tank Size
Ensure the selected CIMM vessel is correctly sized based on pump flow rate, cut-in and cut-out pressure, and system demand.
1.2 Inspect the Vessel
Check for:
CIMM vessels come pre-charged from the factory, but the value must match the pump system’s cut-in pressure.
Rule: Pre-charge should typically be 0.2 bar below the cut-in pressure.
Adjust using a standard air pump or compressor.
2. Tools and Materials Required
3. Choosing the Correct Installation Location
A properly planned location ensures safety, ease of access, and long-term reliability.
3.1 Place on a Solid, Level Surface
CIMM pressure vessels must sit firmly to avoid vibration and structural stress.
3.2 Ensure Adequate Ventilation
Avoid tight cabinets without airflow. Heat buildup reduces membrane lifespan.
3.3 Accessibility for Maintenance
Ensure space for:
Exposure to high heat accelerates rubber membrane aging.
4. Installing the Pressure Vessel
4.1 Isolate the Pump System
Turn off the pump and close inlet and outlet valves to prevent water flow.
4.2 Connect the Vessel to the System
Typical connection points include:
4.3 Use a Flexible Hose (Recommended)
A flexible braided hose helps reduce vibration transfer and simplifies maintenance.
4.4 Apply Thread Sealant
Use Teflon tape or sealant on threaded connections to prevent leaks.
4.5 Tighten the Fittings
Secure the connection without over-tightening, which may damage the tank flange.
5. Integrating Sensors and Pressure Switches
Correct sensor placement is essential for accurate pressure control.
5.1 Pressure Switch
Install the switch near the vessel connection so it senses the tank’s pressure accurately.
5.2 Pressure Gauge
Install a gauge at the pump discharge or vessel connection to monitor system pressure during setup and operation.
5.3 Non-Return Valve
Ensure a functioning check valve is installed before the tank to prevent backflow.
6. System Startup Procedure
Once the vessel is installed, follow these steps.
6.1 Open System Valves
Gradually open inlet and outlet valves to allow water into the system.
6.2 Start the Pump
Turn on the pump and let the system build pressure to the preset cut-out level.
6.3 Check for Leaks
Inspect all joints, hose connections, and the vessel flange.
6.4 Monitor Pressure Stability
Observe:
Open a tap and observe how long water flows before the pump starts. This confirms the vessel is functioning correctly.
7. Special Installation Considerations

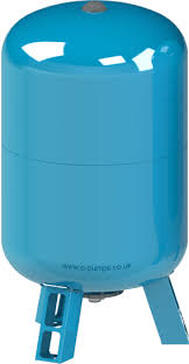

7.1 Vertical Vessels
Place directly on the floor or on a support bracket. Ensure the tank stands straight and stable.
7.2 Horizontal Vessels
Mount with proper saddles or brackets and ensure the pump does not rest on the tank.
7.3 Multi-Pump Booster Sets
Each system may require one large shared vessel or multiple smaller vessels. Ensure the vessel is sized for combined flow and cycling protection.
7.4 Hot Water and Chilled Water Applications
Ensure membrane and tank temperature ratings match the fluid being used.
8. Post-Installation Maintenance Tips
8.1 Check Pre-Charge Pressure Annually
Turn off the pump, drain the tank completely, and use a gauge to measure air pressure.
8.2 Inspect for Corrosion
Check paint condition, flange integrity, and the air valve.
8.3 Replace Bladder When Needed
Bladder-type vessels allow membrane replacement if pressure retention becomes inconsistent.
8.4 Ensure Pressure Switch Settings Remain Correct
Changes in cut-in and cut-out pressure affect cycling performance.
Installing a CIMM pressure vessel correctly is essential for stable pressure, reduced pump cycling, and long-term system reliability. By following a structured installation procedure—checking pre-charge, selecting the correct location, ensuring proper piping, and verifying pressure settings—you ensure the vessel performs at maximum efficiency for years. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.
This guide provides a clear, step-by-step installation method suitable for domestic booster pumps, multi-pump systems, irrigation setups, and commercial pressure networks.
1. Pre-Installation Checks
Before starting the installation, verify the following:
1.1 Confirm Tank Size
Ensure the selected CIMM vessel is correctly sized based on pump flow rate, cut-in and cut-out pressure, and system demand.
1.2 Inspect the Vessel
Check for:
- Any visible dents or paint damage
- Valve cap integrity
- Flange condition
- Proper labeling (capacity, working pressure, pre-charge value)
CIMM vessels come pre-charged from the factory, but the value must match the pump system’s cut-in pressure.
Rule: Pre-charge should typically be 0.2 bar below the cut-in pressure.
Adjust using a standard air pump or compressor.
2. Tools and Materials Required
- Pressure gauge for checking air pre-charge
- Adjustable wrench or spanner set
- Teflon tape or thread sealant
- Isolation valves
- Pipe fittings (brass or galvanized depending on system)
- Mounting brackets (for horizontal tanks if required)
- Flexible hose or rigid pipe connection
- Drain tray or drip protection (optional)
3. Choosing the Correct Installation Location
A properly planned location ensures safety, ease of access, and long-term reliability.
3.1 Place on a Solid, Level Surface
CIMM pressure vessels must sit firmly to avoid vibration and structural stress.
3.2 Ensure Adequate Ventilation
Avoid tight cabinets without airflow. Heat buildup reduces membrane lifespan.
3.3 Accessibility for Maintenance
Ensure space for:
- Pressure gauge checks
- Pre-charge adjustment
- Valve servicing
- Bladder replacement (for replaceable-bladder models)
Exposure to high heat accelerates rubber membrane aging.
4. Installing the Pressure Vessel
4.1 Isolate the Pump System
Turn off the pump and close inlet and outlet valves to prevent water flow.
4.2 Connect the Vessel to the System
Typical connection points include:
- Discharge line of the pump
- Manifold of a multi-pump booster set
- Return line in recirculation systems
- Irrigation manifold
- Pressure switch line for domestic booster sets
4.3 Use a Flexible Hose (Recommended)
A flexible braided hose helps reduce vibration transfer and simplifies maintenance.
4.4 Apply Thread Sealant
Use Teflon tape or sealant on threaded connections to prevent leaks.
4.5 Tighten the Fittings
Secure the connection without over-tightening, which may damage the tank flange.
5. Integrating Sensors and Pressure Switches
Correct sensor placement is essential for accurate pressure control.
5.1 Pressure Switch
Install the switch near the vessel connection so it senses the tank’s pressure accurately.
5.2 Pressure Gauge
Install a gauge at the pump discharge or vessel connection to monitor system pressure during setup and operation.
5.3 Non-Return Valve
Ensure a functioning check valve is installed before the tank to prevent backflow.
6. System Startup Procedure
Once the vessel is installed, follow these steps.
6.1 Open System Valves
Gradually open inlet and outlet valves to allow water into the system.
6.2 Start the Pump
Turn on the pump and let the system build pressure to the preset cut-out level.
6.3 Check for Leaks
Inspect all joints, hose connections, and the vessel flange.
6.4 Monitor Pressure Stability
Observe:
- Pump stop at the correct cut-out pressure
- Pump restart at the correct cut-in pressure
- Smooth operation without rapid cycling
Open a tap and observe how long water flows before the pump starts. This confirms the vessel is functioning correctly.
7. Special Installation Considerations
7.1 Vertical Vessels
Place directly on the floor or on a support bracket. Ensure the tank stands straight and stable.
7.2 Horizontal Vessels
Mount with proper saddles or brackets and ensure the pump does not rest on the tank.
7.3 Multi-Pump Booster Sets
Each system may require one large shared vessel or multiple smaller vessels. Ensure the vessel is sized for combined flow and cycling protection.
7.4 Hot Water and Chilled Water Applications
Ensure membrane and tank temperature ratings match the fluid being used.
8. Post-Installation Maintenance Tips
8.1 Check Pre-Charge Pressure Annually
Turn off the pump, drain the tank completely, and use a gauge to measure air pressure.
8.2 Inspect for Corrosion
Check paint condition, flange integrity, and the air valve.
8.3 Replace Bladder When Needed
Bladder-type vessels allow membrane replacement if pressure retention becomes inconsistent.
8.4 Ensure Pressure Switch Settings Remain Correct
Changes in cut-in and cut-out pressure affect cycling performance.
Installing a CIMM pressure vessel correctly is essential for stable pressure, reduced pump cycling, and long-term system reliability. By following a structured installation procedure—checking pre-charge, selecting the correct location, ensuring proper piping, and verifying pressure settings—you ensure the vessel performs at maximum efficiency for years. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.
