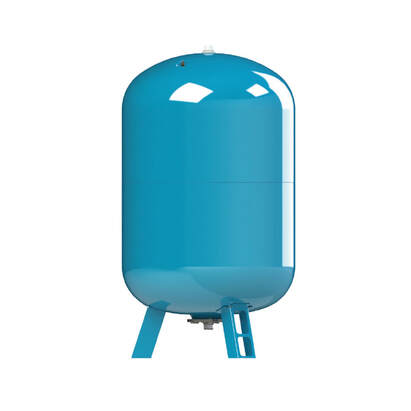

CIMM pressure vessels are engineered to maintain stable water pressure, reduce pump cycling, and protect water systems from pressure fluctuations. At the core of their performance is the internal membrane: either a bladder or a diaphragm. This membrane is responsible for separating air and water inside the tank, ensuring consistent pressure control and long-term reliability.
This technical overview explains how bladder and diaphragm systems work, the materials used, engineering advantages, and their importance in maintaining efficient water pressure.


1. The Purpose of Internal Membranes in Pressure Vessels
A pressure vessel works by compressing air as water enters the tank. For this process to function reliably, the air and water must remain completely separated. Without a membrane, air would dissolve into the water, reducing pressure over time and causing the tank to become waterlogged.
Bladder and diaphragm membranes prevent this by creating a permanent barrier inside the tank. This barrier ensures:

• Stable and predictable pressure
• Reduced pump start-stop cycles
• Prevention of air loss into the water
• Optimized pump energy consumption
• Long service life of the tank

CIMM designs its membranes with precision to achieve these performance goals.


2. What Is a Bladder in a CIMM Pressure Vessel?
A bladder is a fully enclosed, balloon-like rubber container inside the tank. Water enters and fills the bladder directly, while compressed air surrounds it within the steel shell.
Key Characteristics

• Water never touches the tank walls.
• The bladder expands and contracts as pressure changes.
• It is anchored to the flange at the bottom of the tank.
• It can be replaced in many CIMM models when worn out.

This makes bladder vessels suitable for systems requiring long-term cycling performance and easy maintenance.


3. What Is a Diaphragm in a CIMM Pressure Vessel?
A diaphragm is a rubber membrane that is fixed to the tank walls, dividing the vessel into two chambers: one for air and one for water.
Key Characteristics

• The diaphragm is not replaceable.
• Only a portion of the tank holds water; the rest contains air.
• The diaphragm moves flexibly upward and downward based on pressure.

CIMM diaphragm tanks are commonly used in domestic and commercial booster systems due to their simplicity and strong pressure stability.


4. Materials Used in CIMM Membranes
CIMM uses two primary membrane materials depending on the application:
4.1 EPDM Rubber

• High flexibility
• Excellent temperature resistance
• Suitable for potable water
• Long fatigue life

4.2 Butyl Rubber

• Extremely low permeability to air
• Superior long-term pressure retention
• Resistant to chlorinated water

These materials are manufactured according to strict standards to ensure safety, durability, and hygiene.


5. How Membrane Technology Controls Pressure
Internal membrane operation is based on water compression and air expansion:

1. The tank is pre-charged with a specific air pressure.
2. When the pump starts, water fills the bladder or pushes against the diaphragm.
3. As water volume increases, the membrane compresses the air chamber.
4. The compressed air creates a restoring force that maintains pressure in the system.
5. During water demand, the membrane releases water without immediately activating the pump.

This controlled exchange of pressure and volume creates a stable supply of water even under varying demand.


6. Engineering Advantages of CIMM Bladder and Diaphragm Systems
6.1 Air Retention Stability
The membrane prevents air from dissolving into water, enabling long-lasting pressure stability and reducing the need for frequent pre-charge adjustments.
6.2 Reduced Pump Cycling
Because the tank stores usable pressurized water, the pump runs less frequently, reducing mechanical wear and electrical consumption.
6.3 Protection Against Water Hammer
The elasticity of the membrane absorbs pressure spikes and hydraulic shock within the system.
6.4 Hygienic Water Contact
Water touches only the membrane, not the steel shell, ensuring cleanliness and compliance with potable water standards.
6.5 Increased Tank Lifespan
By preventing corrosion and keeping air and water separate, the membrane significantly extends the operating life of the tank.


7. Performance Factors Influencing Membrane Efficiency
For bladder and diaphragm systems to perform optimally, the following factors are critical:
7.1 Correct Pre-Charge Pressure
The factory-set pre-charge must be adjusted to match the system’s cut-in pressure.
7.2 Operating Temperature
Rubber membranes have specific temperature ranges. Exceeding these limits affects flexibility and lifespan.
7.3 Pump Cycling Frequency
High-frequency cycling leads to fatigue over time, making correct sizing essential.
7.4 Water Quality
Chlorine levels, pH, and mineral content affect membrane longevity.
7.5 Installation Orientation
Membranes must operate in the correct position to avoid stress concentration and uneven stretching.


8. Common Membrane Issues and Their Causes
Even high-quality membranes can face issues if system parameters are incorrect.
8.1 Loss of Air Pressure
Occurs when pre-charge is not checked regularly or when the tank develops a micro-leak.
8.2 Waterlogging
Happens when the bladder or diaphragm ruptures, allowing water to fill the air chamber.
8.3 Reduced Water Storage
Caused by low pre-charge or membrane stiffening due to age or temperature exposure.
8.4 Bladder Fatigue
Can occur after thousands of expansion cycles if the tank is undersized.
CIMM provides clear guidelines for proper sizing and installation to prevent these problems.


9. Why Membrane Technology Matters in Modern Water Systems
Bladder and diaphragm technology directly impacts the reliability, efficiency, and safety of water supply systems. In modern booster pump sets, well systems, irrigation networks, and domestic plumbing, pressure stability is essential to avoid pump failures, high electricity bills, and inconsistent water flow.
CIMM pressure vessels integrate advanced membrane engineering to provide:

• Long-term pressure stability
• Enhanced pump performance
• Reduced operational noise
• Lower maintenance costs

Membrane integrity is the heart of pressure vessel reliability.
Bladder and diaphragm technology is central to how CIMM pressure vessels stabilize water pressure and support efficient pump operation. These membranes create a sealed, flexible interface between air and water, ensuring consistent pressure control, reduced pump cycling, and long service life.
With superior materials, precise manufacturing, and advanced engineering principles, CIMM’s membrane designs offer high performance in residential, commercial, and industrial water systems. Understanding how these membranes function helps installers, technicians, and system designers select the right vessel and maintain it correctly for maximum reliability. For more info contact CIMM Pressure Vessel Suppliers in UAE or call us at +971 4 2522966.
