Vertical Multistage Pumps
Vertical Multistage Pump
Our Vertical Multistage Pumps are engineered to deliver efficient, high-performance solutions for a wide range of industrial and commercial applications. These pumps are designed for operations that require high-pressure delivery, with multiple impellers (stages) to boost efficiency and achieve consistent results.
- High Pressure Capabilities: Ideal for applications needing elevated pressures, such as water treatment, boiler feed, and industrial processes.
- Compact Design: The vertical design optimizes space, making it ideal for installations with limited space availability.
- Energy Efficient: Designed for maximum energy savings, reducing operating costs in long-term applications.
- Durable Construction: Built with corrosion-resistant materials to ensure longevity and dependability even in harsh conditions.
- Quiet Operation: Engineered to operate with minimal noise, making it suitable for environments where noise reduction is a priority.
- Versatile Applications: Perfect for water supply systems, irrigation, firefighting, and HVAC systems
The e-SV vertical multistage pump is a highly reliable and technologically advanced multipurpose pump. It’s capable of satisfying the needs of a wide variety of users and many different construction designs are available. The e-SV range feature models in eleven sizes with 1-3-5-10-15-22-33-46-66-92-125 m³/h nominal capacities.
DESIGN FEATURES
The e-SV is certified by WRAS, ACS and D.M. 174 for use with potable water.
SPECIFICATIONS
DESIGN FEATURES
- Balanced mechanical seal replaceable with out need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
- “O” Ring seat design to allow for simple outer sleeve dis-assembly
- Floating for self alignment replaceable diffuser wear ring (PPS Glass filled tecnopolymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
- Reduced impeller axial thrust for longer standard motor bearing life (17,500h)
- Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
- High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivated & electro-polished versions are available upon request.
The e-SV is certified by WRAS, ACS and D.M. 174 for use with potable water.
SPECIFICATIONS
- Delivery: up to 160 m³/h
- Head: up to 330 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 55 kW
- Maximum operating pressure: 40 bar
- Temperature of pumped liquid: from -30°C to 120°C (high temperature version up to 180°C available)
- Water Supply & Booster Systems: Ideal for providing pressurized water in both residential and commercial buildings.
- Irrigation Systems: Ensures consistent water flow for agricultural and landscape irrigation.
- Boiler Feed Systems: Reliable performance in thermal power plants and other systems requiring consistent pressurization.
- HVAC & Cooling Systems: Efficient operation in air conditioning and cooling water circulation systems.
Downloads
Need a Quote
Working on a project and need quoting? Contact us today for a free quote
Working on a project and need quoting? Contact us today for a free quote
Related Products
Lowara Horizontal Multistage

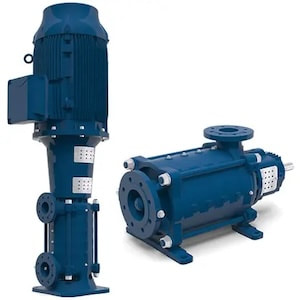

Multistage ring section pump

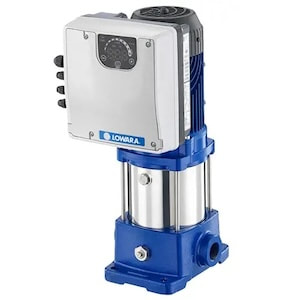

Close coupled vertical multistage pump
