Horizontal Pumps
As your trusted LOWARA Pump Supplier in the UAE, a leading provider of pumping solutions, we take pride in offering a comprehensive range of Lowara pumps to meet the diverse needs of industries, businesses, and individuals across the United Arab Emirates.
Lowara pumps are a reliable and efficient solution for various water transfer and circulation applications. These pumps are known for their high performance, durability, and innovative design, making them a popular choice for residential, commercial, and industrial settings
Lowara pumps are a reliable and efficient solution for various water transfer and circulation applications. These pumps are known for their high performance, durability, and innovative design, making them a popular choice for residential, commercial, and industrial settings

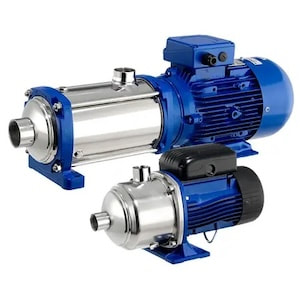

Wide range of Lowara stainless steel pumps for domestic and industrial applications. Available on request: “V” version with FPM seals for temperatures up to 110°C and “N” version completely made of AISI 316 stainless steel.
Specifications
Specifications
- Delivery: up to 31 m³/h
- Head: up to 30 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 3 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 110 °C

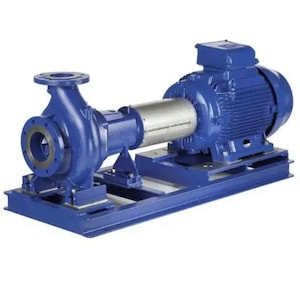

The new Lowara e-NSC series is a centrifugal end-suction electro-pump with single-stage (except the two-stage NSC2 models), axial flanged suction port, radial flanged discharge and horizontal shaft. The e-NSC pumps have cast iron casing and impeller as standard but are also available in a wide range of materials, from bronze to duplex stainless steel, to allow for various pumping needs.
The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with a back pull-out configuration (impeller, adapter, and motor can be extracted without disconnecting the pump body from the piping system).
• Maximum delivery: up to 640 m3/h for 2 poles range.
Maximum head: up to 154 m for 2 poles range.
Hydraulic performance compliant with ISO 9906:2012 (Grade 3B).
Fluid temperature range:
- standard version (with mechanical seal BQ1EGG-WA and EPDM gasket) -25 to +120 °C.
- versions on request (depending on mechanical seal and gasket) -20* or -25 to +120 or +140 °C.
Maximum operating pressure:
- standard version with mechanical seal BQ1EGG-WA and cast iron casing: 16 bar @ 90 °C and 10 bar @ 120 °C
- version with other mechanical seal and casing of cast iron: 16 bar @ 120 °C and 14,9 bar @ 140 °C
cast ductile iron: 16 bar @ 120 °C and 15,6 bar @ 140 °C stainless steel: 16 bar @ 50 °C and 14,8 bar @ 140 °C duplex: 16 bar @ 140 °C
Motor specifications
Squirrel cage in short circuit enclosed construction with external ventilation (TEFC).
• 2-pole and 4-pole ranges.
• IP55 protection degree as motor (EN 60034-5), IPX5 as electro-pump (EN 60529).
• Performances according to EN 60034-1.
• IE3 efficiency level (three-phase 0,75 to 375 kW). • 155 (F) insulation class.
• Standard voltage:
1 x 220-240 V 50 Hz for power up to 2,2 kW
3 x 220-240/380-415 V 50 Hz for power up to 3 kW 3 x 380-415/660-690 V 50 Hz for power above 3 kW
• Maximum ambient temperature: 40 °C.
The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with a back pull-out configuration (impeller, adapter, and motor can be extracted without disconnecting the pump body from the piping system).
• Maximum delivery: up to 640 m3/h for 2 poles range.
Maximum head: up to 154 m for 2 poles range.
Hydraulic performance compliant with ISO 9906:2012 (Grade 3B).
Fluid temperature range:
- standard version (with mechanical seal BQ1EGG-WA and EPDM gasket) -25 to +120 °C.
- versions on request (depending on mechanical seal and gasket) -20* or -25 to +120 or +140 °C.
Maximum operating pressure:
- standard version with mechanical seal BQ1EGG-WA and cast iron casing: 16 bar @ 90 °C and 10 bar @ 120 °C
- version with other mechanical seal and casing of cast iron: 16 bar @ 120 °C and 14,9 bar @ 140 °C
cast ductile iron: 16 bar @ 120 °C and 15,6 bar @ 140 °C stainless steel: 16 bar @ 50 °C and 14,8 bar @ 140 °C duplex: 16 bar @ 140 °C
Motor specifications
Squirrel cage in short circuit enclosed construction with external ventilation (TEFC).
• 2-pole and 4-pole ranges.
• IP55 protection degree as motor (EN 60034-5), IPX5 as electro-pump (EN 60529).
• Performances according to EN 60034-1.
• IE3 efficiency level (three-phase 0,75 to 375 kW). • 155 (F) insulation class.
• Standard voltage:
1 x 220-240 V 50 Hz for power up to 2,2 kW
3 x 220-240/380-415 V 50 Hz for power up to 3 kW 3 x 380-415/660-690 V 50 Hz for power above 3 kW
• Maximum ambient temperature: 40 °C.
Welcome to the world of Lowara Pumps – where cutting-edge technology meets unparalleled performance. Our range of pumps is crafted with precision and engineered for excellence, offering a reliable solution for your water transfer and circulation needs.
Applications:
- Efficiency Unleashed: Lowara pumps are designed to maximize energy efficiency, ensuring optimal performance while minimizing operational costs. Experience the perfect balance between power and economy.
- Reliability Redefined: Trust in the durability of Lowara pumps. Built with high-quality materials and advanced engineering, these pumps deliver consistent and reliable performance, even in the most demanding environments.
- Innovative Design: Our pumps feature state-of-the-art design elements that set them apart from the rest. From compact dimensions for space-saving installations to user-friendly controls, Lowara pumps embody innovation at every level.
- Versatility at Its Core: Whether you need a pump for residential, commercial, or industrial applications, Lowara has a solution tailored to your specific requirements. Choose from a diverse range of pumps designed to handle various fluids and conditions.
- Easy Installation and Maintenance: We understand the value of your time. That's why Lowara pumps are designed with user-friendly installation procedures and straightforward maintenance, ensuring minimal downtime and hassle-free operation.
- Environmental Responsibility: Lowara is committed to sustainability. Our pumps are designed with a focus on environmental responsibility, incorporating features that contribute to energy conservation and reduced environmental impact.
Applications:
- Residential Water Supply
- Commercial Buildings
- Industrial Processes
- Irrigation Systems
- HVAC Systems
- Water Treatment
Why Lowara Pumps?
- Efficiency: Lowara pumps are synonymous with energy efficiency, allowing you to achieve high performance while optimizing operational costs.
- Reliability: Backed by a legacy of reliability, Lowara pumps are engineered to endure challenging conditions, providing longevity and peace of mind.
- Innovation: Stay ahead in fluid handling technology. Lowara pumps incorporate innovative design elements that set industry standards.
- Environmental Responsibility: By choosing Lowara pumps, you contribute to environmentally responsible fluid handling practices, aligning with our shared commitment to sustainability.
Need a Quote
Working on a project and need quoting? Contact us today for a free quote
Working on a project and need quoting? Contact us today for a free quote
Related Products

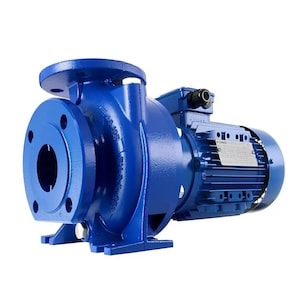

End Suction Pumps

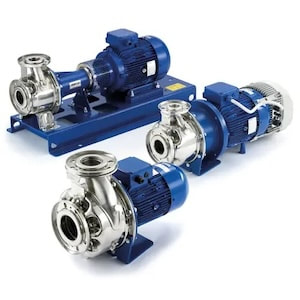

Stainless Steel 316 Pumps

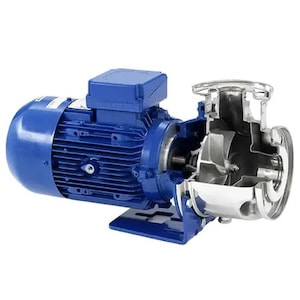

Open Impeller Pumps
