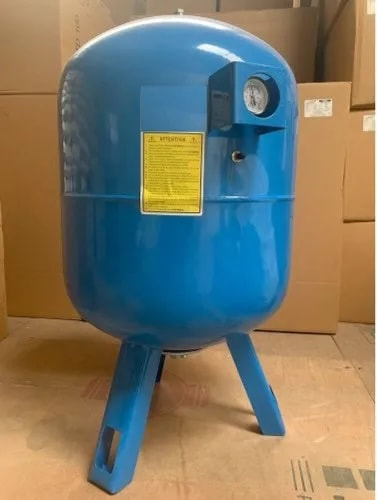

Cold water pressure vessels are essential components in water systems that ensure stable water pressure, reduce the frequency of pump cycling, and enhance the efficiency of the system. Here's a breakdown of how they function:

1. Initial Pressurization
When the cold water pressure vessel is first installed, it is pre-charged with air. This air is held in the air chamber (which is separated from the water chamber by a bladder or diaphragm). The pressure inside the vessel is typically set at a specific level, usually 2 PSI below the pump's cut-in pressure.

2. Water Entry and Pressure Build-Up
As water enters the pressure vessel through the inlet port (usually connected to a pump or water supply), it pushes against the bladder or diaphragm. The bladder or diaphragm is flexible, allowing it to expand as water fills the vessel.

• Air Compression: As the bladder or diaphragm expands, it compresses the air in the air chamber. The more water that enters the vessel, the higher the pressure inside becomes. This stored energy in the compressed air helps maintain water pressure in the system.

3. Maintaining Pressure
The bladder or diaphragm acts as a barrier, separating the water from the air. As the water fills the tank, the air in the chamber is compressed, storing potential energy. This pressure is what helps keep the water in the system under a consistent, reliable pressure.

• Constant Pressure: When the system requires water, such as when a faucet or valve is opened, the pressure vessel releases the stored water from the tank. The compressed air in the air chamber pushes the water out of the vessel through the outlet port.

4. Water Use (Pressure Drop)
When water is used in the system (e.g., when someone turns on a faucet), the pressure in the system drops. The stored water inside the pressure vessel, which is under pressure, is then released to maintain the pressure in the system. As water leaves the vessel, the bladder or diaphragm contracts and the air chamber expands to maintain the system's pressure.

• Reduced Pump Cycling: With a pressure vessel in place, the pump does not need to turn on every time there is a slight drop in water pressure. Instead, the vessel releases water from its storage to make up for the pressure loss. This reduces wear and tear on the pump and prevents frequent cycling, which helps extend the pump's lifespan.

5. Pump Activation (Pressure Recovery)
Once the water level inside the vessel is depleted or when the pressure drops to a certain level, the pump is activated to replenish the vessel with water. As the water enters the vessel again, it pushes the air in the air chamber and re-compresses it, building up pressure once more.

• Pump Shutoff: When the pressure reaches the set cut-off point (often 2 PSI higher than the pre-charged pressure), the pump shuts off. This ensures that the system stays within the desired pressure range and prevents over-pressurization.

​
6. Continuous Pressure Regulation
This process of filling and emptying the pressure vessel continues, with the bladder or diaphragm acting as a flexible barrier to maintain pressure stability. As long as the system needs water, the pressure vessel will work to supply it without requiring constant pump activation.

• Pressurized Water for Demand: The vessel stores a reserve of water under pressure, ready to supply water when demand increases (e.g., when multiple fixtures are used simultaneously).

Key Takeaways:

• Compression of Air: Water entering the vessel compresses the air in the air chamber, storing energy.
• Constant Pressure: This stored energy helps maintain stable water pressure by releasing water when demand increases.
• Pump Efficiency: The vessel reduces the number of times the pump cycles, increasing efficiency and extending pump life.
• Water Delivery: The pressure vessel ensures water is available on demand, keeping the system balanced.

In summary, cold water pressure vessels work by storing pressurized water and releasing it when needed, ensuring a consistent flow of water at the right pressure. They optimize pump efficiency and reduce wear, contributing to the overall reliability and longevity of the water system. For more info contact Wates Distributors or call us at +971 4 2522966.
