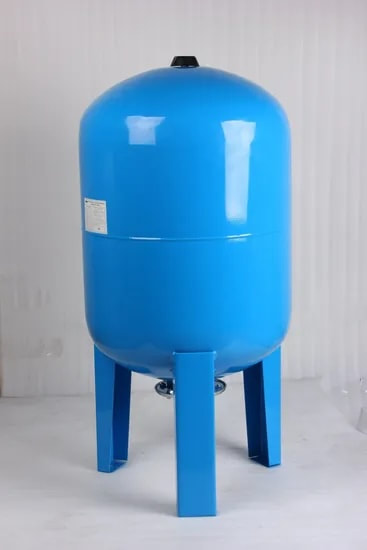

Cold water pressure vessels are designed to maintain consistent water pressure and enhance system efficiency. They have several important components that work together to store water under pressure and release it when needed. Here’s an overview of the key components:

1. Tank (Shell)

• Material: Typically made of steel, fiberglass, or composite materials.
• Function: The tank is the main body that holds the water under pressure. It is designed to be durable and resistant to the pressures and environmental conditions of the system.
• Shape: Most pressure vessels are cylindrical, though some may have other shapes depending on their application.

2. Bladder or Diaphragm

• Bladder: A flexible rubber or synthetic material that separates the water and air chambers. It inflates and deflates as water enters or leaves the tank, helping to maintain the desired pressure.
• Diaphragm: Similar to a bladder but made from a solid sheet of material, it also separates the water and air chambers. This type of design is used for higher durability and longer service life.
• Function: These components help maintain pressure by allowing the air chamber to expand or contract as water is drawn or added to the system.

3. Air Chamber

• Function: The air chamber is an empty space inside the vessel that is separated from the water by the bladder or diaphragm. When the vessel is pressurized, the air in this chamber is compressed, storing energy to push water out when the system requires it.
• Pressure Maintenance: The air chamber ensures that there is enough air pressure to force water out of the vessel when the demand increases, thus keeping the system’s pressure stable.

4. Inlet/Outlet Ports

• Inlet Port: The connection point through which water enters the pressure vessel. This is typically connected to the water supply or pump.
• Outlet Port: The point where water exits the vessel and enters the plumbing system. This allows pressurized water to be delivered to faucets, irrigation systems, or other points of use.
• Function: These ports allow the flow of water into and out of the vessel while maintaining internal pressure. They ensure that the water is stored efficiently and delivered when needed.

5. Pre-Charge Valve (Air Valve)

• Function: This valve allows for the adjustment of air pressure within the air chamber. Before installation, the air pressure in the tank is typically set to 2 PSI below the pump's cut-in pressure.
• Maintenance: Over time, the air pressure may need to be adjusted to ensure the vessel operates correctly. The pre-charge valve provides a means to do so.

6. Pressure Relief Valve

• Function: This valve helps protect the pressure vessel from over-pressurization. If the pressure inside the tank exceeds the designed safe limit, the relief valve opens to release excess pressure, preventing damage to the vessel.
• Importance: It acts as a safety feature, ensuring that the vessel can operate without risk of rupture or failure due to excessive pressure.

7. Pressure Switch (Optional)

• Function: This device automatically activates or deactivates the pump based on the pressure in the system. It helps maintain a consistent pressure level by turning the pump on when the pressure falls below a set threshold and turning it off when the pressure is sufficient.
• Integration: The pressure switch works in tandem with the pressure vessel to ensure the system maintains the desired pressure levels.

8. Support Legs or Mounting Hardware

• Function: These are used to support the pressure vessel and keep it securely in place. Depending on the system, mounting hardware can be included to ensure the vessel remains stable during operation.

9. Inspection and Maintenance Ports

• Function: Some pressure vessels come with ports designed for inspection or maintenance. These can be used to check the interior, adjust air pressure, or flush the system.

The key components of a cold water pressure vessel work together to store water under pressure and maintain a stable pressure within a water system. Each component, from the tank and bladder to the air chamber and inlet/outlet ports, plays a crucial role in ensuring optimal system performance, energy efficiency, and longevity of the pressure vessel. Regular maintenance of these components can help ensure smooth operation and prevent costly system failures. For more info contact Wates Distributors or call us at +971 4 2522966.
