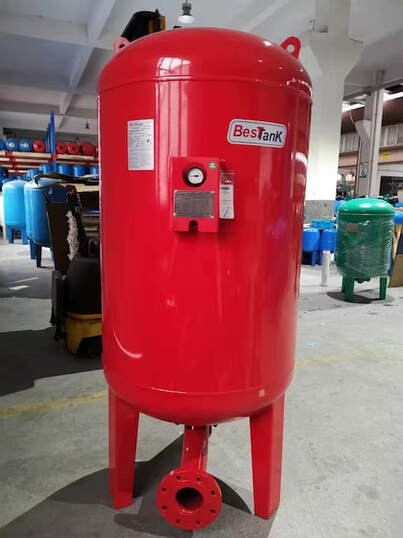

Cold water pressure vessels are designed to store water under pressure and release it as needed, ensuring consistent pressure in water systems. The efficiency and longevity of these vessels depend on several key components that work together to maintain the system's performance. Below are the essential components of cold water pressure vessels:

1. Tank (Shell)

• Function: The outer body of the pressure vessel that holds water under pressure. The tank is typically made from strong materials like steel, fiberglass, or composite materials to withstand high pressure and prevent deformation or rupture.
• Purpose: The tank’s main function is to provide a durable, sealed container for storing water under pressure. It ensures the internal components are protected and that the pressure is distributed evenly throughout the vessel.

2. Bladder or Diaphragm

• Bladder: A flexible, rubber or synthetic material that separates the water and air chambers inside the vessel. The bladder inflates as water enters and deflates as water is used.
• Diaphragm: An alternative to the bladder, a diaphragm is a flexible membrane that performs the same function but does not move as freely as the bladder. It is used to separate the air and water chambers.
• Function: The bladder or diaphragm prevents water from directly contacting the air chamber. It also compresses and decompresses the air as water is added or used, maintaining the pressure within the system.
• Purpose: To create a physical barrier between water and air, ensuring pressure is maintained and preventing contamination between the two chambers.

3. Air Chamber

• Function: The air chamber is a space within the vessel that holds compressed air. It is separated from the water by the bladder or diaphragm.
• Purpose: As water enters the vessel, it compresses the air in the air chamber. The compressed air helps push the water out of the vessel when needed, maintaining system pressure. The air chamber stores energy in the form of compressed air and releases it when demand increases.
• Operation: As water is drawn from the system, the air chamber expands, and the bladder or diaphragm contracts, releasing stored water and maintaining a steady water flow.

4. Inlet and Outlet Ports

• Inlet Port: The point where water enters the pressure vessel, usually from a pump or water supply.
• Outlet Port: The point where pressurized water exits the vessel and flows to the rest of the plumbing system.
• Function: These ports allow water to flow in and out of the pressure vessel. The inlet port enables water to enter when the pump activates, while the outlet port releases pressurized water when it is needed, such as when a faucet is turned on.

5. Pre-Charge Valve (Air Valve)

• Function: The pre-charge valve is used to adjust and maintain the air pressure in the air chamber of the pressure vessel.
• Purpose: It is essential to ensure that the air pressure is set correctly for the system. Typically, the air pressure is set 2 PSI below the pump’s cut-in pressure to ensure proper vessel operation. Over time, air can escape, and the pressure may need to be adjusted.
• Operation: The valve allows for adding or releasing air to maintain the required pressure in the vessel. This is typically done during installation or maintenance.

6. Pressure Relief Valve

• Function: A safety device designed to open if the pressure inside the vessel exceeds the safe operating limit.
• Purpose: The pressure relief valve prevents over-pressurization, which could damage the vessel or the entire water system. It helps protect the system by releasing excess pressure before it causes harm.
• Operation: When internal pressure becomes too high, the valve opens to release excess pressure, restoring the vessel to a safe operational level.

7. Bladder/Diaphragm Mounting and Support System

• Function: This system holds the bladder or diaphragm in place inside the vessel, ensuring it functions correctly without slipping or becoming damaged.
• Purpose: It provides stability and ensures that the bladder or diaphragm moves smoothly as the vessel fills and empties.
• Operation: The mounting system ensures the bladder or diaphragm remains in position during the operation of the pressure vessel and doesn't get overstretched or damaged.

8. Tank Liner (In Some Models)

• Function: Some pressure vessels include a liner to protect the internal components, particularly in vessels that are exposed to harsh environments or corrosive water.
• Purpose: The liner helps prevent corrosion and extends the life of the tank by providing a protective barrier between the water and the tank material.
• Operation: The liner acts as an additional safeguard to prevent damage caused by the water’s chemical composition or external environmental factors.

9. Inspection and Maintenance Ports

• Function: These ports provide access for inspection, maintenance, or air pressure adjustment.
• Purpose: They allow users or professionals to check internal components such as the bladder/diaphragm, air pressure, or other parts of the vessel for wear, damage, or inefficiency.
• Operation: The ports are used during regular maintenance to keep the system in good working condition. They allow for safe, efficient inspection and repairs when necessary.

Cold water pressure vessels are composed of several key components that work together to store pressurized water and maintain consistent system pressure. Each component serves a distinct function, from the durable tank shell and bladder/diaphragm to the air chamber and pre-charge valve, ensuring the system remains efficient and reliable. Regular inspection and maintenance of these components are critical to ensuring optimal performance, extending the lifespan of the vessel, and minimizing downtime. For more info contact Wates Distributors or call us at +971 4 2522966.
