Cold water pressure vessels are essential components in water systems that help maintain consistent pressure, reduce pump wear, and improve system efficiency. They function by storing water under pressure and releasing it as needed to keep water pressure stable across the system. Below is a breakdown of the key components and functions of cold water pressure vessels:

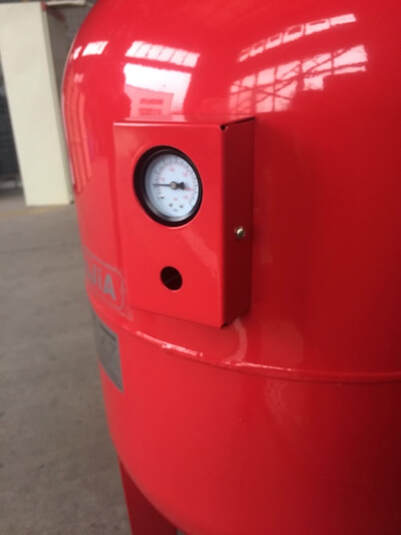

Key Components of Cold Water Pressure Vessels
1. Tank (Shell)

• Function: The outer structure of the pressure vessel that holds water under pressure. The tank is usually made of durable materials like steel, fiberglass, or composite materials to withstand internal pressure.
• How it Works: As water enters the vessel, the tank stores it under pressure, which is maintained by the air chamber and flexible internal components.

2. Bladder or Diaphragm

• Bladder: A flexible, rubber or synthetic component that separates the water and air chambers inside the pressure vessel. The bladder inflates and deflates as water enters or exits the vessel.
• Diaphragm: An alternative to the bladder, a diaphragm is a flexible membrane that also separates the water and air chambers. It does not expand and contract like a bladder but moves back and forth as water fills and empties the vessel.
• Function: The bladder or diaphragm compresses the air in the air chamber as water enters the vessel, storing energy to maintain pressure in the system. It also prevents water from coming into direct contact with the air, preserving the vessel’s integrity.

3. Air Chamber

• Function: The air chamber is a space inside the pressure vessel that holds compressed air. It is separated from the water by the bladder or diaphragm.
• How it Works: When water enters the vessel, it compresses the air in the air chamber. The air pushes back to maintain pressure as water is drawn from the vessel, ensuring that the system continues to receive water at a steady pressure.

4. Inlet and Outlet Ports

• Inlet Port: The point where water enters the pressure vessel from the pump or water supply system.
• Outlet Port: The point where pressurized water exits the vessel to supply the plumbing system.
• Function: The inlet port allows water to enter the vessel when the pump is on, while the outlet port allows water to flow out when there is demand. These ports ensure water can move in and out of the vessel while maintaining internal pressure.

5. Pre-Charge Valve (Air Valve)

• Function: This valve is used to adjust and maintain the air pressure in the air chamber. The pre-charge valve ensures that the air pressure is set correctly, typically 2 PSI below the cut-in pressure of the pump.
• How it Works: Before installation, the pressure vessel is pre-charged with air. The air pressure must be checked and adjusted regularly to ensure it stays within the optimal range for proper system operation.

6. Pressure Relief Valve

• Function: This safety valve opens if the internal pressure of the vessel exceeds a set threshold, preventing over-pressurization and protecting the system.
• How it Works: If the pressure inside the vessel becomes too high, the pressure relief valve opens to release excess pressure. This prevents potential damage to the vessel, pipes, or other components.

How Cold Water Pressure Vessels Work
1. Water Enters the Vessel
When the water system is pressurized, water from the pump or water supply enters the pressure vessel through the inlet port. As water fills the vessel, it pushes against the bladder or diaphragm, which compresses the air in the air chamber.

• Bladder or Diaphragm Expansion: As water enters, the bladder or diaphragm stretches to accommodate the incoming water while keeping the air separated. The compressed air stores energy and provides pressure in the system.

2. Maintaining Pressure
The air chamber acts as a reservoir of compressed air that maintains system pressure. As the bladder or diaphragm expands, the air pressure increases, and the vessel stores this energy. The vessel now holds water under pressure, ready to supply the system when needed.

• Stable Pressure: The system relies on the vessel’s stored energy to maintain consistent water pressure. The water that’s stored under pressure helps avoid pressure fluctuations, ensuring a steady flow of water.

3. Water Use (Pressure Drop)
When water is drawn from the system, such as when a faucet is opened or a valve is turned on, the system’s pressure drops. As the pressure decreases, the bladder or diaphragm contracts, releasing water from the vessel and pushing it out to maintain pressure.

• Air Assists Water Flow: The compressed air in the air chamber pushes the water out of the vessel, keeping the system pressurized and providing water to the plumbing fixtures.
• Reduced Pump Cycling: By using the stored water, the vessel reduces the frequency with which the pump needs to turn on, preventing unnecessary wear and tear on the pump.

4. Pump Activation (Pressure Recovery)
Once the water inside the vessel is depleted or the pressure falls below a set point, the pump kicks on to replenish the vessel. The pump draws water from the source and fills the vessel, compressing the air in the air chamber again.

• Pressure Recovery: When the pressure inside the vessel reaches the desired level, the pump shuts off, and the cycle repeats. This ensures that the system maintains consistent water pressure, and the pump is only used when necessary.

5. Maintaining System Balance
The pressure vessel helps to smooth out fluctuations in pressure by providing a reserve of water under pressure. This reduces the load on the pump, prevents constant cycling, and ensures that water is available on demand, without significant drops in pressure.

How Cold Water Pressure Vessels Function

• Water enters the vessel, compressing the air in the air chamber via the bladder or diaphragm.
• Compressed air stores energy, maintaining system pressure and pushing water out when needed.
• Water is used by the system, and the vessel releases water to maintain stable pressure.
• Pump activation restores the water pressure when the system’s pressure drops below a set point.
• Consistent pressure is maintained across the system, reducing pump cycling and ensuring smooth operation.

Cold water pressure vessels play an essential role in providing consistent water pressure, reducing wear on pumps, and ensuring that water is available on demand without excessive cycling. Their key components, including the bladder/diaphragm, air chamber, and pressure relief valve, work together to ensure efficient and reliable system performance. For more info contact Wates Distributors or call us at +971 4 2522966.
