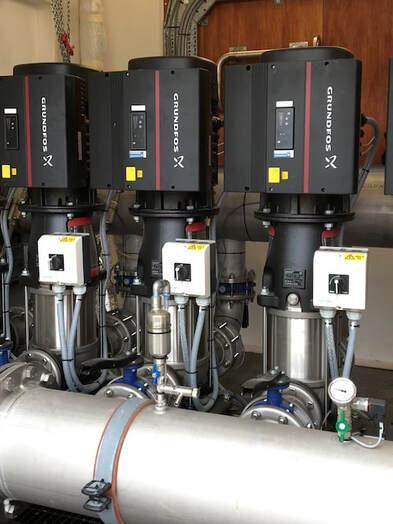

Proper pipe support and vibration control are critical for the long-term reliability of booster pump systems. Many recurring pump problems—such as mechanical seal failure, bearing damage, noise, leaks, and cracked pipes—are not caused by pump defects, but by unsupported or poorly supported piping that transfers mechanical stress and vibration directly into the pump.
This article explains why pipe support and vibration control matter, how vibration develops, and how to design and install effective support systems for booster pump installations.
Why Pipe Support and Vibration Control Are Essential
Booster pumps generate dynamic forces during operation due to rotating components and fluctuating flow. If suction and discharge pipes are not properly supported, these forces are transmitted into the piping network and reflected back into the pump.
This leads to:
How Vibration Develops in Booster Pump Systems
Mechanical Vibration from the Pump
All rotating machinery produces some vibration. If not absorbed or isolated, this vibration travels through rigid piping into the building structure.
Hydraulic-Induced Vibration
Sudden changes in flow direction, turbulent flow, cavitation, or air pockets create pressure pulsations that cause pipes to vibrate.
Resonance in Poorly Supported Pipes
Long, unsupported pipe spans act like tuning forks. If pump operating frequency matches the natural frequency of the pipe, vibration is amplified.
Transmission of Vibration Through Rigid Connections
Rigid connections between pump and piping allow vibration to pass directly into the system, accelerating wear and noise.
Importance of Proper Pipe Support in Booster Pump Systems
Preventing Mechanical Stress on the Pump
Unsupported pipes apply bending forces and weight loads to the pump casing. Over time, this distorts the casing and misaligns the shaft, damaging seals and bearings.
Maintaining Pipe Alignment
Proper supports keep pipes aligned with the pump flanges, ensuring stress-free connections and leak-free operation.
Protecting Valves and Instruments
Valves, gauges, and sensors installed on vibrating pipes experience accelerated wear and inaccurate readings.
Reducing Noise Transmission
Well-supported pipes reduce structure-borne noise that travels into walls, floors, and occupied spaces.
Types of Pipe Supports Used in Booster Pump Systems
Rigid Supports
Rigid supports hold pipes in a fixed position and are typically used to carry pipe weight. They must be correctly located to avoid over-constraining thermal expansion.
Spring Supports and Hangers
Spring supports allow controlled vertical movement due to thermal expansion while maintaining load support. These are useful in systems with temperature variation.
Guides and Anchors
Guides restrict pipe movement in one direction while allowing movement in others. Anchors lock pipes in position to control expansion direction.
Proper use of guides and anchors prevents stress buildup.
Vibration Control Measures for Booster Pump Systems
Flexible Connectors at Pump Nozzles
Flexible connectors or expansion joints installed at pump suction and discharge isolate vibration and prevent pipe loads from being transferred to the pump.
These must be correctly sized and installed to avoid misalignment.
Anti-Vibration Mounts and Inertia Bases
Mounting pumps on anti-vibration mounts or inertia bases reduces transmission of vibration to the floor and connected piping.
Avoiding Pipe Resonance
Support spacing should be designed to avoid resonance with pump operating frequencies. Shorter spans reduce vibration amplification.
Proper Valve Selection and Operation
Valves that operate smoothly reduce pressure pulsations and hydraulic shock, minimizing vibration.
Common Pipe Support and Vibration Control Mistakes
Best Practices for Pipe Support in Booster Pump Installations
Support Pipes Independently of the Pump
Suction and discharge pipes must be supported before and after the pump. The pump should not carry pipe weight.
Place Supports Close to Pump Connections
Supports located near pump nozzles reduce bending moments and protect the pump casing.
Allow for Thermal Expansion
Design supports to accommodate expansion and contraction without stressing pipes or equipment.
Inspect Supports During Maintenance
Pipe supports can loosen or corrode over time. Regular inspection ensures continued effectiveness.
Benefits of Proper Pipe Support and Vibration Control
When pipe support and vibration control are properly designed and installed, booster pump systems benefit from:
This article explains why pipe support and vibration control matter, how vibration develops, and how to design and install effective support systems for booster pump installations.
Why Pipe Support and Vibration Control Are Essential
Booster pumps generate dynamic forces during operation due to rotating components and fluctuating flow. If suction and discharge pipes are not properly supported, these forces are transmitted into the piping network and reflected back into the pump.
This leads to:
- Misalignment of pump shafts
- Excessive vibration
- Loosening of flanges and bolts
- Mechanical seal and bearing failure
- Noise transmission into the building
- Cracked pipes and fittings
How Vibration Develops in Booster Pump Systems
Mechanical Vibration from the Pump
All rotating machinery produces some vibration. If not absorbed or isolated, this vibration travels through rigid piping into the building structure.
Hydraulic-Induced Vibration
Sudden changes in flow direction, turbulent flow, cavitation, or air pockets create pressure pulsations that cause pipes to vibrate.
Resonance in Poorly Supported Pipes
Long, unsupported pipe spans act like tuning forks. If pump operating frequency matches the natural frequency of the pipe, vibration is amplified.
Transmission of Vibration Through Rigid Connections
Rigid connections between pump and piping allow vibration to pass directly into the system, accelerating wear and noise.
Importance of Proper Pipe Support in Booster Pump Systems
Preventing Mechanical Stress on the Pump
Unsupported pipes apply bending forces and weight loads to the pump casing. Over time, this distorts the casing and misaligns the shaft, damaging seals and bearings.
Maintaining Pipe Alignment
Proper supports keep pipes aligned with the pump flanges, ensuring stress-free connections and leak-free operation.
Protecting Valves and Instruments
Valves, gauges, and sensors installed on vibrating pipes experience accelerated wear and inaccurate readings.
Reducing Noise Transmission
Well-supported pipes reduce structure-borne noise that travels into walls, floors, and occupied spaces.
Types of Pipe Supports Used in Booster Pump Systems
Rigid Supports
Rigid supports hold pipes in a fixed position and are typically used to carry pipe weight. They must be correctly located to avoid over-constraining thermal expansion.
Spring Supports and Hangers
Spring supports allow controlled vertical movement due to thermal expansion while maintaining load support. These are useful in systems with temperature variation.
Guides and Anchors
Guides restrict pipe movement in one direction while allowing movement in others. Anchors lock pipes in position to control expansion direction.
Proper use of guides and anchors prevents stress buildup.
Vibration Control Measures for Booster Pump Systems
Flexible Connectors at Pump Nozzles
Flexible connectors or expansion joints installed at pump suction and discharge isolate vibration and prevent pipe loads from being transferred to the pump.
These must be correctly sized and installed to avoid misalignment.
Anti-Vibration Mounts and Inertia Bases
Mounting pumps on anti-vibration mounts or inertia bases reduces transmission of vibration to the floor and connected piping.
Avoiding Pipe Resonance
Support spacing should be designed to avoid resonance with pump operating frequencies. Shorter spans reduce vibration amplification.
Proper Valve Selection and Operation
Valves that operate smoothly reduce pressure pulsations and hydraulic shock, minimizing vibration.
Common Pipe Support and Vibration Control Mistakes
- Allowing piping weight to rest on pump nozzles
- Installing long unsupported pipe spans
- Rigidly connecting pipes without flexibility
- Ignoring thermal expansion effects
- Installing flexible connectors incorrectly
- Poorly tightened pipe clamps
Best Practices for Pipe Support in Booster Pump Installations
Support Pipes Independently of the Pump
Suction and discharge pipes must be supported before and after the pump. The pump should not carry pipe weight.
Place Supports Close to Pump Connections
Supports located near pump nozzles reduce bending moments and protect the pump casing.
Allow for Thermal Expansion
Design supports to accommodate expansion and contraction without stressing pipes or equipment.
Inspect Supports During Maintenance
Pipe supports can loosen or corrode over time. Regular inspection ensures continued effectiveness.
Benefits of Proper Pipe Support and Vibration Control
When pipe support and vibration control are properly designed and installed, booster pump systems benefit from:
- Reduced noise and vibration
- Extended seal and bearing life
- Stable pressure control
- Reduced leakage and pipe failure
- Lower maintenance costs
- Improved overall system reliability
