Commissioning is the most critical stage of a booster pump installation. A booster pump that is correctly installed but poorly commissioned will suffer from unstable pressure, frequent trips, noise, vibration, and premature failure. Many long-term pump problems originate not from design or installation, but from skipped or incomplete commissioning procedures.
This guide explains how to properly commission a booster pump system after installation, ensuring safe operation, stable pressure, and long-term reliability.


Why Proper Commissioning Is Essential
Commissioning verifies that:

• The pump operates within design parameters
• Hydraulic, electrical, and control systems work together correctly
• Safety and protection devices function as intended
• Pressure is stable under real operating conditions

Without commissioning, hidden issues remain undetected until they cause failures under load.

Step 1: Pre-Commissioning Visual and Mechanical Checks
Before applying power, perform a complete physical inspection.
Check that:

• Pump is securely mounted on a level foundation
• Baseplate bolts are tightened evenly
• Piping is independently supported and not stressing the pump
• Suction and discharge valves are correctly installed
• Check valves are oriented correctly
• Pressure vessel is installed and isolated correctly
• All flanges and fittings are tight
• No visible leaks or mechanical damage exist

Never rush past this step—most early failures start here.

Step 2: Verify Suction Conditions
Proper suction is critical before starting the pump.
Ensure that:

• Suction tank or source is filled to the correct level
• Suction valves are fully open
• Suction strainer is clean
• Suction piping is fully flooded
• No air pockets are present
• Pipe slope is correct

If suction conditions are poor, do not proceed.

Step 3: Fill, Vent, and Prime the System
Air must be completely removed from the system.
Actions required:

• Open manual air vents at high points
• Vent the pump casing using the vent plug or port
• Vent pressure vessels if applicable
• Allow water to flow until all air is expelled

Never start a booster pump with trapped air—this causes seal damage and cavitation.

Step 4: Electrical Pre-Start Checks
Before energizing the pump:

• Verify supply voltage, phase, and frequency
• Check cable terminations for tightness
• Confirm proper grounding and earthing
• Verify overload relay settings
• Check VFD wiring (if applicable)
• Ensure control panel is dry and sealed

Electrical issues must be resolved before startup.

Step 5: Check Motor Rotation Direction
Momentarily energize the motor to verify correct rotation.

• Compare rotation with arrow on pump casing
• Reverse phase sequence if rotation is incorrect

Incorrect rotation causes:

• No pressure buildup
• Seal damage
• Impeller loosening

Always confirm rotation before full startup.

Step 6: Initial Startup Under No or Low Load
Start the pump with minimal demand.
Observe:

• Smooth startup without abnormal noise
• Gradual pressure rise
• Stable motor current
• No vibration or leakage

Shut down immediately if abnormal noise, vibration, or overheating occurs.

Step 7: Set and Verify Pressure Settings
Adjust system pressure settings according to design.
Verify:

• Cut-in and cut-out pressure (fixed speed systems)
• Pressure setpoint (VFD systems)
• Pressure vessel pre-charge (usually 70–90% of cut-in pressure)

Incorrect pressure settings lead to short cycling and instability.

Step 8: Gradual Load Testing
Introduce water demand gradually.
Check:

• Pressure stability as flow increases
• Pump speed response (VFD systems)
• Motor current under load
• Absence of cavitation noise
• Smooth pressure recovery

This step confirms real-world performance.

Step 9: Multi-Pump Staging and Sequencing (If Applicable)

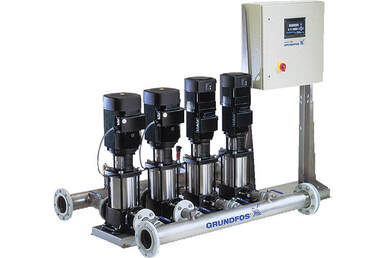

For duplex or triplex systems:

• Verify correct pump rotation order
• Confirm duty/standby changeover
• Test automatic staging under increasing demand
• Confirm stopped pumps are isolated by check valves

Uneven staging causes imbalance and premature wear.

Step 10: Test Safety and Protection Devices
Simulate fault conditions to verify protection.
Test:

• Overload trip
• Phase failure
• Low suction or dry-run protection
• Emergency stop
• High-pressure cut-off
• Alarm outputs

Protection devices must work before handover.

Step 11: Check for Noise, Vibration, and Heat
During extended operation:

• Listen for unusual noise
• Check bearing and motor temperature
• Observe vibration levels
• Inspect for leaks after thermal expansion

Small issues detected now prevent major failures later.

Step 12: Record Baseline Operating Data
Document key parameters:

• Operating pressure
• Flow (if available)
• Motor current per phase
• Pump speed (VFD systems)
• Noise and vibration observations

Baseline data is essential for future troubleshooting.

Step 13: Final System Handover
Before handover:

• Remove temporary tools and vents
• Ensure all covers and guards are secured
• Provide operation instructions to the operator
• Explain basic shutdown and emergency procedures
• Hand over manuals, drawings, and maintenance schedules

A trained operator is part of a successful commissioning.

Common Commissioning Mistakes to Avoid

• Skipping air venting
• Starting pump with closed valves
• Ignoring pressure vessel pre-charge
• Failing to test safety devices
• Not verifying rotation direction
• Commissioning at full load immediately

These mistakes cause immediate or delayed damage.
Commissioning is not a formality—it is a critical process that determines whether a booster pump system operates reliably or fails prematurely. Proper commissioning verifies installation quality, ensures stable pressure control, protects mechanical and electrical components, and establishes a performance baseline. ​For more info contact Booster Pump Set Suppliers in UAE or call us at +971 4 2522966.
