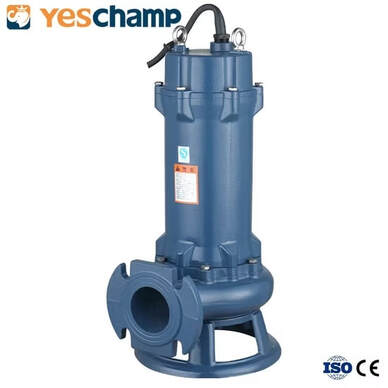

A submersible drainage pump is one of the most effective solutions for removing excess water from basements, construction sites, and flood-prone areas. But even the best pump won’t perform properly if it’s installed incorrectly. Many failures and costly repairs can be traced back to common mistakes made during installation.
In this guide, we’ll highlight the top installation mistakes to avoid so you can ensure your drainage pump operates efficiently and lasts for years.

1. Placing the Pump on an Uneven or Muddy Base
One of the most frequent mistakes is installing the pump directly on mud, gravel, or an uneven surface. This can cause the pump to tilt, clog, or draw in debris.
Solution: Always place the pump on a solid, level surface such as a flat concrete base or a stable sump liner to keep it upright and stable.

2. Ignoring the Check Valve Installation
Without a check valve, water in the discharge pipe flows back into the sump pit after the pump shuts off. This leads to unnecessary cycling, higher energy consumption, and faster wear.
Solution: Install a check valve on the discharge line to prevent backflow and protect your pump.

3. Using the Wrong Size Discharge Hose or Pipe
Using a hose or pipe that’s too narrow restricts water flow, forcing the pump to work harder. This reduces efficiency and shortens the pump’s lifespan.
Solution: Match the discharge pipe size to the pump’s outlet diameter as recommended by the manufacturer.

4. Incorrect Float Switch Positioning
The float switch controls when the pump turns on and off. If it’s obstructed or positioned incorrectly, the pump may fail to start or continue running when dry, risking motor burnout.
Solution: Ensure the float switch has enough space to move freely up and down without obstructions. Test it before final installation.

5. Poor Electrical Setup
Improper electrical connections can lead to pump failure or safety hazards. Common issues include using undersized extension cords, not grounding the pump, or skipping GFCI protection.
Solution:

• Use a dedicated grounded outlet.
• If an extension cord is needed, make sure it is outdoor-rated and heavy-duty.
• Always install on a GFCI circuit to protect against electrical shocks.

6. Neglecting to Test the Pump After Installation
Some installers walk away after setting up the pump without testing it under real conditions. This can leave hidden issues undiscovered until the next flood.
Solution: Always test the pump by filling the sump pit with water. Confirm that it switches on, discharges water properly, and shuts off when levels drop.

7. Failing to Provide Proper Ventilation or Clearance
Placing the pump too close to pit walls or other obstructions reduces water flow to the pump’s inlet, causing cavitation and performance issues.
Solution: Maintain adequate clearance around the pump to allow smooth water intake and prevent overheating.

8. Skipping Regular Maintenance After Installation
Even a perfectly installed pump will fail prematurely if not maintained. Ignoring routine checks can result in clogged inlets, stuck floats, and motor strain.
Solution: Inspect and test the pump every few months, especially before rainy seasons. Clean debris from the sump pit and check for wear on hoses and valves.
Installing a submersible drainage pump the right way ensures efficiency, safety, and long-term reliability. By avoiding these common mistakes — such as improper base setup, incorrect float switch positioning, or skipping the check valve — you can protect your investment and guarantee your pump works when you need it most. For more info contact Submersible Pump Suppliers in UAE or call us at +971 4 2522966.
