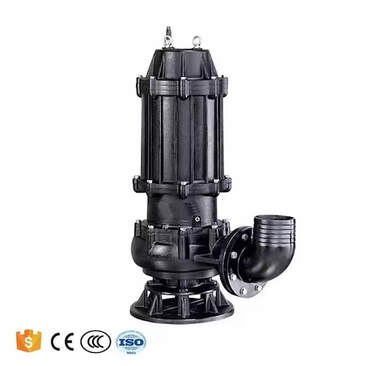

Reviewing the performance specifications of submersible pumps is essential to ensure that the pump can meet your operational needs efficiently and reliably. Below is a detailed guide on what to evaluate:

1. Flow Rate (Capacity)

• Definition: The volume of liquid the pump can move per unit of time, usually measured in liters per second (L/s), gallons per minute (GPM), or cubic meters per hour (m³/h).
• Consideration: Match the flow rate to your application requirements. A pump with insufficient capacity may fail to meet demand, while an oversized pump can waste energy.
• Range: Check if the pump operates efficiently within your required flow range.

2. Head (Pressure Capability)

• Definition: The maximum height the pump can lift liquid, measured in meters (m) or feet (ft).
• Static Head: The vertical distance from the water source to the discharge point.
• Friction Head: Pressure losses due to resistance in pipes, fittings, and valves.
• Total Dynamic Head (TDH): The sum of static and friction head. Ensure the pump can handle your calculated TDH.

3. Pump Efficiency

• Definition: The ratio of the hydraulic power delivered by the pump to the input electrical power, expressed as a percentage.
• High Efficiency: Opt for pumps with higher efficiency to reduce energy consumption and operating costs.
• Efficiency Curve: Review the efficiency curve to identify the pump’s Best Efficiency Point (BEP) and ensure it aligns with your operating conditions.

4. Power Requirements

• Motor Power: Measured in kilowatts (kW) or horsepower (HP), this specifies the energy needed to operate the pump.
• Voltage Compatibility: Confirm that the pump's motor is compatible with your available power supply (single-phase or three-phase).
• Startup Power: Submersible pumps may require higher power at startup, so ensure your system can accommodate this.

5. Pump Size and Dimensions

• Borewell or Installation Space: Verify that the pump fits within the borewell or designated installation area.
• Weight: Ensure your infrastructure can support the pump’s weight, especially for larger models.

6. Impeller Specifications

• Material: Common materials include stainless steel, bronze, and plastic. Choose based on the fluid type and abrasiveness.
• Type: Impeller design (vortex, semi-open, closed) impacts the pump’s ability to handle solids or viscous fluids.
• RPM (Rotations Per Minute): Impeller speed affects the pump’s efficiency and performance.

7. Operating Range

• Temperature Limits: Check the pump’s operating temperature range to ensure it can handle the fluid temperature.
• Depth Rating: Ensure the pump can operate at your required submersion depth without compromising performance.

8. Fluid Compatibility

• Type of Fluid: Confirm that the pump is designed for the specific fluid type (clean water, sewage, slurries, chemicals).
• Solids Handling Capability: For sewage or wastewater applications, check the maximum solids size the pump can pass.
• pH Range: Ensure compatibility with the acidity or alkalinity of the fluid.

9. Durability Under Load

• Continuous Operation: Review specifications for continuous operation to ensure the pump can run for extended periods without overheating or wearing out.
• Dry Run Protection: Some pumps come with built-in sensors or features to prevent damage during dry running.

10. Noise and Vibration Levels

• Noise Levels: Pumps with lower noise levels are ideal for residential or indoor applications.
• Vibration Control: Excessive vibration can damage the pump and surrounding infrastructure, so look for specifications that minimize this.

11. IP Rating (Ingress Protection)

• Definition: The IP rating indicates the pump’s resistance to solids (dust) and liquids (water).
• Ideal Rating: Submersible pumps should have an IP68 rating, ensuring full protection against prolonged water immersion.

12. Performance Curves

• Head vs. Flow Curve: Review the pump’s performance curve to understand how flow rate decreases as head increases.
• Efficiency Curve: Look for the pump's Best Efficiency Point (BEP), which is where it operates most efficiently.
• NPSH Curve: Ensure the pump’s Net Positive Suction Head (NPSH) requirement aligns with your system to prevent cavitation.

13. Energy Efficiency

• Efficiency Ratings: Check if the pump meets IE3 or IE4 motor efficiency standards.
• Energy Consumption: Compare power consumption at different flow rates and heads to assess operating costs.
• Energy Star Certification: Some pumps carry this certification, indicating superior energy efficiency.

14. Thermal and Overload Protection

• Thermal Sensors: Ensure the pump has built-in sensors to shut down during overheating.
• Overload Protection: Protects the motor from power surges and excessive loads.

15. Life Cycle Cost (LCC)

• Initial Cost vs. Operating Cost: A higher upfront cost for a more efficient pump may result in lower long-term operating costs.
• Maintenance Needs: Pumps with lower maintenance requirements and durable parts have better life cycle costs.

16. Warranty and Testing

• Testing Reports: Request performance testing reports to verify the pump’s flow rate, head, and efficiency.
• Warranty Coverage: Check the warranty period and ensure it covers key performance parameters.

By thoroughly reviewing the performance specifications, you can ensure the submersible pump aligns with your operational needs, minimizes energy consumption, and delivers reliable performance over its lifespan. A supplier that provides detailed specifications and testing data demonstrates confidence in their product’s quality. For more info contact Submersible Pump Suppliers in UAE or call us at +971 4 2522966.
