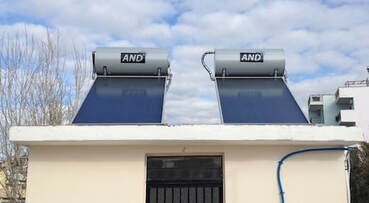

During summer in the UAE, Oman, and Saudi Arabia, solar water heaters operate under extreme heat — often exposed to temperatures exceeding 45°C. While abundant sunlight boosts energy output, many systems lose efficiency due to poor or damaged insulation.
Proper insulation doesn’t just prevent heat loss in winter — it’s equally vital in summer to protect components from overheating, UV degradation, and energy waste. Here’s why insulation plays a crucial role in maintaining solar system performance all year round.

1. The Role of Insulation in Solar Water Heating Systems
Insulation acts as a thermal barrier that maintains temperature stability throughout the system — from collectors to the storage tank.
Its main functions include:

• Preventing unwanted heat loss or heat gain
• Protecting pipes and fittings from UV damage
• Reducing stress on circulation pumps and sensors
• Maintaining consistent water temperature and pressure

Without proper insulation, your system’s efficiency drops and component life shortens.

2. Heat Loss Isn’t Just a Winter Problem
Many assume insulation only matters in cold weather — but in hot climates, exposed pipes can lose heat rapidly when water flow stops.
For example, at night or during idle periods, uninsulated pipes radiate stored heat back into the air, forcing the system to reheat water the next day. This leads to:

• Reduced morning hot water availability
• Increased pump cycling
• Higher overall energy consumption

Proper insulation ensures stored thermal energy remains stable even during summer nights.

3. Protection from UV and Sun Damage
Direct UV exposure can quickly degrade standard pipe insulation, causing it to crack, peel, or crumble.
Common effects include:

• Insulation hardening due to high rooftop temperatures
• Exposed pipes absorbing excess solar radiation
• Leaks developing at weakened joints

Solution: Use UV-resistant materials such as EPDM rubber, aluminum foil wrap, or closed-cell foam insulation rated for 120°C+. These materials withstand harsh desert sun and maintain flexibility throughout the year.

4. Preventing Overheating and Pressure Build-Up
Ironically, poor insulation can contribute to overheating during peak summer hours.
When the heat transfer fluid or water in the collector loop becomes excessively hot, the system pressure increases. Unprotected pipes allow inconsistent heat distribution, which can cause:

• Air pockets or vapor formation (cavitation)
• Reduced flow efficiency
• Strain on pressure relief valves and expansion tanks

Properly insulated pipes help maintain steady thermal gradients, reducing mechanical stress on the system.

5. Enhancing Circulation Efficiency
Insulation also improves circulation pump performance by stabilizing fluid temperature.
When pipes overheat unevenly, pumps must work harder to regulate flow and temperature. Consistent insulation ensures:

• Smooth, balanced heat transfer
• Fewer pump start-stop cycles
• Longer pump and motor lifespan

This is especially important in pressurized glycol systems operating under continuous sunlight exposure.

6. Reducing Energy Waste and Operational Costs
Even in solar systems, energy efficiency matters. When heat escapes through poorly insulated pipes, the system compensates by running the pump longer or reheating water.
Result:

• Wasted energy and higher electricity consumption
• Reduced system output efficiency by up to 10–15%
• Shortened equipment lifespan due to overuse

High-quality insulation pays off quickly by reducing operating hours and preventing overheating-related wear.

7. Where Insulation Is Most Critical
To ensure optimal performance, focus on insulating the following areas:

• Collector outlet and inlet pipes – exposed to the most intense heat and UV radiation.
• Hot water delivery lines – between the storage tank and point of use.
• Pump and valve assemblies – to prevent heat stress and expansion.
• Expansion tanks and fittings – to maintain stable pressure.

Every exposed section on the rooftop should be protected.

8. Signs Your Insulation Needs Replacement
Inspect insulation every 6–12 months, especially before summer.
Look for:

• Cracks, discoloration, or peeling surface
• Powdery residue or brittleness
• Exposed pipe sections
• Drips or leaks from condensation

Replace damaged insulation immediately to avoid system inefficiency and component damage.

9. Best Practices for Summer Insulation Maintenance

• Use insulation rated for high-temperature solar use (≥120°C).
• Wrap insulation tightly and seal joints with aluminum or UV-resistant tape.
• Shade exposed insulation where possible using reflective coverings.
• Avoid PVC foam materials — they degrade quickly under Gulf sunlight.
• Conduct a professional inspection annually for full system safety.

These steps keep your insulation effective even during harsh summer months.
In hot climates, proper insulation isn’t optional — it’s essential for solar water heater reliability and efficiency. By protecting pipes, tanks, and collectors from UV radiation and overheating, insulation helps maintain consistent temperature, reduce pressure surges, and extend the life of your system.
Regular inspection and replacement with UV-resistant materials will keep your solar heater performing efficiently through every summer season in the UAE and GCC. For more info contact Solar Water Heater Maintenance Dubai in UAE or call us at +971 4 2522966.
