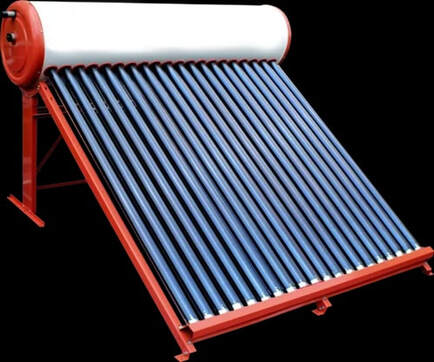

Inspecting and testing the electrical connections in your solar water heater system is crucial to maintaining safe and reliable operation. Faulty or loose connections can lead to system inefficiency, potential electrical hazards, and even component failure. Regularly checking the electrical connections will help prevent these issues, ensuring your system operates efficiently and safely. Here’s a step-by-step guide for inspecting and testing electrical connections in a solar water heater system.

Why Inspecting and Testing Electrical Connections Is Important

• Prevents Malfunctions: Faulty or loose connections can lead to erratic performance, reduced efficiency, or system shutdowns.
• Reduces Risk of Electrical Hazards: Secure, properly insulated connections reduce the risk of shorts, sparks, or potential fire hazards.
• Maintains Optimal Performance: Well-maintained electrical connections ensure that components like pumps, sensors, and controllers receive consistent power.

Tools and Supplies Needed

• Multimeter (for voltage and continuity testing)
• Screwdrivers (flathead and Phillips)
• Insulated gloves (for added safety)
• Wire stripper and crimper (for any necessary repairs)
• Electrical tape or heat shrink tubing (for insulation)
• Safety goggles

Step-by-Step Guide to Inspecting and Testing Electrical Connections
Step 1: Turn Off Power to the System

• Switch Off the Main Power Supply: Turn off the main power to the solar water heater system, including the breaker that controls it, to avoid the risk of electric shock.
• Double-Check Power Off with Multimeter: Verify that the power is off by testing one of the main electrical points with a multimeter. This ensures there’s no accidental power during inspection.

Step 2: Inspect All Electrical Connections

• Check for Loose Connections: Inspect the wires at the controller, pump, sensors, and any electrical junction boxes. If any connections are loose, use a screwdriver to tighten them gently.
• Look for Signs of Wear or Damage: Examine wires for fraying, discoloration, melted insulation, or corrosion, as these indicate wear or potential safety issues.
• Inspect the Insulation: Make sure all wires are properly insulated and that no bare wire is exposed. Exposed wires are a safety hazard and should be re-insulated with electrical tape or heat shrink tubing.

Step 3: Test the Connections with a Multimeter

• Set the Multimeter to the Proper Setting: Set your multimeter to the appropriate voltage (typically AC voltage) for testing power inputs and outputs.
• Test Each Connection Point: Check the voltage at each connection point, including at the controller, pump, and sensors. Ensure the readings match the expected values according to your system’s manual.
• Test for Continuity (If Needed): If you suspect a faulty wire, set the multimeter to continuity mode and test the wire. If there’s no continuity, the wire may be broken and require replacement.

Step 4: Secure and Re-Insulate Any Loose or Damaged Wires

• Tighten Loose Wires: If you identified any loose wires, carefully tighten them using the appropriate tool.
• Replace or Repair Damaged Wires: If a wire shows signs of wear or damage, cut out the damaged section, strip the ends, and rejoin them with a wire connector or crimp. Insulate the connection with electrical tape or heat shrink tubing to prevent exposure.
• Use Cable Ties to Secure Wires: Bundle and secure wires with cable ties to reduce stress on connections and prevent accidental disconnections.

Step 5: Turn the Power Back On and Test the System

• Turn the Power Back On: Once all connections are secure, turn on the main power supply.
• Monitor System Operation: Observe the operation of the system components, such as the pump and controller, to ensure they’re functioning correctly.
• Check for Consistent Readings: Using the multimeter, verify that voltage readings at key points are stable and within the correct range.

Tips for Electrical Connection Maintenance

• Perform Routine Checks Every 6-12 Months: Regular inspections help catch small issues before they become larger, potentially costly problems.
• Watch for Corrosion in High-Humidity Areas: If your system is in a humid environment, corrosion can form more quickly on connections. Applying a small amount of dielectric grease to exposed metal parts can help prevent this.
• Avoid Over-Tightening: Be careful not to over-tighten connections, as this can damage wires or connectors. A snug fit is typically sufficient.

By regularly inspecting and testing electrical connections, you’ll keep your solar water heater system operating efficiently and safely, preventing electrical faults that could impact performance. These checks are essential for reliable performance and for extending the system’s lifespan. For more info contact Solar Water Heater Repair Dubai in UAE or call us at +971 4 2522966.
