Solar water heaters rely heavily on the type of solar collector panel used. While storage tanks, piping, and controls are important, the panel (also called the solar collector) is the component that actually captures solar energy and converts it into heat.
Globally—and especially in regions like the UAE and GCC—two panel types dominate the market:

• Flat Plate Solar Water Heater Panels (FPC)
• Evacuated Tube Solar Water Heater Panels (ETC)

This blog explains how each type works, their design differences, and which one is more suitable for different climates and applications.

What Is a Solar Water Heater Panel?
A solar water heater panel is a thermal collector designed to absorb sunlight and transfer the heat to water (or heat-transfer fluid). Unlike solar PV panels that generate electricity, these panels directly generate thermal energy.
The efficiency, durability, and reliability of a solar water heating system depend largely on:

• Collector design
• Heat loss characteristics
• Climate compatibility
• Installation environment

Flat Plate Solar Water Heater Panels
Design and Construction
A flat plate solar collector consists of:

• A dark-colored absorber plate (usually copper or aluminum)
• Copper tubes bonded to the absorber for water circulation
• A transparent glass cover on top
• Thermal insulation at the back and sides
• A rigid metal casing (aluminum or galvanized steel)

The entire panel is sealed into a single flat, rectangular unit.
How Flat Plate Panels Work

1. Sunlight passes through the glass cover.
2. The absorber plate converts solar radiation into heat.
3. Heat is transferred to water flowing through the copper tubes.
4. Insulation reduces heat loss to the surrounding air.
5. Heated water moves to the storage tank by natural circulation or pumping.

Key Characteristics of Flat Plate Panels

• Operate efficiently in high ambient temperatures
• Very stable under strong sunlight
• Less sensitive to dust, wind, and external damage
• Simple construction with fewer failure points

Typical Applications

• Residential villas and apartments
• Hotels and labor accommodations
• Hospitals and commercial buildings
• Centralized solar hot water systems
• Hot desert and tropical climates

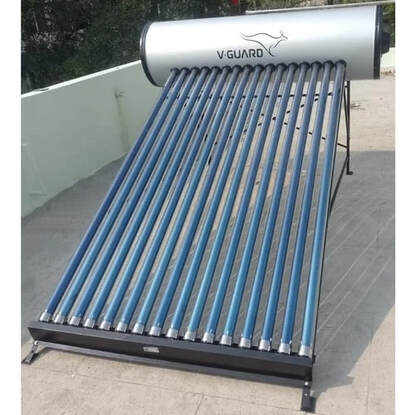

Evacuated Tube Solar Water Heater Panels
Design and Construction
An evacuated tube collector is made up of multiple parallel glass tubes. Each tube consists of:

• An inner absorber tube with selective coating
• An outer glass tube
• A vacuum layer between the two tubes
• Either a heat pipe or direct flow water tube inside

The tubes are connected to a common header manifold.
How Evacuated Tube Panels Work

1. Sunlight hits the absorber inside the tube.
2. Heat is trapped due to the vacuum insulation.
3. Heat is transferred to water or a heat pipe fluid.
4. The header manifold collects the heat and sends it to the tank.

The vacuum layer dramatically reduces heat loss to the environment.
Key Characteristics of Evacuated Tube Panels

• Excellent thermal insulation
• High efficiency in cold and windy conditions
• Perform well in low sunlight and winter
• Modular design (individual tubes can be replaced)

Typical Applications

• Cold and temperate climates
• Mountain and winter-dominant regions
• Areas with frequent cloudy weather
• Low ambient temperature environments

Flat Plate vs Evacuated Tube: Core Differences Explained
Heat Loss Behavior

• Flat Plate Panels
  Experience higher heat loss in cold or windy environments but perform consistently in warm climates.
• Evacuated Tube Panels
  Minimal heat loss due to vacuum insulation, making them ideal for cold climates.

Performance in Hot Climates

• Flat plate panels are more stable under extreme heat and high solar radiation.
• Evacuated tubes can reach very high stagnation temperatures, increasing:
  • Overheating risk
  • Pressure relief valve discharge
  • Scaling and stress on components

Mechanical Strength and Durability

• Flat plate panels are:
  • Stronger against wind loads
  • Less prone to physical damage
  • Better suited for rooftops in coastal or dusty regions
• Evacuated tubes are:
  • Made of glass
  • More vulnerable to breakage from impact or thermal shock

Maintenance Considerations

• Flat plate panels:
  • Require minimal maintenance
  • Easy cleaning
  • Long service life (15–25 years)
• Evacuated tube panels:
  • Individual tube replacement possible
  • More frequent inspection required
  • Vacuum degradation over time affects performance

Which Panel Type Is Better for the UAE and GCC?
In hot desert climates like the UAE, flat plate solar water heater panels are generally preferred because:

• High ambient temperature reduces heat loss issues
• Strong resistance to overheating problems
• Better tolerance to dust, sand, and UV exposure
• Longer operational life with lower maintenance
• Proven performance in hotels, villas, and commercial projects

Evacuated tube panels are more suitable for:

• Cold climates
• Regions with snow or freezing temperatures
• Areas where winter performance is critical

Choosing the Right Solar Panel Type for Your Project
When selecting a solar water heater panel, consider:

• Local climate and ambient temperature
• Roof space and structural strength
• Daily hot water demand
• System type (pressurized or non-pressurized)
• Maintenance access and lifecycle cost

A technically correct panel choice improves:

• Energy efficiency
• System reliability
• Safety
• Long-term cost savings

Both flat plate and evacuated tube solar water heater panels are proven technologies—but they are not interchangeable.

• Flat plate panels excel in hot, sunny, and harsh environments like the Middle East.
• Evacuated tube panels shine in cold, cloudy, and low-temperature regions.

Understanding these differences helps engineers, consultants, and building owners design solar hot water systems that are efficient, durable, and climate-appropriate. For more info contact Solar Water Heater Dubai or call us at +971 4 2522966.
