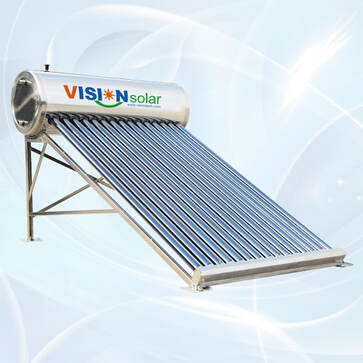

The outer casing and assembly of evacuated tube solar water heaters are vital to the system’s durability, heat retention, and overall efficiency. The casing serves as both a protective layer for the internal components (like the glass tube and heat pipe) and as an insulating barrier to enhance thermal performance. This step in the manufacturing process ensures that the evacuated tube is securely housed, resistant to mechanical damage, and able to withstand environmental conditions such as wind, rain, and UV exposure.
Here’s a breakdown of the outer casing and assembly process:

1. Materials for the Outer Casing
The materials used for the outer casing are selected to provide durability, corrosion resistance, and effective insulation. Common materials include:

• Stainless Steel:
  • Stainless steel is the most common material used for the outer casing due to its corrosion resistance, strength, and aesthetic appeal. It is also resistant to high temperatures and can withstand the environmental stresses of outdoor installations.
  • Aesthetic Appeal: Stainless steel is sleek, modern, and often preferred for its shiny, durable finish.
  • Durability: It withstands impact, weather, and UV radiation, ensuring that the solar water heater remains functional and attractive over time.
• Aluminum:
  • In some designs, aluminum is used due to its lightweight nature and corrosion resistance. It is less expensive than stainless steel and offers a balance between durability and cost.
• Galvanized Steel:
  • Galvanized steel is sometimes used for the casing as a cost-effective solution. It is coated with a layer of zinc to protect it from rust and corrosion, though it is less durable than stainless steel.
• Polyurethane or Other Insulating Materials:
  • Some outer casings have insulating layers made of materials like polyurethane foam or mineral wool to enhance thermal retention and minimize heat loss. These materials help improve the energy efficiency of the system by reducing heat transfer to the outside environment.

2. Fabrication of the Outer Casing
The outer casing is fabricated to enclose the evacuated tubes, providing a protective barrier while also ensuring proper alignment and structural integrity.

• Cutting and Shaping:
  • Stainless steel or aluminum sheets are cut to the required dimensions and shaped into the appropriate form to house the evacuated tubes. The design includes space for the tubes to be mounted and aligned securely.
• Forming the Outer Shell:
  • The metal is shaped into a rectangular or cylindrical form (depending on the design) using machines like presses or rollers. The casing needs to be shaped to fit multiple tubes and allow for their secure mounting within the manifold.
• Welding or Fastening:
  • In the case of stainless steel or aluminum, the casing is welded or riveted to create a seamless and sturdy outer shell. This ensures that the casing is structurally sound and can withstand environmental stresses.
  • Sealant Application: To further ensure weatherproofing, silicone sealants are often applied to the joints and seams, especially around the edges where the casing meets the glass tubes.

3. Insulation Layer (If Applicable)

• Insulation Material Application:
  • An insulation layer may be applied to the inner surface of the outer casing, typically made from polyurethane foam or mineral wool. The purpose of this insulation is to reduce heat loss from the evacuated tubes and improve the overall efficiency of the solar water heater system.
  • The insulation material is carefully fitted to ensure there are no gaps that would allow heat to escape. The insulation should also be weather-resistant to prevent it from absorbing moisture, which could reduce its effectiveness.

4. Manifold Integration

• Mounting the Evacuated Tubes:
  • Once the outer casing is fabricated, the evacuated tubes are inserted into the casing. The tubes are positioned within the manifold (a pipe system that collects heat from all the tubes) in such a way that they are securely mounted and properly aligned for optimal heat transfer.
• Manifold Assembly:
  • The manifold is an essential part of the casing and serves as the conduit for transferring heat from the evacuated tubes to the water storage tank. It is designed to allow the heat pipe to transfer thermal energy efficiently to the water, ensuring that the system is both effective and energy-efficient.
• Connection Points:
  • The manifold connects the evacuated tubes to the heat exchanger inside the water storage tank. The manifold must be carefully sealed at connection points to prevent any leaks or loss of thermal energy.

5. Integrating the End Caps and Connectors

• End Caps:
  • The end caps are fitted to the ends of the casing and are designed to protect the tubes and manifold from dirt, moisture, and mechanical damage. The end caps are often made of the same material as the casing (stainless steel or aluminum).
  • Sealing and Protection: End caps may also incorporate rubber or silicone seals to ensure the casing is airtight and weatherproof.
• Connectors for Water Inlet/Outlet:
  • Connectors are installed to allow the flow of water between the manifold and the water storage tank. These connectors are usually designed for easy installation and maintenance, with durable seals to prevent leaks.

6. Thermal Coupling with Heat Pipe

• Heat Pipe Integration:
  • The heat pipes inside the evacuated tubes are thermally coupled with the heat exchanger in the manifold. This ensures that the heat absorbed by the heat pipes is transferred to the water efficiently.
  • Thermal Paste or Adhesive: In some designs, thermal paste or heat-conducting adhesive is used to improve the heat transfer between the heat pipe and the heat exchanger.

7. Final Testing and Quality Control

• Leak Testing:
  • Once the casing is assembled and the evacuated tubes are mounted, the system undergoes leak testing to ensure there are no issues with the seals or connectors. This test involves pressurizing the system and checking for any signs of leakage.
• Heat Efficiency Test:
  • The system is also subjected to heat efficiency tests, where it is exposed to simulated sunlight, and the heat transfer from the evacuated tubes to the water is monitored. The goal is to ensure that the system is performing optimally and that there is minimal heat loss through the casing.

8. Packaging and Shipping

• Protection During Transport:
  • After the system passes all quality control checks, it is packaged carefully to protect the evacuated tubes and outer casing during transport. The packaging often includes protective foam, shrink-wrap, and reinforced boxes to prevent damage.
• Shipping:
  • The finished solar water heater units are then ready to be shipped to distributors, installers, or end customers. The packaging ensures that the units remain in perfect condition throughout transit.

The outer casing and assembly of evacuated tube solar water heaters play a significant role in ensuring the system’s longevity, thermal efficiency, and overall functionality. By selecting the right materials, integrating effective insulation, and ensuring airtight seals, manufacturers can create durable and highly efficient solar water heating systems. Proper assembly of the manifold, heat pipe integration, and end caps ensures that the system can withstand environmental stresses while maximizing heat absorption and energy efficiency. This final assembly process is critical for the performance of the solar water heater, ensuring that it operates optimally throughout its lifespan. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.
