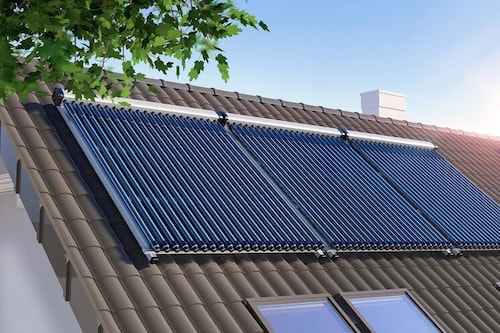

Optimizing the temperature control in an evacuated tube solar collector system is critical for maximizing energy efficiency, ensuring reliable performance, and prolonging the system’s lifespan. Proper temperature regulation prevents overheating, reduces energy waste, and ensures that the system operates within its ideal temperature range. Here’s how to effectively optimize the temperature control of your solar water heating system:

1. Use a Thermostatic Control System
A thermostatic control system is essential to regulate the temperature of the water in the storage tank. The thermostat monitors the temperature and activates the backup heating system (e.g., electric or gas heater) when the solar system is insufficient to meet the desired temperature.

• How it Works: The thermostat can be set to a predefined setpoint temperature (e.g., 60–70°C for domestic water heating). If the temperature falls below this level, the thermostat triggers the backup heating system to turn on and bring the water back to the required level.
• Benefit: Thermostatic control prevents overheating and ensures the system maintains a consistent hot water supply without excessive use of the backup system, optimizing overall system performance.

2. Set Optimal Temperature Ranges
It is crucial to set the temperature range for your solar system to avoid excessive heating and prevent energy wastage. Different systems and applications may require different temperature settings:

• Domestic Use: For household use, a temperature range of 50–60°C is typically ideal. Higher temperatures can lead to unnecessary energy consumption, while lower temperatures may not be sufficient for sanitation or comfort.
• Commercial Use: Commercial systems may require higher temperatures, especially in settings like hotels, restaurants, or factories. However, it’s still essential to avoid excessive heating, as this leads to wasted energy.
• Benefit: By adjusting the temperature range, you can ensure that the system operates at its most efficient level, ensuring hot water availability while reducing energy consumption.

3. Use Differential Controllers for Solar Systems
Differential controllers are designed specifically for solar water heating systems to optimize the performance of the evacuated tube system. These controllers compare the temperature between the solar collectors and the storage tank. If the solar collectors are hot enough to heat the water in the tank, the controller will activate the pump to circulate the heat transfer fluid from the collectors to the tank.

• How it Works: The controller ensures that the solar system only operates when the collectors are significantly hotter than the water in the tank. If the collectors are not sufficiently heated, the system does not waste energy by circulating fluid.
• Benefit: Differential controllers ensure that the system only operates when solar energy is available, improving efficiency and reducing the need for backup heating.

4. Install a Temperature Mixing Valve
A temperature mixing valve helps regulate the temperature of the hot water exiting the storage tank. It mixes hot water with cold water to provide a safe and consistent temperature at the faucet or showerhead. This is especially important for preventing scalding injuries, particularly in households with children or elderly individuals.

• How it Works: The valve is set to a predetermined temperature, typically 38–40°C, and ensures that water exiting the system does not exceed this temperature.
• Benefit: The mixing valve prevents overheating and ensures that only the necessary amount of heat is provided, improving both safety and energy efficiency.

5. Use Solar-Ready Controllers with Nighttime Protection
To prevent overheating at night or during non-sunny periods, solar water heating systems should include nighttime protection in the temperature control system. This feature automatically shuts off the pump and backup heating system when no solar energy is being produced, reducing the risk of overheating the storage tank and wasting energy.

• How it Works: During the night or on cloudy days, the controller detects the lack of sunlight and ensures the system remains inactive until the temperature reaches the desired level.
• Benefit: Nighttime protection optimizes energy use and prevents overheating, ensuring that the system only heats when needed and reduces unnecessary energy consumption.

6. Regularly Calibrate and Maintain Temperature Sensors
Temperature sensors play a vital role in maintaining the correct temperature in the storage tank. Over time, these sensors may become less accurate, which can result in inefficient heating and temperature control.

• How to Calibrate: Periodically check the temperature sensors and compare the readings with a calibrated thermometer. If the sensor is inaccurate, recalibrate or replace it as needed.
• Benefit: Regular maintenance of temperature sensors ensures that the system operates within the optimal temperature range, reducing energy waste and improving system accuracy.

7. Optimize Temperature Differential for Efficiency
One of the key factors in solar water heating system performance is the temperature differential between the solar collector fluid and the water in the storage tank. The larger the temperature difference, the more efficiently heat is transferred. However, an excessive temperature differential can lead to energy losses and reduced system performance.

• How to Optimize: Ensure that the temperature differential is maintained at an optimal level by adjusting the flow rate of the fluid and monitoring the solar collector’s output. Typically, a differential of 5–10°C is ideal for most systems.
• Benefit: Optimizing the temperature differential ensures effective heat transfer, maximizes system performance, and minimizes energy loss.

8. Consider Smart Temperature Controls for Remote Monitoring
Modern solar water heating systems can be integrated with smart temperature controls that allow for remote monitoring and adjustments. These systems use smart controllers or apps to allow you to monitor the temperature in real-time, adjust settings, and receive alerts if temperatures go outside the desired range.

• How it Works: Smart systems can detect changes in temperature, adjust settings accordingly, and even integrate with other home automation systems for added convenience.
• Benefit: Remote monitoring allows for better control over your system, ensuring it always operates efficiently, and provides convenience and energy savings.

9. Optimize Pump Operation with Variable Speed Drives (VSDs)
For systems that use a pump to circulate fluid from the solar collectors to the storage tank, installing a Variable Speed Drive (VSD) can optimize the operation of the system. The VSD adjusts the speed of the pump based on the temperature differential between the collectors and the tank, allowing the system to operate more efficiently.

• How it Works: The VSD reduces the pump speed when the temperature difference is low, conserving energy and reducing wear and tear on the pump. When the temperature differential is high, the pump runs at a higher speed to transfer heat more effectively.
• Benefit: Using VSDs ensures that the pump operates only when necessary, optimizing both energy use and pump longevity.

10. Integrate Temperature Control with Building Automation Systems (BAS)
For large residential or commercial installations, integrating the solar water heating system’s temperature control with a Building Automation System (BAS) can lead to even greater efficiency. A BAS can monitor and control the temperature across multiple systems, including heating, cooling, and water heating.

• How it Works: The BAS can adjust temperature settings based on real-time data from the solar collectors, storage tanks, and weather conditions, ensuring that energy consumption is minimized and efficiency is maximized.
• Benefit: BAS integration ensures that temperature control is fully optimized, providing seamless operation and reducing energy waste across all systems.

Optimizing the temperature control in your evacuated tube solar collector system is essential for ensuring efficient operation, consistent hot water supply, and energy savings. By using thermostatic control systems, adjusting temperature ranges, implementing smart controllers, and optimizing temperature differentials, you can significantly improve the efficiency of your system. Additionally, integrating a backup heating system with smart temperature control ensures that you have reliable hot water when needed, without excessive energy use. These optimizations result in lower operational costs, increased comfort, and a more sustainable energy solution. For more info contact Solar Water Heater or call us at +971 4 2522966.
