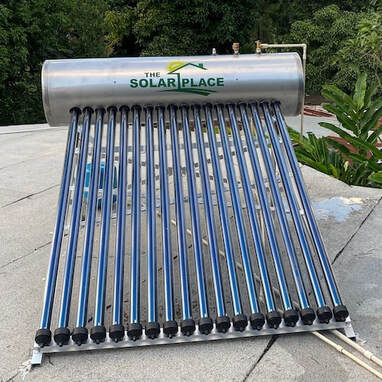

The storage tank is a crucial component of an evacuated tube solar water heating system, as it holds the heated water from the solar collectors and makes it available for use. Proper installation of the storage tank is essential to ensure the system operates efficiently, maintains water temperature, and integrates seamlessly with the rest of the system. Below is a step-by-step guide on how to correctly install the storage tank for your evacuated tube solar water heater.

1. Choose the Optimal Location for the Storage Tank
Before installation, carefully select the location where the storage tank will be placed. The tank needs to be located close to the solar collectors and should meet the requirements for optimal system performance.
Considerations for Tank Location:

• Proximity to Solar Collectors: The storage tank should be positioned as close as possible to the evacuated tube collectors to minimize heat loss in the pipes and ensure efficient heat transfer.
• Space and Accessibility: Ensure there is enough space for the tank and that it is easily accessible for maintenance. If the tank needs to be installed indoors, ensure the space is well-ventilated.
• Weight Support: The tank can be heavy when filled with water, so ensure the floor or mounting platform can support the weight.
• Proper Ventilation: If installing the tank indoors, ensure the space is well-ventilated to prevent heat buildup, especially if the tank has a high temperature during the summer months.
• Benefit: Choosing the right location ensures the efficient operation of the system by minimizing energy loss and providing easy access for maintenance.

2. Install the Storage Tank
Once you've chosen the appropriate location, follow these steps to properly install the storage tank.
Step-by-Step Instructions:

1. Place the Tank: Position the storage tank on a level platform or mounting base. If the tank is a large unit, ensure that it is securely anchored to prevent movement. If using a wall-mounted tank, ensure that the wall is structurally sound and can support the weight of the tank.
2. Check Tank Orientation: If the tank is cylindrical, make sure it is placed with the inlet and outlet pipes in the proper orientation for connecting to the solar system.
3. Ensure Level Installation: Use a level to ensure that the storage tank is installed properly and is even. This is crucial for ensuring correct water flow and temperature regulation.
4. Support the Tank: If the tank is large or placed on a raised platform, ensure that it is well-supported to prevent strain on the connections or leaks from developing over time.

• Benefit: Proper installation ensures that the tank is secure, level, and properly supported, reducing the risk of leaks or failure.

3. Connect the Water Inlet and Outlet
The inlet and outlet pipes of the storage tank allow the system to circulate water between the tank and the solar collectors.
Step-by-Step Instructions:

1. Connect the Cold Water Inlet: The cold water inlet pipe should be connected to the bottom of the storage tank. This pipe brings cold water from the main supply into the tank, where it will be heated by the solar collectors.
2. Connect the Hot Water Outlet: The hot water outlet should be connected to the top of the tank, where the heated water will flow out and be distributed to the taps, appliances, or other uses.
3. Use Insulated Pipes: For both the cold and hot water pipes, ensure that insulated piping is used to minimize heat loss during transportation between the solar collectors and the storage tank.
4. Secure the Connections: Tighten all pipe fittings to prevent leaks, using Teflon tape or thread sealant to ensure secure and leak-free connections.

• Benefit: Properly connecting the inlet and outlet pipes ensures efficient water flow and prevents leaks, ensuring that the system works as intended.

4. Install the Heat Exchanger (if applicable)
If your solar system uses a heat exchanger to transfer heat from the solar fluid to the water in the tank, you will need to install this component inside or alongside the storage tank.
Step-by-Step Instructions:

1. Position the Heat Exchanger: The heat exchanger should be securely positioned inside the storage tank. It may be positioned centrally in the tank or placed at a specific location depending on the system design.
2. Connect the Solar Fluid Pipes: Connect the solar fluid pipes (from the evacuated tube collectors) to the heat exchanger. This allows the heat transfer fluid (usually a water-glycol mixture) from the collectors to flow through the heat exchanger, transferring heat to the water inside the tank.
3. Secure Connections: Tighten all connections between the solar fluid pipes and the heat exchanger. Ensure there are no leaks and that the flow is unobstructed.

• Benefit: Installing a heat exchanger ensures efficient heat transfer from the solar collectors to the storage tank, making the system more energy-efficient.

5. Install Temperature and Pressure Sensors
To ensure proper temperature control and system safety, temperature and pressure sensors should be installed in the storage tank.
Step-by-Step Instructions:

1. Install Temperature Sensors: Attach temperature sensors to the outlet and inlet pipes of the storage tank. These sensors will monitor the water temperature and ensure that it stays within the desired range. Many systems have additional sensors in the solar collectors to monitor the temperature of the solar fluid.
2. Install Pressure Sensors: Install pressure sensors to monitor the pressure of the solar fluid system and the water tank. Pressure issues can cause system damage or inefficiencies, so it's important to keep these sensors in good condition.
3. Connect Sensors to the Controller: The sensors should be connected to the solar system controller, which will regulate the system’s operation based on the readings from these sensors.

• Benefit: Temperature and pressure sensors allow for accurate system regulation, preventing overheating and ensuring optimal performance.

6. Connect the Solar System’s Pump and Controller
If your system uses a pump to circulate the solar fluid between the collectors and the storage tank, it must be connected properly to ensure efficient fluid movement.
Step-by-Step Instructions:

1. Pump Location: Install the pump near the solar collector or heat exchanger to ensure proper fluid circulation. The pump should be mounted in a location that is protected from the elements and easily accessible for maintenance.
2. Controller Wiring: The solar system’s controller should be connected to the pump and the temperature sensors. The controller will automatically activate the pump when the temperature differential between the collectors and the tank reaches a certain threshold.
3. Check Electrical Connections: Ensure all electrical connections are secure, and the system is wired according to the manufacturer's specifications. If necessary, consult an electrician to help with wiring.

• Benefit: Proper connection of the pump and controller ensures efficient fluid circulation, optimizing the heat transfer process and reducing energy consumption.

7. Fill the System and Check for Leaks
Once all connections are made, it’s time to fill the system with the appropriate fluid and check for any leaks.
Step-by-Step Instructions:

1. Fill with Solar Fluid: If using a glycol mixture (for freeze protection), fill the system with the appropriate mixture. For systems using water alone, simply fill the storage tank with water.
2. Check for Leaks: Carefully inspect all pipe connections and joints for leaks. If any leaks are found, turn off the system, tighten the connections, and refill the system.
3. Purge Air from the System: Ensure that there is no air trapped in the system, as this can reduce the system’s efficiency. Open the air vents to allow any trapped air to escape.

• Benefit: Ensuring the system is filled properly and free of leaks ensures that the system operates at maximum efficiency and prevents damage due to air pockets or water loss.

8. Test the System
Once the installation is complete, it’s time to test the system to ensure everything is functioning correctly.
Step-by-Step Instructions:

1. Turn on the System: Activate the pump, and monitor the system’s temperature and pressure readings. Ensure the system is circulating the solar fluid properly and heating the water effectively.
2. Check the Temperature: Use the temperature sensors to verify that the water in the tank is heating to the desired temperature.
3. Monitor for Malfunctions: Watch for any unusual noises, vibrations, or leaks. Check for any alerts or error codes on the system’s controller.

• Benefit: Testing the system ensures it is operating correctly, with all components functioning as intended.

Proper installation of the storage tank is essential for ensuring the efficient operation of your evacuated tube solar water heating system. By following these detailed steps—ensuring the right location, connecting pipes securely, installing sensors, and testing the system—you can optimize your system’s performance and ensure it provides reliable, cost-effective hot water. Regular maintenance and monitoring of the tank will help maintain long-term efficiency and reduce the need for costly repairs. For more info contact Solar Water Heater or call us at +971 4 2522966.
