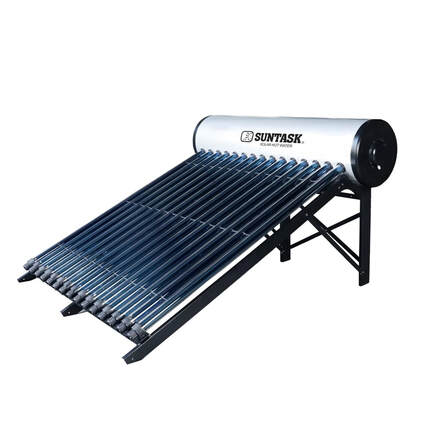

The installation of the solar collectors is one of the most important steps in setting up your evacuated tube solar water heating system. Proper installation ensures the system performs optimally, capturing the maximum amount of sunlight and efficiently converting it into heat for your water. Below is a step-by-step guide to help you correctly install the solar collectors.

1. Gather Required Tools and Materials
Before starting the installation, make sure you have all the necessary tools and materials:

• Solar collectors (evacuated tubes)
• Mounting brackets and frame for the collectors
• Drill and screws for securing brackets
• Measuring tape for alignment
• Wrench for tightening bolts
• Level to ensure proper alignment
• Safety harness and ladder (if working on a roof)
• Pipe connections and insulated pipes for fluid transport

2. Prepare the Roof or Installation Area
Before mounting the collectors, ensure that the roof or installation area is ready for the system.
Considerations for Roof Preparation:

• Clear Roof Area: Make sure there are no obstructions such as trees, chimneys, or other structures that could cause shading on the solar collectors, especially during peak sunlight hours.
• Roof Condition: Verify that the roof is in good condition and able to support the weight of the solar collectors and storage tank. If needed, consult with a structural engineer to confirm the roof's load-bearing capacity.
• Orientation and Tilt Angle: Ensure the area where the collectors will be mounted is oriented towards true south (in the Northern Hemisphere) or true north (in the Southern Hemisphere). Set the tilt angle to match your latitude or adjust for optimal seasonal performance.

3. Install the Mounting Brackets
The mounting brackets are responsible for securing the evacuated tube solar collectors to the roof or ground structure. Ensure they are installed correctly to hold the collectors at the optimal tilt and orientation.
Step-by-Step Instructions:

1. Position the Brackets: Place the mounting brackets at the designated location on the roof or installation area. They should be spaced evenly to accommodate the size of the collector array. Use the measuring tape to ensure uniform spacing.
2. Adjust for Tilt: The mounting brackets should be set at the desired tilt angle. For example, if your location is at a latitude of 30°, the mounting brackets should be set at a 30° tilt for optimal sun exposure. This can be adjusted slightly for winter months (by 10–15 degrees).
3. Secure the Brackets: Drill holes in the roof and securely fasten the brackets using appropriate screws and anchors. Use a level to ensure that the brackets are aligned properly and that the collectors will be positioned at the correct angle.
4. Check for Stability: Ensure the brackets are stable and firmly attached to the roof or ground structure to avoid movement during wind or weather conditions.

• Benefit: Proper installation of the mounting brackets ensures that the collectors are positioned for maximum sunlight exposure and are stable in place for long-term performance.

4. Position the Collectors on the Mounting Brackets
Once the mounting brackets are installed, the next step is to position the solar collectors on the brackets.
Step-by-Step Instructions:

1. Lift the Collectors into Place: Carefully lift the evacuated tube solar collectors and position them onto the mounting brackets. Ensure the tubes are aligned correctly and securely attached to the brackets.
2. Ensure Proper Alignment: The evacuated tubes should be positioned so that they face true south (or north, depending on hemisphere) and are tilted at the proper angle for optimal sunlight exposure. Use the level to confirm that the collectors are positioned at the correct angle and are stable.
3. Tighten the Collectors: Once the collectors are positioned correctly, secure them tightly to the mounting brackets using bolts or clamps. Ensure that the tubes are firmly held in place but not overly tightened, as this could cause damage to the tubes or brackets.

• Benefit: Correctly positioning the collectors ensures they receive maximum exposure to sunlight, which leads to higher efficiency in heating water.

5. Connect the Solar Fluid Pipes
The solar fluid pipes transport the heat transfer fluid (or antifreeze) from the evacuated tubes to the heat exchanger in the storage tank. These pipes need to be connected securely to ensure efficient fluid circulation.
Step-by-Step Instructions:

1. Connect the Inlet and Outlet Pipes: Attach the inlet and outlet pipes from the solar collectors to the heat exchanger in the storage tank. The inlet pipe carries the cold water or fluid into the collectors, and the outlet pipe carries the heated fluid back to the tank.
2. Insulate the Pipes: Use insulated piping to minimize heat loss during the transport of the heated fluid between the collectors and the storage tank. Proper insulation is especially important for systems operating in cold climates.
3. Secure the Connections: Ensure that all pipe connections are tightly secured to prevent leaks. Use Teflon tape or thread sealant where necessary to avoid leaks at threaded joints.
4. Check for Proper Flow: Ensure the pipes are arranged for optimal flow of the heat transfer fluid, avoiding any kinks or blockages that could reduce system efficiency.

• Benefit: Properly installed and insulated solar fluid pipes ensure efficient heat transfer from the collectors to the storage tank, maximizing system performance.

6. Install the Temperature and Pressure Sensors
Temperature sensors monitor the heat of the water in the storage tank, while pressure sensors track the fluid pressure in the system. Both are essential for managing the system's performance and preventing overheating or system failure.
Step-by-Step Instructions:

1. Install the Temperature Sensors: Attach the temperature sensors to the outlet of the storage tank to monitor the water temperature. These sensors provide feedback to the system’s controller, ensuring the system is operating within the desired temperature range.
2. Install the Pressure Sensors: Place pressure sensors at key points in the system, including at the storage tank and solar fluid loop. These sensors will alert you to any pressure issues that may arise, such as leaks or blockages.
3. Connect to Controller: Connect the sensors to the controller of the system, which will use the data to regulate the pump operation, activate the backup heating system if necessary, and prevent overheating.

• Benefit: Proper installation of temperature and pressure sensors allows for precise control of the system, ensuring safe and efficient operation.

7. Perform Final System Check
After installing the collectors and making all necessary connections, perform a final check to ensure the system is functioning correctly.
Steps for Final Check:

1. Inspect All Connections: Check all plumbing, pipe fittings, and electrical connections to ensure they are secure and leak-free.
2. Fill the System: Fill the system with solar fluid (usually a water-glycol mixture) to prevent freezing and ensure proper heat transfer.
3. Test the System: Turn on the system and observe the flow of the heat transfer fluid, checking that it is circulating properly and that the temperature sensors are accurately reading the system's performance.
4. Check for Leaks: Ensure that there are no leaks in the system, particularly at the connections between the solar collectors, pipes, and storage tank.
5. Monitor Initial Performance: Allow the system to run for a few hours to see how it heats water. Monitor the temperature and ensure the system is working as expected.

• Benefit: A final system check ensures that everything is functioning properly and that the system will operate at optimal efficiency.

​
Installing the solar collectors for your evacuated tube solar water heater requires careful planning and precise execution. By following these steps—selecting the right location, installing the mounting brackets, positioning the collectors, connecting the pipes, and testing the system—you can ensure that your solar water heating system operates efficiently and delivers reliable hot water. Proper installation is the foundation of a well-functioning system that will provide long-term energy savings and environmental benefits. ​For more info contact Solar Water Heater or call us at +971 4 2522966.
