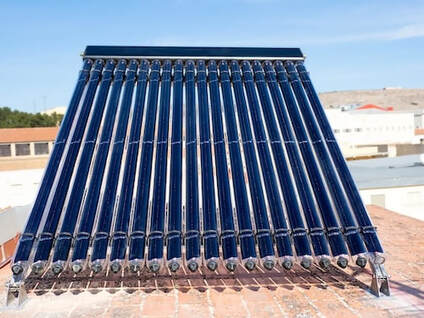

While evacuated tube solar collectors are highly efficient in capturing and utilizing solar energy, there are times when the system may not generate enough heat, such as during cloudy days, extended periods of low sunlight, or cold weather. In these situations, a backup heating system can ensure that your hot water needs are met without interruption. By integrating a backup heating system with your solar collectors, you can maximize efficiency, reliability, and energy savings. Here’s how to incorporate a backup heating system for improved overall performance:

1. Choosing the Right Backup Heating System
When selecting a backup heating system, it’s important to choose one that works in harmony with your evacuated tube solar collector system and meets your specific hot water needs. Common types of backup heating systems include:

• Electric Water Heaters: These are commonly used in smaller systems or as a supplementary option for solar water heating systems. They provide reliable heating when solar energy is insufficient, but their energy consumption can be higher compared to other options.
• Gas Boilers: These are more energy-efficient than electric systems and are ideal for larger applications. A gas boiler can be integrated with your solar system to take over heating duties when solar energy is unavailable.
• Heat Pumps: These are energy-efficient systems that extract heat from the air or ground to heat water. They work well in conjunction with evacuated tube collectors, providing a more energy-efficient backup option compared to electric water heaters.
• Hybrid Systems: Some solar water heating systems come with a hybrid setup, where the solar collectors and backup system work together seamlessly. This is particularly useful for ensuring continuous supply of hot water.
• Benefit: Choosing a suitable backup system ensures that your solar system performs optimally even when solar energy is not available, without compromising energy efficiency.

2. Integration with the Solar System
A backup heating system can be integrated with your solar water heating system through a controller that manages the operation of both the solar collectors and the backup system. The integration allows the backup system to kick in only when solar energy is insufficient, and the solar system can provide the majority of the heating during peak sun hours. This smart integration helps to ensure:

• Solar Priority: The system gives priority to solar energy for heating water and only activates the backup system when solar energy falls short.
• Automated Operation: The backup system is activated automatically when the water temperature in the storage tank drops below a certain threshold. This ensures that you don’t need to manually switch between systems.
• Benefit: Seamless integration ensures that the backup system is used efficiently and only when necessary, reducing energy consumption and maximizing the effectiveness of your solar water heating system.

3. Sizing the Backup Heating System Appropriately
When adding a backup heating system, it’s important to size it appropriately based on the amount of hot water your system requires. If the backup system is too large, it may run too frequently, using more energy than necessary. If it’s too small, it may not be able to meet your hot water needs during periods of low solar energy generation.

• Solar Demand: Understand your daily hot water demand and the amount of solar energy that your system can provide under normal conditions.
• Backup Contribution: The backup system should only provide enough energy to meet your needs when the solar collectors aren’t producing sufficient heat, not more.
• Benefit: Proper sizing of the backup system ensures that you’re not wasting energy or money while still maintaining an adequate supply of hot water.

4. Optimize Efficiency by Using Low-Energy Backup Systems
To minimize the impact of the backup heating system on your energy costs, consider opting for a low-energy or high-efficiency backup system. These systems are designed to use less energy than traditional backup heaters, ensuring that your overall system remains cost-effective and efficient. Options include:

• Gas Boilers with high AFUE (Annual Fuel Utilization Efficiency) ratings, which deliver more heat for less fuel.
• Heat Pumps, which are up to 3-4 times more efficient than electric heating elements because they move heat rather than generate it directly.
• Hybrid Electric Systems that combine the benefits of both solar energy and high-efficiency electric heating.
• Benefit: Choosing a high-efficiency backup system reduces your overall energy consumption, ensuring that even when solar energy is unavailable, you are still conserving energy and keeping costs down.

5. Use Smart Controllers for Efficient Energy Management
Smart controllers are an excellent tool for optimizing the operation of both solar and backup systems. These controllers can automatically adjust the operation of the backup heating system based on real-time data about solar energy production, water temperature, and time of day. By using smart controllers, the system can:

• Monitor solar performance: When solar radiation is high, the system can automatically reduce or turn off the backup heater.
• Schedule heating times: The controller can schedule the backup system to operate during off-peak electricity hours or when it’s most cost-effective to use.
• Track temperature fluctuations: The smart controller can monitor the water temperature in the storage tank and activate the backup system only when necessary, ensuring efficiency.
• Benefit: A smart controller maximizes the efficiency of both the solar and backup systems, ensuring that energy is used optimally while maintaining a steady supply of hot water.

6. Consider Backup Systems for Larger Applications
For larger-scale commercial or industrial applications, backup heating systems may be required to meet the high demand for hot water. In these cases, a high-capacity backup system should be incorporated alongside a sufficiently large solar collector array. Options include:

• Large gas or electric boilers.
• Combined heat and power (CHP) systems, which can provide both hot water and electricity.
• Industrial heat pumps that extract heat from air, water, or ground sources to provide additional heating.
• Benefit: For large systems, backup solutions ensure that the solar system is not solely relied upon, preventing interruptions to hot water supply and ensuring continuous, efficient operation.

7. Seasonal Considerations for Backup Heating
Backup heating systems are especially useful in winter months when solar radiation is lower, or in regions with significant cloud cover. During the off-season, the system may require more backup heat to maintain a steady supply of hot water. However, to optimize energy savings:

• Use a programmable controller to reduce backup system use during the day when solar radiation is available.
• Increase the solar array size to capture more energy during the summer months, ensuring that the system is adequately sized for winter demands.
• Benefit: Seasonal adjustments and increased solar capacity help reduce reliance on the backup system, especially during the months with less solar energy.

Incorporating a backup heating system into your evacuated tube solar water heating system is an excellent way to ensure reliable hot water year-round, even during periods of low sunlight. By sizing the backup system appropriately, using low-energy options, and incorporating smart controllers, you can ensure that the system operates at peak efficiency without wasting energy. This approach ensures consistent hot water, reduces reliance on grid power, and helps you maintain the cost-effectiveness of your solar investment, making it an ideal solution for both residential and commercial applications. For more info contact Solar Water Heater or call us at +971 4 2522966.
