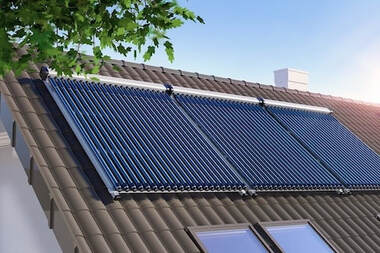

Evacuated tube solar collectors are widely used where high thermal efficiency and low heat loss are required. Within this technology, there are two distinct heat transfer designs: heat pipe evacuated tube panels and direct flow (U-tube) evacuated tube panels.
Although both rely on vacuum insulation, their internal working principles, installation requirements, and maintenance behavior differ significantly. Understanding these differences is critical for selecting the right system for a specific application.


Heat Pipe Evacuated Tube Panels
How Heat Pipe Evacuated Tube Panels Work
In a heat pipe system:

• Each evacuated glass tube contains a sealed copper heat pipe
• The heat pipe is filled with a small amount of volatile fluid
• Solar energy heats the absorber surface
• The fluid evaporates and rises to the condenser section at the top
• Heat is transferred to water in the manifold
• The vapor condenses and returns by gravity to repeat the cycle

No water flows inside the glass tube itself.

Key Characteristics of Heat Pipe Panels

• Heat transfer is indirect
• Tubes are dry (no water inside)
• Individual tubes can be replaced without draining the system
• Lower risk of leakage from broken tubes
• Requires correct tilt angle for gravity return

Direct Flow (U-Tube) Evacuated Tube Panels
How Direct Flow Evacuated Tube Panels Work
In a direct flow system:

• A U-shaped copper tube runs inside each evacuated glass tube
• Water or heat-transfer fluid flows directly through the tube
• Solar heat is transferred straight into the circulating fluid
• Heated water exits the tube and flows to the manifold

In this design, the fluid inside the system is exposed directly to solar heating.

Key Characteristics of Direct Flow Panels

• Heat transfer is direct
• Higher instantaneous heat gain under ideal conditions
• Higher internal pressure inside tubes
• Tube replacement requires system shutdown and draining
• More sensitive to scaling and water quality

Key Differences Between Heat Pipe and Direct Flow Panels
Heat Transfer Method

• Heat Pipe: Indirect heat transfer using phase-change fluid
• Direct Flow: Direct heating of circulating water or fluid

The indirect method provides better protection against leaks and pressure stress.

Installation Orientation

• Heat Pipe: Requires minimum tilt angle (usually 20–30°)
• Direct Flow: Can operate at a wider range of tilt angles

Incorrect tilt affects heat pipe performance more than direct flow systems.

Maintenance and Serviceability

• Heat Pipe Panels:
  • Easier tube replacement
  • Minimal downtime
  • Lower risk during tube breakage
• Direct Flow Panels:
  • Tube replacement is more complex
  • System must be drained
  • Higher maintenance effort

Pressure and Safety

• Heat Pipe:
  • No system pressure inside tubes
  • Safer in high-temperature stagnation
• Direct Flow:
  • System pressure inside tubes
  • Higher stress during overheating conditions

Performance in Cold Conditions

• Both perform well due to vacuum insulation
• Direct flow systems may offer slightly higher efficiency
• Heat pipe systems provide better reliability in freezing conditions

Sensitivity to Water Quality

• Heat Pipe: Less affected by scaling and hard water
• Direct Flow: More sensitive to scale formation inside tubes

This is a critical factor in regions with high mineral content in water.

Application Suitability
Heat Pipe Evacuated Tube Panels Are Best For:

• Cold and temperate climates
• Regions with freezing risk
• Projects where easy maintenance is required
• Installations prioritizing safety and longevity

Direct Flow Evacuated Tube Panels Are Best For:

• Controlled installations with good water quality
• Systems requiring maximum thermal output
• Locations with skilled maintenance support
• Applications with stable operating conditions

Limitations in Hot Climate Regions
In hot climates:

• Both systems can face overheating risks
• Direct flow panels experience higher pressure stress
• Heat pipe panels offer slightly better safety margins
• Flat plate collectors are often preferred overall

Careful system design is essential if evacuated tube panels are used in such regions. For more info contact Solar Water Heater Dubai or call us at +971 4 2522966.
