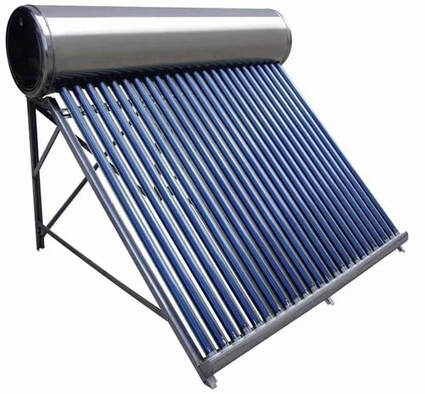

Connecting the plumbing for a solar water heater system involves linking the panels to the storage tank and ensuring that water can flow efficiently through the system. This step is critical for the functionality and performance of the system. Follow these detailed steps to properly connect the plumbing.

1. Plan the Pipe Layout
Determine Pipe Routes

• Plan the route for the pipes to connect the solar panels to the storage tank.
• Ensure the pipes run as straight and short as possible to minimize heat loss and pressure drop.

Consider Roof and Tank Locations

• If your tank is located on the ground, you may need to route pipes from the roof to the tank, making sure the system has proper gravity flow or uses a circulating pump.
• For active systems, ensure there’s a space for the pump between the panels and tank.

2. Choose the Right Pipes and Fittings
Type of Pipes

• Use insulated copper, PEX (cross-linked polyethylene), or CPVC pipes for best heat retention and durability.
• Copper is typically used for higher efficiency but may be more expensive than PEX.
• PEX is more flexible and easier to install, while CPVC is commonly used for cold water supply.

Size of Pipes

• Use pipes with the correct diameter to ensure efficient flow and minimal resistance. Typically, ¾ inch or 1-inch diameter pipes are used.

Fittings

• Use the correct fittings for connecting the pipes to the panels and storage tank.
  • T-joints for splitting pipes.
  • Elbows to make turns in the pipe.
  • Shut-off valves to control water flow.
  • Check valves to prevent backflow.

3. Install the Connections to the Solar Panels
Attach Pipes to the Panel Inlet and Outlet

• Solar water heater panels typically have two connection points—an inlet for cold water entering the panel and an outlet for hot water exiting.
• Attach the pipes securely to the inlet and outlet connections using the appropriate fittings.

Seal Pipe Connections

• Use Teflon tape on threaded connections to create a tight, leak-free seal.
• Make sure to tighten fittings securely to prevent leaks but avoid over-tightening, which can cause damage.

4. Connect the Pipes to the Storage Tank
Cold Water Inlet

• Connect the cold water inlet pipe from the solar panels to the cold water inlet port on the storage tank.
• Ensure a check valve is installed on the inlet pipe to prevent the backflow of hot water into the cold supply.

Hot Water Outlet

• Connect the hot water outlet from the solar panels to the hot water outlet on the storage tank.
• This allows the heated water from the panels to flow into the tank.

5. Install the Pump (For Active Systems)
Position the Pump

• If your system is active (using a pump to circulate the water), install the circulating pump between the solar panels and the storage tank.
• Ensure the pump is installed below the level of the tank to allow gravity to assist with water flow when the pump is off.

Electrical Connection (if applicable)

• For electrically-powered pumps, connect the pump to the electrical supply. Ensure all wiring is done according to safety codes.

6. Insulate the Pipes
Apply Insulation

• To minimize heat loss, insulate all exposed pipes that carry hot water from the solar panels to the storage tank.
• Use foam pipe insulation or insulated jackets for best results.
• In colder climates, insulation is crucial to prevent freezing and maximize system efficiency.

7. Install Expansion Tank (if required)
Why an Expansion Tank is Needed

• An expansion tank absorbs water expansion caused by heat, preventing excess pressure in the system.
• Install the expansion tank near the storage tank, following the manufacturer's instructions.

8. Test for Leaks
Open the Valves

• Open the valves on the inlet and outlet pipes to allow water to flow through the system.
• Check all pipe connections and fittings for any signs of leakage.

Tighten or Reseal

• If you find any leaks, tighten the connections or apply more sealant or Teflon tape where necessary.

9. Check System Functionality
Test the Flow

• Allow the system to run for a while and check the water flow between the panels and storage tank.
• If you have an active system, ensure the pump is circulating water properly and that the temperature is gradually rising in the storage tank.

Monitor the Temperature

• Use a thermometer to ensure the water is heating up to the desired temperature. If you have a temperature controller, check that the system is responding as expected.

10. Final Check

• Double-check that all components are secure and functioning correctly.
• Ensure there are no leaks, and the system is operating smoothly.
• If necessary, adjust the pump settings or temperature controller to optimize performance.

Properly connecting the plumbing for your Solar Water Heater is essential to ensure efficient water flow and system performance. Carefully follow the steps for connecting pipes, sealing fittings, and checking for leaks to guarantee the system runs smoothly. If you’re unsure about any part of the plumbing setup, it’s advisable to consult with a professional installer. For more info contact Solar Water Heater Supplier in UAE or call us at +971 4 2522966.
