The solar absorber coating is a key component in the design of evacuated tube solar water heaters, as it significantly influences the system’s ability to capture and retain solar energy. This coating is applied to the inner surface of the evacuated tubes or the heat pipes, and its primary function is to absorb sunlight and convert it into heat, which is then transferred to the heat transfer fluid inside the pipe.
Here's a detailed look at the role, materials, and application process for solar absorber coatings:

1. Function of the Solar Absorber Coating

• Maximizing Solar Absorption: The main purpose of the absorber coating is to absorb as much solar radiation as possible. The coating enhances the efficiency of the evacuated tube by increasing the amount of sunlight that is captured and converted into thermal energy.
• Reducing Heat Loss: The coating is designed to minimize radiative heat loss by reflecting back the infrared radiation. This helps ensure that the absorbed heat is retained within the system and not lost to the environment.
• Improving Efficiency: A well-designed solar absorber coating increases the overall thermal efficiency of the evacuated tube, which directly impacts the performance of the solar water heater.

2. Materials Used for Solar Absorber Coatings
The materials used for the absorber coating are critical to the performance of the solar collector. They must have high solar absorption rates and low thermal emittance to ensure effective heat transfer. Some commonly used materials include:

• Selective Coatings:
  • Selective coatings are engineered to absorb a large portion of the solar spectrum (particularly visible light) and reflect a minimal amount of infrared radiation. These coatings typically consist of metal oxide layers or compounds that enhance absorption while reducing the loss of thermal energy.
• Copper-Based Coatings:
  • Copper is often used in solar absorber coatings due to its excellent thermal conductivity and high solar absorption properties. A copper-based coating allows for efficient heat transfer to the heat pipe or fluid inside the evacuated tube.
  • Copper Oxide Coatings: Copper oxide is sometimes used as a selective coating because it has a high absorption rate and is relatively resistant to corrosion.
• Aluminum-Based Coatings:
  • Aluminum coatings are another option, as aluminum has high solar absorption characteristics. When anodized or treated with specific coatings, aluminum can achieve the desired selective properties for efficient solar energy conversion.
• Titanium Nitride and Other Advanced Coatings:
  • Titanium nitride (TiN) is a durable material that offers excellent resistance to corrosion and wear while maintaining high thermal performance. This coating is highly reflective to infrared radiation, making it ideal for use in solar collectors.
  • Other advanced coatings, like chromium oxide and ceramic-based materials, are also utilized for their high efficiency in absorbing solar radiation and minimizing heat loss.
• Black Chrome Coatings:
  • One of the most popular and effective coatings for solar thermal collectors is black chrome. This coating combines the high absorptive qualities of a black surface with the reflective capabilities of chrome. It is particularly useful for maximizing sunlight absorption and minimizing heat loss.
• Spray Coatings and Thin Films:
  • Some evacuated tube manufacturers use spray coating or thin-film technology to apply absorber coatings. These methods involve applying a thin layer of coating to the interior surface of the tube, which can be customized for specific solar absorption and durability requirements.

3. The Absorber Coating Application Process
The application of the solar absorber coating involves precise techniques to ensure that the coating is uniform, durable, and effective in absorbing solar energy. The common processes for applying these coatings include:

• Vacuum Deposition (PVD and CVD):
  • Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD) are commonly used methods for applying metal oxide or other advanced coatings to the inner surface of the evacuated tube.
  • These methods ensure the coating adheres strongly to the glass or metal surface, creating a uniform and highly durable layer. PVD is particularly effective for creating selective coatings that have low infrared emissivity while maximizing solar absorption.
• Spray Coating:
  • In some cases, a spray coating method is employed, where a liquid suspension of the coating material is sprayed onto the inner surface of the glass tube. The tube is then heated to cure the coating and ensure it bonds effectively to the surface.
  • This method is cost-effective and efficient for large-scale manufacturing but requires careful control to avoid uneven coating thickness or defects.
• Electroplating:
  • Electroplating involves depositing a thin layer of metal (often copper or aluminum) onto the surface of the tube by passing an electric current through a solution containing metal ions.
  • This process ensures a consistent and durable coating, which is critical for maintaining the long-term performance of the solar heater.
• Laser and Plasma Treatment:
  • Laser treatment or plasma spraying is sometimes used to enhance the selective coatings’ adhesion to the tube surface. These techniques allow for precise control of the coating’s properties, ensuring that it has the desired absorption and emittance characteristics.

4. Characteristics of a Good Solar Absorber Coating
To ensure maximum efficiency, the solar absorber coating must exhibit the following key characteristics:

• High Solar Absorptance: The coating should absorb as much solar radiation as possible. This is typically measured by the solar absorptance (α), which is a value between 0 and 1. A value close to 1 indicates high solar energy absorption.
• Low Thermal Emittance: The coating should have low thermal emittance (ε), meaning it should reflect as much infrared radiation as possible. A low emittance value helps retain the heat captured from sunlight within the tube, improving the overall thermal efficiency.
• Durability and Corrosion Resistance: The coating must be able to withstand outdoor conditions, including exposure to UV radiation, rain, high temperatures, and pollutants. This ensures the long-term reliability of the solar water heater.
• Thermal Stability: The absorber coating should remain stable over time, even when exposed to high temperatures. This is particularly important in the hot, sunny climates where evacuated tube solar water heaters are most commonly used.
• Resistance to Wear and Tear: Over time, the coating must resist degradation from physical wear and environmental exposure. This ensures the absorber maintains its high efficiency throughout the lifespan of the solar water heater.

5. Benefits of a High-Quality Absorber Coating

• Increased Efficiency: A high-quality solar absorber coating ensures maximum solar energy absorption, which leads to better overall system efficiency and reduced dependence on external energy sources.
• Longer Lifespan: Coatings that are durable and corrosion-resistant extend the lifespan of the solar water heater, ensuring that it performs well over many years with minimal maintenance.
• Improved Thermal Retention: A well-applied selective coating helps reduce heat loss, ensuring that the energy absorbed during the day is retained in the system, even during cooler periods.

The solar absorber coating is a critical component that determines the efficiency and performance of evacuated tube solar water heaters. By utilizing advanced materials and precise application techniques, manufacturers can produce coatings that maximize solar energy absorption, minimize heat loss, and ensure long-term durability. This contributes to the overall effectiveness of solar water heaters, helping to reduce energy consumption and support sustainable energy use. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

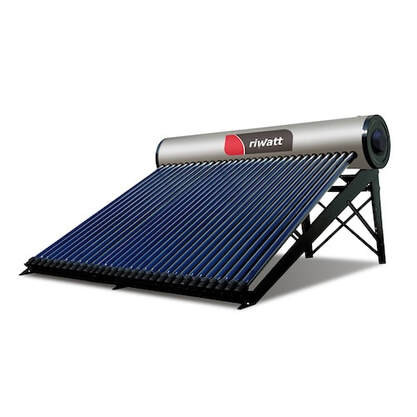

The outer casing and assembly of evacuated tube solar water heaters are vital to the system’s durability, heat retention, and overall efficiency. The casing serves as both a protective layer for the internal components (like the glass tube and heat pipe) and as an insulating barrier to enhance thermal performance. This step in the manufacturing process ensures that the evacuated tube is securely housed, resistant to mechanical damage, and able to withstand environmental conditions such as wind, rain, and UV exposure.
Here’s a breakdown of the outer casing and assembly process:

1. Materials for the Outer Casing
The materials used for the outer casing are selected to provide durability, corrosion resistance, and effective insulation. Common materials include:

• Stainless Steel:
  • Stainless steel is the most common material used for the outer casing due to its corrosion resistance, strength, and aesthetic appeal. It is also resistant to high temperatures and can withstand the environmental stresses of outdoor installations.
  • Aesthetic Appeal: Stainless steel is sleek, modern, and often preferred for its shiny, durable finish.
  • Durability: It withstands impact, weather, and UV radiation, ensuring that the solar water heater remains functional and attractive over time.
• Aluminum:
  • In some designs, aluminum is used due to its lightweight nature and corrosion resistance. It is less expensive than stainless steel and offers a balance between durability and cost.
• Galvanized Steel:
  • Galvanized steel is sometimes used for the casing as a cost-effective solution. It is coated with a layer of zinc to protect it from rust and corrosion, though it is less durable than stainless steel.
• Polyurethane or Other Insulating Materials:
  • Some outer casings have insulating layers made of materials like polyurethane foam or mineral wool to enhance thermal retention and minimize heat loss. These materials help improve the energy efficiency of the system by reducing heat transfer to the outside environment.

2. Fabrication of the Outer Casing
The outer casing is fabricated to enclose the evacuated tubes, providing a protective barrier while also ensuring proper alignment and structural integrity.

• Cutting and Shaping:
  • Stainless steel or aluminum sheets are cut to the required dimensions and shaped into the appropriate form to house the evacuated tubes. The design includes space for the tubes to be mounted and aligned securely.
• Forming the Outer Shell:
  • The metal is shaped into a rectangular or cylindrical form (depending on the design) using machines like presses or rollers. The casing needs to be shaped to fit multiple tubes and allow for their secure mounting within the manifold.
• Welding or Fastening:
  • In the case of stainless steel or aluminum, the casing is welded or riveted to create a seamless and sturdy outer shell. This ensures that the casing is structurally sound and can withstand environmental stresses.
  • Sealant Application: To further ensure weatherproofing, silicone sealants are often applied to the joints and seams, especially around the edges where the casing meets the glass tubes.

3. Insulation Layer (If Applicable)

• Insulation Material Application:
  • An insulation layer may be applied to the inner surface of the outer casing, typically made from polyurethane foam or mineral wool. The purpose of this insulation is to reduce heat loss from the evacuated tubes and improve the overall efficiency of the solar water heater system.
  • The insulation material is carefully fitted to ensure there are no gaps that would allow heat to escape. The insulation should also be weather-resistant to prevent it from absorbing moisture, which could reduce its effectiveness.

4. Manifold Integration

• Mounting the Evacuated Tubes:
  • Once the outer casing is fabricated, the evacuated tubes are inserted into the casing. The tubes are positioned within the manifold (a pipe system that collects heat from all the tubes) in such a way that they are securely mounted and properly aligned for optimal heat transfer.
• Manifold Assembly:
  • The manifold is an essential part of the casing and serves as the conduit for transferring heat from the evacuated tubes to the water storage tank. It is designed to allow the heat pipe to transfer thermal energy efficiently to the water, ensuring that the system is both effective and energy-efficient.
• Connection Points:
  • The manifold connects the evacuated tubes to the heat exchanger inside the water storage tank. The manifold must be carefully sealed at connection points to prevent any leaks or loss of thermal energy.

5. Integrating the End Caps and Connectors

• End Caps:
  • The end caps are fitted to the ends of the casing and are designed to protect the tubes and manifold from dirt, moisture, and mechanical damage. The end caps are often made of the same material as the casing (stainless steel or aluminum).
  • Sealing and Protection: End caps may also incorporate rubber or silicone seals to ensure the casing is airtight and weatherproof.
• Connectors for Water Inlet/Outlet:
  • Connectors are installed to allow the flow of water between the manifold and the water storage tank. These connectors are usually designed for easy installation and maintenance, with durable seals to prevent leaks.

6. Thermal Coupling with Heat Pipe

• Heat Pipe Integration:
  • The heat pipes inside the evacuated tubes are thermally coupled with the heat exchanger in the manifold. This ensures that the heat absorbed by the heat pipes is transferred to the water efficiently.
  • Thermal Paste or Adhesive: In some designs, thermal paste or heat-conducting adhesive is used to improve the heat transfer between the heat pipe and the heat exchanger.

7. Final Testing and Quality Control

• Leak Testing:
  • Once the casing is assembled and the evacuated tubes are mounted, the system undergoes leak testing to ensure there are no issues with the seals or connectors. This test involves pressurizing the system and checking for any signs of leakage.
• Heat Efficiency Test:
  • The system is also subjected to heat efficiency tests, where it is exposed to simulated sunlight, and the heat transfer from the evacuated tubes to the water is monitored. The goal is to ensure that the system is performing optimally and that there is minimal heat loss through the casing.

8. Packaging and Shipping

• Protection During Transport:
  • After the system passes all quality control checks, it is packaged carefully to protect the evacuated tubes and outer casing during transport. The packaging often includes protective foam, shrink-wrap, and reinforced boxes to prevent damage.
• Shipping:
  • The finished solar water heater units are then ready to be shipped to distributors, installers, or end customers. The packaging ensures that the units remain in perfect condition throughout transit.

The outer casing and assembly of evacuated tube solar water heaters play a significant role in ensuring the system’s longevity, thermal efficiency, and overall functionality. By selecting the right materials, integrating effective insulation, and ensuring airtight seals, manufacturers can create durable and highly efficient solar water heating systems. Proper assembly of the manifold, heat pipe integration, and end caps ensures that the system can withstand environmental stresses while maximizing heat absorption and energy efficiency. This final assembly process is critical for the performance of the solar water heater, ensuring that it operates optimally throughout its lifespan. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

The insertion of the heat pipe is a crucial step in the manufacturing process of evacuated tube solar water heaters. The heat pipe is responsible for transferring the heat absorbed by the evacuated tube to the water in the storage tank. This process plays a significant role in the overall efficiency and effectiveness of the solar water heater system.
Here’s a detailed breakdown of how the heat pipe is inserted into the evacuated tube:

1. Understanding the Role of the Heat Pipe

• Heat Transfer: The heat pipe is a critical component that helps transfer the absorbed solar energy from the glass tube to the water inside the system. The heat pipe contains a special fluid that evaporates when it absorbs heat and condenses as it releases the heat to the water in the tank.
• Closed System: The heat pipe forms a closed loop, with the fluid circulating within it, transferring heat from the solar collector (the evacuated tube) to the heat exchanger (usually located in the manifold).

2. Design and Preparation of the Heat Pipe

• Material Selection: Heat pipes are typically made from copper due to its excellent thermal conductivity. Copper ensures that the heat from the evacuated tube is transferred efficiently to the water.
• Fluid Selection: The heat pipe is filled with a special heat transfer fluid (such as water, ethanol, or ammonia) that has a low boiling point. This allows the fluid to evaporate quickly and transfer heat at a higher rate.
• Length and Diameter: The heat pipe is manufactured to fit precisely within the glass evacuated tube. It is usually about the same length as the tube, and its diameter is slightly smaller than the interior of the tube to allow it to fit comfortably inside.

3. Inserting the Heat Pipe into the Evacuated Tube

• Alignment: The heat pipe is aligned with the open end of the evacuated tube. The tube typically has a flange or connector at one end, where the heat pipe will be inserted. The heat pipe needs to be aligned carefully to ensure it runs straight and does not touch the glass, as this could affect the efficiency of heat transfer.
• Insertion Process: The heat pipe is gently inserted into the evacuated tube, with the copper end positioned toward the interior of the tube. In some designs, the heat pipe is slightly pre-heated to help it slide into the evacuated tube without causing damage to the inner coating or the tube itself.
• Insertion Tools: Some manufacturers use specialized tools to hold the heat pipe in place while ensuring that it is aligned properly and inserted smoothly without damaging the tube. These tools ensure that the heat pipe does not bend or get deformed during the insertion process.

4. Sealing the Heat Pipe Inside the Evacuated Tube

• Sealing the Tube: Once the heat pipe is fully inserted into the evacuated tube, the tube needs to be sealed around the heat pipe. This is usually done using a high-temperature adhesive or by applying a heat sealant around the point where the heat pipe exits the tube.
  • Maintaining the Vacuum: It is essential that the seal maintains the vacuum inside the tube. The heat pipe should not disturb the vacuum environment, as the vacuum is critical for the thermal insulation of the system.
• Specialized Sealing: In some designs, the point where the heat pipe enters the tube is sealed using a high-quality silicone or rubber sealant that forms a tight seal around the pipe. This helps prevent moisture from entering the tube and ensures that the vacuum remains intact.

5. Testing and Inspection

• Leak Testing: After inserting and sealing the heat pipe, the entire system is tested for leaks. The system is placed in a vacuum chamber or subjected to a pressure test to ensure that no air or moisture has infiltrated the tube.
• Thermal Conductivity Test: The heat pipe’s thermal efficiency is tested by applying a controlled heat source and monitoring how well the heat is transferred from the tube to the pipe. This ensures that the heat pipe is functioning as designed.
• Mechanical Inspection: The heat pipe is also inspected to make sure it is properly aligned within the tube and that there are no visible deformities or damage. This is essential for ensuring that the system will operate efficiently without risk of mechanical failure.

6. Integration with the Manifold and Storage Tank

• Heat Transfer Integration: Once the heat pipe is securely inserted and sealed inside the evacuated tube, it is connected to the manifold (the main assembly that collects and distributes heat). The manifold often houses multiple evacuated tubes and channels heat into the heat exchanger connected to the water storage tank.
• Thermal Coupling: The heat pipe is connected to the heat exchanger through a thermal coupling, ensuring that the heat absorbed by the heat pipe is transferred effectively to the water in the tank.

7. Final Assembly

• Connecting the Tubes to the Manifold: After the heat pipes are inserted into the evacuated tubes, the tubes are placed into the collector manifold, which holds them in position. The manifold allows heat to be collected from each tube and distributed into the system.
• Water System Integration: The final assembly includes connecting the manifold to the water storage tank and ensuring that the heat exchanger is properly integrated. The heat pipe helps heat the fluid in the system, which then warms the water in the tank.

The insertion of the heat pipe into the evacuated tube is a critical step in ensuring that the solar water heater can efficiently transfer heat. The heat pipe’s material, fluid, and precise alignment within the evacuated tube all play significant roles in the system's efficiency. Proper sealing and integration with the manifold ensure that the heat is effectively transferred to the water storage tank while maintaining the vacuum and insulation properties of the tube. The efficiency of this process directly influences the performance of the solar water heater system, making it an essential component of the overall design. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

Creating a vacuum inside the glass tubes is one of the most critical steps in the manufacturing process of evacuated tube solar water heaters. The vacuum provides exceptional thermal insulation, which is essential for maintaining heat within the tube and preventing heat loss to the external environment. Here’s a detailed breakdown of how the vacuum is created and why it’s so important:

1. Understanding the Role of Vacuum in Evacuated Tubes

• Thermal Insulation: The vacuum acts as an insulating layer, preventing heat transfer via conduction and convection. Since there is no air or matter inside the tube, heat cannot easily escape through the vacuum. This significantly improves the thermal efficiency of the solar water heater.
• Reduction of Heat Loss: Without a vacuum, the heat would be lost through the glass tube, making the solar water heater much less efficient. The vacuum helps maintain the high temperatures inside the tube, which is essential for effective solar energy absorption and heat transfer.
• Enhanced Durability: The vacuum also helps protect the components inside the tube, such as the heat pipe, from damage due to external temperature fluctuations or humidity.

2. Vacuum Pumping Process

• Initial Sealing: The first step in creating the vacuum is to seal one end of the glass tube. This is done using a high-precision sealing machine that uses heat to fuse the glass at one end of the tube, forming a closed container.
• Vacuum Pumping: After the first seal is made, the other end of the tube remains open. A vacuum pump is connected to this open end, and it begins to remove the air and gases from inside the glass tube. The goal is to reduce the internal pressure as much as possible.
  • High Vacuum: The vacuum pump is capable of creating a high vacuum, typically in the range of 0.001-0.0001 atmospheres (100 to 1000 times lower than atmospheric pressure), ensuring that most of the air is removed.
  • Continual Monitoring: During the pumping process, sensors monitor the pressure inside the tube to ensure that it’s being evacuated properly. The tube must achieve the desired low-pressure environment before proceeding to the next step.

3. Ensuring Vacuum Integrity

• Leak Detection: After the air is evacuated, the vacuum is maintained temporarily while the second end of the tube is sealed. To ensure that no air leaks into the tube after sealing, the tube undergoes a leak detection test.
  • Pressure Monitoring: The integrity of the vacuum is checked by monitoring any pressure rise inside the tube. If the vacuum pressure increases, it indicates that air or gases have leaked into the tube, and it must be resealed.
  • Helium Leak Testing: In some cases, manufacturers use helium leak testing, which involves introducing a small amount of helium around the seals. Helium, being a small molecule, can easily pass through any microscopic leaks, making it an ideal gas for detecting vacuum failures.
• Vacuum Seal Finalization: Once the tube passes the leak tests, the second end of the glass tube is sealed using a specialized heat sealing machine, ensuring that the vacuum remains intact for the tube’s entire lifespan.

4. Types of Vacuum in Evacuated Tubes

• High Vacuum: The most common vacuum used in evacuated tube solar water heaters is high vacuum (HV), where the pressure inside the tube is reduced to 0.001 to 0.0001 atm. This vacuum level maximizes thermal insulation, providing excellent energy efficiency.
• Ultra-High Vacuum (UHV): In some cases, manufacturers may use ultra-high vacuum (UHV) for specific applications. This involves creating a vacuum of 10^-9 atm or lower. While this is not typical for most solar water heaters, it may be used in specialized, high-performance applications.
• Low Vacuum: Low vacuum (LV) is used in some designs, but it is less common and offers lower insulation efficiency than high vacuum systems. Low vacuum is generally avoided in premium evacuated tube systems due to its less efficient thermal performance.

5. Sealing the Tube After Evacuation

• Sealing Process: Once the desired vacuum level is achieved, the second end of the glass tube is sealed using a process called “fire polishing” or “flame sealing.” This involves using a controlled flame to heat the glass and fuse it together, creating a permanent, airtight seal.
  • Vacuum Retention: The final seal is critical for ensuring that the vacuum inside the tube remains intact for the entire lifespan of the solar water heater. The seal must be strong enough to withstand external pressure and environmental stressors, including temperature fluctuations, wind, and humidity.

6. Quality Control and Testing

• Vacuum Integrity Test: After sealing the tube, the integrity of the vacuum is checked once again. This is done using specialized equipment that monitors the pressure inside the tube. If there is any loss of vacuum, the tube is discarded or reprocessed.
  • Dimensional and Structural Tests: The glass tube is also tested for other quality parameters such as dimensional accuracy, structural integrity, and thermal performance. Tubes that fail these tests are rejected, ensuring only high-quality products move forward to the next stages of manufacturing.

7. Final Product and Packaging

• Visual Inspection: The vacuum-sealed glass tubes are visually inspected to ensure there are no cracks, imperfections, or defects that could compromise the vacuum or structural integrity.
• Packaging: Once the tubes pass all quality checks, they are carefully packaged to prevent damage during transportation and storage. Protective materials like foam are used to cushion the tubes and ensure that they are shipped in pristine condition.

Creating the vacuum inside the glass tubes is a highly specialized and delicate process that ensures the evacuated tube solar water heater’s thermal efficiency and durability. By eliminating the air inside the tube and maintaining a high vacuum, manufacturers create an environment that minimizes heat loss and maximizes energy retention. This process, along with stringent testing and quality control, ensures that the evacuated tube will provide optimal performance for many years, helping to harness solar energy efficiently. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

The production of glass tubes is one of the most critical steps in the manufacturing process of evacuated tube solar water heaters. These glass tubes serve as the primary component for creating the vacuum that enhances thermal insulation, which is vital for maximizing heat retention. Here’s a detailed look at the process of manufacturing the borosilicate glass tubes used in evacuated tube solar water heaters:

1. Material Preparation

• Borosilicate Glass:
  • The process begins with the preparation of raw materials, which include silica sand, soda ash, limestone, and boron oxide. These materials are mixed in precise proportions to create borosilicate glass. Boron is added to enhance the thermal resistance and durability of the glass.
  • Other additives, such as alumina or magnesium oxide, may also be included to improve the strength and thermal expansion properties of the glass.

2. Melting the Glass

• Glass Furnace:
  • The raw materials are then fed into a furnace where they are heated to temperatures ranging from 1,400°C to 1,600°C (2,550°F to 2,912°F). This high temperature causes the raw materials to melt into a molten glass.
  • The furnace is equipped with precise temperature controls to ensure the consistency of the molten glass, which is crucial for maintaining the uniformity and quality of the final product.

3. Glass Tube Formation

• Blowing or Drawing Process:
  • Blowing: One method used to form the glass tubes is the "blow and blow" process, where the molten glass is blown into a hollow shape using a controlled air pressure system. This process allows the glass to be formed into long, cylindrical tubes.
  • Drawing: Another method is the "drawing" process, where the molten glass is pulled vertically through a series of rollers and molds to form thin, even-walled tubes. This process is typically used for high-precision glass tubes.
  • Tube Length: The glass tubes are drawn to the desired length, which is usually between 1.5 meters (5 feet) to 2 meters (6.5 feet) long, depending on the design specifications of the solar water heater.

4. Shaping and Sizing

• Annealing:
  • After the glass has been formed into tubes, it must undergo an annealing process. The tubes are slowly cooled in an annealing oven, which ensures that any internal stresses in the glass are relieved and that the tube maintains its structural integrity.
  • This cooling process also ensures uniform thickness throughout the tube, which is important for its mechanical strength and thermal properties.
• Shaping:
  • In some cases, the glass tubes are further shaped using molds to achieve the desired diameter and length. Special attention is given to the thickness of the glass to ensure it can withstand thermal cycling and pressure without cracking.

5. Cleaning the Glass Tubes

• Cleaning:
  • Once the glass tubes have been formed and cooled, they are thoroughly cleaned to remove any surface impurities, dust, or oils that might interfere with subsequent processes. This is done using high-pressure air, water, or specialized cleaning agents.
  • The cleaning ensures that the interior of the glass tube is free from contaminants, which could impact the performance of the evacuated tube solar water heater.

6. Coating the Glass Tubes

• Interior Coating:
  • The interior of the glass tubes is often coated with a special absorber coating to enhance the tube’s ability to absorb sunlight. These coatings are typically made of copper, aluminum, or other metals that improve the thermal absorption of the glass tube.
  • Selective Coating: The coating is applied in a vacuum chamber to ensure a smooth, even layer that maximizes solar absorption and minimizes thermal losses. The coating helps the tube absorb a broader spectrum of sunlight and convert it efficiently into heat.
• Exterior Coating:
  • Some manufacturers also apply an exterior coating to protect the glass from scratches, UV degradation, and other environmental factors. These coatings are often made from anti-reflective or corrosion-resistant materials that help preserve the performance of the tube over time.

7. Creating the Vacuum Seal

• Sealing Process:
  • One of the key steps in manufacturing evacuated tubes is creating the vacuum inside the glass tube. This is done by sealing one end of the glass tube using a heat sealer.
  • Vacuum Pumping: A vacuum pump is used to remove the air from inside the glass tube. The air is evacuated to create a low-pressure environment that enhances the insulating properties of the tube. The vacuum layer between the glass tubes acts as a thermal insulator, preventing heat loss from the inner heat pipe to the external environment.
• Sealing the Other End:
  • After the air is evacuated, the second end of the tube is sealed. A high-quality seal ensures that the vacuum is maintained throughout the lifespan of the evacuated tube.

8. Quality Control and Testing

• Vacuum Integrity Test:
  • To ensure that the vacuum seal is intact, manufacturers perform a vacuum integrity test. The tubes are placed in a vacuum chamber and monitored for any loss of vacuum pressure.
  • Dimensional Check: The dimensions of the glass tubes (length, diameter, thickness) are checked against specifications to ensure uniformity and that they meet the required tolerances.
• Strength Test:
  • Glass tubes undergo stress tests to evaluate their ability to withstand temperature fluctuations and mechanical forces. This includes tests to simulate thermal cycling, where the tubes are exposed to extreme temperature changes to ensure they do not crack or break under stress.

9. Final Inspection and Packaging

• Final Inspection:
  • Once the glass tubes pass all tests, they undergo a final visual inspection to ensure there are no cracks, defects, or imperfections. Any tubes that do not meet quality standards are removed from the production line.
• Packaging:
  • The finished glass tubes are carefully packaged to prevent any damage during transportation and storage. Protective materials, such as foam or cardboard, are used to cushion the tubes and avoid breakage.

The production of glass tubes for evacuated tube solar water heaters requires careful attention to detail at every stage of the manufacturing process. From selecting the right materials to forming, shaping, coating, and testing, each step plays a vital role in ensuring the final product's efficiency, durability, and performance. The quality of the glass tube directly impacts the performance of the solar water heater, making this part of the manufacturing process especially important for achieving optimal energy absorption and long-term reliability. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

The material selection process for evacuated tube solar water heaters is crucial for ensuring the system's efficiency, durability, and performance. Given that solar water heaters are exposed to harsh environmental conditions (high temperatures, UV radiation, and moisture), it is important to choose materials that can withstand these conditions while also maximizing heat absorption. Here’s a breakdown of the key materials used in the manufacturing process of evacuated tube solar water heaters:

1. Borosilicate Glass (For the Evacuated Tube)

• Properties:
  • High Thermal Resistance: Borosilicate glass can handle extreme temperature fluctuations without breaking, making it ideal for high-heat environments.
  • Low Thermal Expansion: This property reduces the risk of breakage under temperature changes, ensuring the glass maintains its structural integrity over time.
  • Strength and Durability: Borosilicate glass is much stronger and more durable than regular soda-lime glass, which is crucial for the evacuated tube's ability to resist mechanical stress.
  • Transparency: The glass is highly transparent to solar radiation, allowing maximum sunlight absorption.
• Usage: It is used to form the glass tubes that hold the vacuum, which is essential for the thermal insulation properties of the evacuated tube solar water heater.

2. Copper (For the Heat Pipe)

• Properties:
  • Excellent Thermal Conductivity: Copper is one of the best materials for conducting heat, which is why it’s used in the heat pipe. It ensures that heat is transferred efficiently from the solar collector to the water in the storage tank.
  • Corrosion Resistance: Copper naturally forms a protective oxide layer that resists corrosion, which is crucial for maintaining the heat transfer efficiency and longevity of the system.
  • Malleability: Copper can be easily shaped into various forms, allowing it to be crafted into thin heat pipes that fit precisely within the evacuated tube.
• Usage: Copper heat pipes are inserted into the evacuated tubes to transfer heat from the solar collector to the water storage system.

3. Stainless Steel (For the Outer Casing and Heat Exchanger)

• Properties:
  • Corrosion Resistance: Stainless steel is highly resistant to rust and corrosion, especially in humid or harsh environments. This is vital for the outer casing, as it protects the inner components from damage.
  • Strength and Durability: Stainless steel offers excellent mechanical strength, ensuring that the solar water heater can withstand environmental stresses such as wind or impact.
  • Thermal Conductivity: While not as high as copper, stainless steel still provides adequate thermal conductivity for the heat exchanger system, transferring the heat to the water effectively.
  • Aesthetic Appeal: Stainless steel also adds a sleek and modern look to the evacuated tube system.
• Usage: Stainless steel is used in the protective outer casing of the evacuated tube and in the heat exchanger components. It ensures long-term durability and performance in external conditions.

4. Polyurethane Foam (For Insulation)

• Properties:
  • High Insulating Efficiency: Polyurethane foam is an excellent insulator, preventing heat loss from the evacuated tube system. This ensures that the system maintains high thermal efficiency, even in cooler climates or during the night.
  • Lightweight: Polyurethane foam is lightweight yet effective in providing thermal insulation, reducing the overall weight of the solar water heater system.
  • Moisture Resistance: Polyurethane foam does not absorb water, making it ideal for use in systems exposed to outdoor elements.
• Usage: Polyurethane foam is often used as insulation between the glass tube and the external casing, ensuring that the heat from the solar collectors is retained and not lost to the environment.

5. Aluminum (For Selective Coating)

• Properties:
  • Thermal Conductivity: Aluminum is widely used for its excellent thermal conductivity, which helps the solar water heater absorb heat more efficiently.
  • Lightweight: As a lightweight material, aluminum contributes to reducing the weight of the evacuated tube system, making it easier to handle during installation.
  • Corrosion Resistance: Aluminum forms a protective oxide layer that helps to resist corrosion, which is crucial in outdoor, humid conditions.
• Usage: Aluminum is often used for the selective coating applied to the interior of the heat pipe or the outer surface of the evacuated tube. This coating improves solar absorption while minimizing heat loss.

6. Titanium (For Selective Coatings)

• Properties:
  • Superior Corrosion Resistance: Titanium is highly resistant to corrosion, especially in extreme conditions (e.g., saltwater environments).
  • High Strength-to-Weight Ratio: Titanium is lightweight but incredibly strong, making it ideal for coating materials that need to withstand thermal and mechanical stress.
  • High Absorptivity: Titanium coatings can enhance the solar absorption of the system, increasing the overall efficiency of the evacuated tube.
• Usage: Titanium is used in the selective coatings applied to the inner surface of the evacuated tube or heat pipe. These coatings enhance the heat absorption capabilities of the system.

7. Rubber and Silicone (For Seals)

• Properties:
  • Weather Resistance: Rubber and silicone seals are flexible and highly resistant to weathering, ensuring that the evacuated tube solar water heater remains leak-free in varying temperatures and environmental conditions.
  • Durability: These materials maintain their integrity over time, ensuring long-term performance.
• Usage: Rubber or silicone seals are used to prevent water leakage at the joints between the evacuated tubes and other components, such as the manifold and storage tank.

8. Glass Wool or Mineral Wool (For Additional Insulation)

• Properties:
  • High Insulation Capacity: Mineral wool or glass wool is used for its excellent thermal insulation properties, helping to prevent heat loss from the water storage tank or other components.
  • Fire Resistance: Both materials are fire-resistant, ensuring safety in high-temperature environments.
• Usage: Glass wool or mineral wool is typically used around the manifold and storage tank to provide extra insulation.

Selecting the right materials is essential to the efficiency, durability, and overall performance of evacuated tube solar water heaters. Each material plays a critical role in ensuring that the system operates optimally, withstands environmental stress, and provides long-term, sustainable performance. By carefully choosing materials like borosilicate glass, copper, stainless steel, and high-quality coatings, manufacturers can produce solar water heaters that maximize heat absorption, minimize heat loss, and extend the lifespan of the system. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

Evacuated tube solar water heaters are known for their high efficiency in harnessing solar energy. The manufacturing process of these systems is complex, requiring precision and advanced technology to ensure that the tubes provide optimal thermal performance and durability. Here's a detailed breakdown of the step-by-step process involved in the manufacturing of evacuated tube solar water heaters:

1. Material Selection

• Glass Tubes: The primary material used in the construction of evacuated tubes is borosilicate glass, known for its high strength, thermal resistance, and low expansion rate. It ensures durability and effective heat transfer.
• Metal Components: Stainless steel is commonly used for the outer casing of the heat pipe and the collector tube. It is resistant to corrosion and high temperatures.
• Insulation Material: High-grade insulation materials, such as polyurethane foam or mineral wool, are chosen to prevent heat loss and improve efficiency.

2. Production of Glass Tubes

• Tube Formation: The process begins with forming long cylindrical borosilicate glass tubes. These tubes are carefully shaped using automated machines that ensure consistency in thickness and diameter.
• Cleaning and Coating: The glass tubes are cleaned to remove any dirt or impurities that could affect the vacuum seal. A special coating is often applied to the interior surface of the glass tube to enhance its absorptive properties. The coating helps capture more sunlight and convert it into heat energy.

3. Creating the Vacuum

• Sealing the Glass Tubes: The next critical step is to evacuate the air from inside the glass tubes to create a vacuum. This is done by sealing one end of the tube, using a specialized vacuum pump to remove all air inside.
• Vacuum Sealing: Once the air is removed, the sealed end of the tube is hermetically sealed. This ensures that no moisture or contaminants can enter the tube, maintaining the vacuum.

4. Inserting the Heat Pipe

• Heat Pipe Installation: Inside each evacuated tube, a copper heat pipe is inserted. This heat pipe is typically filled with a fluid (e.g., water or refrigerant) that absorbs and transfers heat efficiently.
• Thermal Transfer Fluid: The heat pipe is designed to transfer the absorbed solar energy from the evacuated tube to the heat exchanger or manifold.

5. Outer Casing and Assembly

• Stainless Steel Casing: After the heat pipe is inserted, the evacuated tube is placed inside a protective stainless steel casing. This casing is designed to protect the tube from mechanical damage while providing additional insulation.
• Support Structure: The stainless steel casing also features a mounting system to hold the evacuated tubes in place within the solar collector array. The structure is designed to endure environmental stresses like wind, snow, and rain.

6. Solar Absorber Coating

• Selective Coating Application: A selective coating is applied to the inner surface of the heat pipe or outer surface of the evacuated tube. This coating maximizes solar absorption while minimizing heat loss.
• Materials for Selective Coating: Common materials used for the selective coating include copper and aluminum alloys that enhance heat absorption and reduce radiative heat loss.

7. Manifold and Heat Exchanger Integration

• Manifold Assembly: The evacuated tubes are then connected to a manifold, a pipe system that collects the thermal energy from all the tubes and transfers it to the water storage tank.
• Heat Exchanger: A heat exchanger is integrated into the manifold to transfer heat from the heat pipe’s fluid to the water in the storage tank. This ensures that the water gets heated efficiently without the two fluids mixing.

8. Testing for Efficiency and Durability

• Performance Testing: Each solar water heater is subjected to rigorous performance tests, which include checking the heat transfer efficiency, vacuum pressure, and overall structural integrity.
• Thermal Efficiency Tests: The efficiency of each evacuated tube is tested to ensure it can effectively absorb and retain heat under various environmental conditions.

9. Final Assembly and Quality Control

• Complete Assembly: After testing, the evacuated tubes are assembled into the solar water heater system. The system includes the collector panels, heat exchanger, and connections for the water storage tank.
• Quality Control: The final product undergoes a thorough quality inspection. This includes checking for defects in the tubes, proper sealing, efficient heat transfer, and overall system functionality.

10. Packaging and Shipping

• Packaging: The final evacuated tube solar water heater systems are carefully packaged to prevent damage during transport. Protective materials, such as foam padding and shrink wrap, are used to safeguard the components.
• Shipping: The systems are then shipped to distributors, installers, or customers worldwide. The packaging ensures that the units remain intact during transportation.

The manufacturing process of evacuated tube solar water heaters combines advanced technology, quality materials, and precise engineering to create highly efficient and durable systems. Each step is crucial in ensuring the final product's performance, longevity, and ability to harness solar energy effectively. By understanding the process, consumers and industry professionals can appreciate the complexities involved in producing these cutting-edge renewable energy solutions. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

Once the individual components of the evacuated tube solar water heater (ETSH) have been manufactured, tested, and inspected, the final assembly process begins. This phase is critical to ensure that all parts are properly integrated, functioning as intended, and ready for use in real-world conditions. Quality control (QC) is also an essential part of this stage to guarantee the product meets all necessary performance, safety, and durability standards.
Here’s a step-by-step breakdown of the final assembly and quality control process:

1. Final Assembly Process
The final assembly involves integrating all the key components—evacuated tubes, manifold, heat exchanger, piping, and electrical connections—into a functional solar water heater unit. The process is done in a systematic manner to ensure that all components are securely connected and the system is ready for operational testing.
Step 1: Manifold Assembly

• The manifold is the central unit where all evacuated tubes are connected. The tubes are inserted into the manifold’s fittings, and their connections are tightened and secured.
• Connection Points: Each evacuated tube is connected to the manifold through the heat pipe or working fluid conduit. Proper sealing is essential at these points to prevent leaks.
• Insulation and Sealing: Once the tubes are inserted, the manifold may be insulated to reduce heat loss. The seals around the tube openings in the manifold are double-checked for tightness.

Step 2: Heat Exchanger Integration

• The heat exchanger is connected to the manifold to facilitate the transfer of thermal energy from the heat pipe to the water in the storage tank.
• Heat Transfer Fluids: Depending on the design, either water or an antifreeze solution is circulated through the heat pipes, which then transfer the heat to the heat exchanger. It is important to check that the heat transfer fluid is properly circulated and does not leak from the system.
• Connections and Mounting: The heat exchanger is securely mounted to the manifold, ensuring that there is no risk of thermal loss or mechanical instability.

Step 3: Water Connections

• The system is connected to the water inlet and outlet pipes. These pipes are usually made of copper, stainless steel, or other corrosion-resistant materials.
• Inlet and Outlet Ports: The inlet port allows cold water to enter the storage tank, while the outlet port carries hot water from the tank to the end users.
• Sealing: The connections are sealed properly to avoid any leakage, and the system’s water flow is checked to ensure that it operates as designed.

Step 4: Electrical and Control Systems (if applicable)

• Some solar water heaters include an electronic controller to manage the system's operation, monitor temperatures, and control pumps.
• Controller Integration: The controller is connected to the temperature sensors, circulation pumps (if used), and other electrical components.
• Pump Installation: If the system uses a circulation pump to move the fluid between the tubes and the heat exchanger, the pump is installed and wired to the control unit.
• Wiring: Proper electrical wiring is done to ensure safe operation, and the system’s electrical components are tested to ensure functionality.

2. Quality Control (QC)
After the final assembly is completed, rigorous quality control (QC) procedures are performed to ensure that the solar water heater meets all the required standards for performance, safety, and durability.
Step 1: Visual Inspection

• Component Inspection: Every component is visually inspected for defects such as cracks, scratches, or surface imperfections that could affect performance.
• Assembly Inspection: The completed assembly is checked for alignment, correct installation of all components, and secure connections.

Step 2: Leak Testing

• Pressure Testing: The system is pressurized to ensure that no water leaks from the pipes, heat exchanger, or manifold. Typically, the system is tested at 1.5 to 2 times the normal operating pressure to confirm that it can withstand typical operational conditions.
• Leak Detection: For the evacuated tubes, the system undergoes vacuum integrity testing to ensure that the vacuum is intact and no air has infiltrated the tubes.
• Helium Leak Test: For high-precision systems, helium gas may be introduced around the seals and fittings to detect any small leaks that could compromise the vacuum or water-tight integrity of the system.

Step 3: Thermal Performance Testing

• Heating Efficiency Test: The solar water heater is tested under controlled conditions to measure its ability to absorb solar radiation and transfer heat to the water in the tank. This test simulates real-world sunlight conditions and verifies the efficiency of the solar collector.
• Temperature Monitoring: Temperature sensors are installed in various parts of the system (e.g., heat pipes, water storage tank) to monitor how effectively heat is being transferred. The goal is to ensure that the system achieves the desired temperature rise within the specified time.
• System Cycling: The system may undergo several cycles of heating and cooling to simulate its daily operation. This helps identify any inefficiencies or potential failures that could arise over time.

Step 4: Pressure and Safety Testing

• Safety Valve Testing: The system’s pressure relief valve (if applicable) is tested to ensure it activates properly when the internal pressure exceeds the safe threshold.
• Flow Rate Testing: The flow rate of water through the system is measured to ensure that it meets the specifications for optimal performance. Too high or too low a flow rate could reduce the system’s efficiency.
• Corrosion Resistance Testing: The components (especially the heat exchanger and manifold) are checked for signs of corrosion or material degradation. This test ensures that the system can withstand harsh weather conditions and will have a long operational life.

Step 5: Environmental and Durability Testing

• UV and Weather Resistance Test: The system is subjected to prolonged exposure to UV light and harsh environmental conditions (e.g., high humidity, rainfall, extreme temperatures) to ensure that it will perform effectively over many years.
• Freeze Resistance Test: In cold climates, the system is checked to see how well it handles freezing temperatures. This may involve simulating low-temperature conditions to assess the potential for damage to the heat transfer fluid or pipes.
• Wind and Mechanical Stress Test: The system’s structural integrity is tested under simulated wind or mechanical stress to ensure that it can endure environmental forces like storms or heavy winds.

Step 6: Compliance and Certification

• ISO/CE/UL Certification: The system is tested to ensure it meets relevant international standards for safety, performance, and quality, such as ISO 9806 (solar thermal collectors), CE marking (for the European market), or UL (Underwriters Laboratories) certification for safety in the U.S.
• Environmental Compliance: The materials used in the system are checked for compliance with environmental regulations, such as RoHS (Restriction of Hazardous Substances) for electronics or REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) for chemical safety.

3. Packaging and Shipping
Once the system passes all quality control checks, it is prepared for shipment to customers or distributors.

• Packaging: The solar water heater is carefully packaged to protect it from damage during transport. The packaging includes foam padding, shrink wrap, and other materials that ensure the unit remains intact.
• Documentation: Each unit is accompanied by user manuals, installation guides, and safety information. These documents provide customers with essential details about how to install, operate, and maintain the system.
• Shipping: The packaged units are shipped to various markets, ensuring they arrive in good condition and are ready for installation.

The final assembly and quality control processes are essential to ensuring that evacuated tube solar water heaters perform reliably and efficiently over their expected lifespan. Through rigorous testing and careful integration of components, manufacturers can ensure that their systems meet high standards for performance, safety, and durability. These procedures ultimately lead to a high-quality product that delivers long-term value to customers and supports sustainable energy use. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

After the assembly of evacuated tube solar water heaters, comprehensive testing is essential to ensure the system's efficiency, reliability, and durability over its expected lifespan. These tests are designed to assess various aspects of the system, including its ability to absorb solar energy, transfer heat efficiently, and withstand the environmental stresses it will face during regular use.
Here's a detailed overview of the tests performed for efficiency and durability:

1. Thermal Efficiency Testing
Thermal efficiency tests evaluate how effectively the solar water heater captures and transfers solar energy to the water in the storage tank.

• Solar Absorption Test:
  • This test measures the ability of the evacuated tubes to absorb solar radiation. The solar absorptance of the tube is tested under simulated sunlight or controlled exposure to light.
  • Test Method: The tubes are exposed to a controlled light source, and temperature sensors are used to measure the temperature rise in the working fluid or heat pipe.
  • Objective: The goal is to verify that the system absorbs as much sunlight as possible and efficiently converts it into heat.
• Heat Transfer Efficiency Test:
  • This test measures the effectiveness of the heat exchanger in transferring heat from the heat pipes or working fluid to the water in the storage tank.
  • Test Method: The system is run under various flow rates and temperature conditions to monitor the rate of heat transfer. Data is collected to calculate the thermal efficiency of the entire system (i.e., the percentage of absorbed solar energy that is successfully transferred to the water).
  • Objective: The target is to achieve high thermal efficiency, which typically ranges from 60% to 80%, depending on the design and conditions.
• Energy Performance Test:
  • This test evaluates the overall energy performance of the system, considering factors such as heat losses, system design, and operational efficiency.
  • Test Method: The system is exposed to natural sunlight for an extended period, and the temperature change in the water is tracked. The energy output is calculated and compared to the system's rated capacity.
  • Objective: To confirm that the system meets or exceeds the manufacturer's specified performance metrics.

2. Pressure and Leak Testing
These tests ensure that the solar water heater can withstand the pressures and operational conditions it will experience over time.

• Pressure Testing:
  • This test simulates the operational pressure the system will face when the pump is circulating water or heat transfer fluid. It helps ensure that the system's components, such as the manifold, tubes, and heat exchanger, can withstand these pressures without leaking or rupturing.
  • Test Method: The system is pressurized to a level above its maximum operating pressure (usually 1.5 to 2 times the rated pressure) and inspected for leaks or signs of failure.
  • Objective: To ensure that the system is structurally sound and that all components can handle the pressures typically encountered during operation.
• Leak Detection Test:
  • The system is tested to ensure there are no leaks in the sealed evacuated tubes, manifold, or heat exchanger.
  • Test Method: The system is pressurized with air or helium and monitored for pressure drops. A helium leak detector is often used to detect any minute leaks in the vacuum seal of the evacuated tubes.
  • Objective: To confirm that no air or moisture has infiltrated the evacuated tubes, which could reduce the system’s efficiency.

3. Vacuum Integrity Test
The vacuum inside the evacuated tubes is one of the most important factors contributing to thermal efficiency. This test ensures that the vacuum is intact and that the tubes will perform well over the long term.

• Test Method: The vacuum pressure inside the evacuated tubes is monitored using sensors. A vacuum chamber may also be used to simulate the vacuum pressure conditions over time.
  • If there is a loss in vacuum pressure, the system is considered defective, as it will significantly reduce its insulating properties.
• Objective: To confirm that the vacuum within the glass tubes remains at the proper level and is capable of maintaining the high insulation properties that are essential for thermal efficiency.

4. Environmental Durability Testing
Evacuated tube solar water heaters are exposed to various environmental conditions, including UV radiation, rain, wind, and extreme temperatures. Environmental durability testing ensures that the system will last for many years under real-world conditions.

• UV Resistance Test:
  • This test simulates prolonged exposure to ultraviolet (UV) radiation from the sun to ensure that the components of the solar water heater, including the tubes, manifold, and seals, will not degrade over time.
  • Test Method: The system is placed in a UV chamber that simulates years of exposure to sunlight. It is then inspected for signs of wear, fading, or material degradation.
  • Objective: To ensure that the system can withstand years of UV exposure without losing efficiency or structural integrity.
• Freeze and High-Temperature Test:
  • This test assesses the solar water heater’s ability to perform in both cold climates (where freezing temperatures can cause damage) and hot climates (where overheating might occur).
  • Test Method: In cold environments, the system is exposed to freezing temperatures to evaluate how well the heat transfer fluid performs in preventing damage. In hot environments, the system is tested under extreme heat conditions to ensure it does not overheat or degrade.
  • Objective: To ensure that the system can operate reliably across a wide range of temperatures and weather conditions.
• Wind and Mechanical Stress Test:
  • The system is subjected to mechanical stress and simulated wind conditions to ensure that it can withstand external physical forces without breaking or deteriorating.
  • Test Method: The system is tested in a wind tunnel or subjected to mechanical vibration and impact to simulate real-world outdoor conditions.
  • Objective: To ensure the evacuated tube solar water heater can handle physical stress, such as wind, hail, or mechanical impact, without failure.

5. Long-Term Operational Testing
Long-term operational testing simulates how the system will perform over its entire lifespan.

• Continuous Cycling Test:
  • The system is operated for extended periods to simulate daily use and cycling between heating and cooling cycles.
  • Test Method: The system is powered on and off repeatedly, and the heat output is measured during each cycle. The system is tested over several months to mimic the wear and tear that occurs over years of operation.
  • Objective: To evaluate how well the system performs under normal usage over the long term, identifying potential issues related to efficiency degradation, wear, and reliability.
• Component Longevity Test:
  • This test assesses the durability of individual components, including the evacuated tubes, manifold, heat exchanger, and seals, by simulating wear over many years.
  • Test Method: Components are subjected to accelerated aging processes, including thermal cycling, exposure to moisture, and UV radiation.
  • Objective: To confirm that the system’s components will maintain performance for the expected lifetime of the product, typically 15-20 years.

6. Certification and Compliance Testing
To meet industry standards, evacuated tube solar water heaters must be certified for performance, safety, and environmental impact.

• Compliance with International Standards:
  • Systems are tested to meet global standards for solar water heaters, such as ISO 9806 (Solar Collectors) and other regional certifications (e.g., EN 12975 in Europe, SRCC in the U.S.).
  • Test Method: The system undergoes rigorous testing to meet the requirements set by these certification bodies, including performance, safety, and energy efficiency criteria.
  • Objective: To ensure that the solar water heater meets industry-recognized standards and can be sold in various markets.

Testing for efficiency and durability is crucial for ensuring that evacuated tube solar water heaters deliver reliable, high-performance operation over their lifespan. These tests evaluate the system’s ability to efficiently absorb solar energy, transfer heat, and withstand environmental stresses such as temperature fluctuations, UV exposure, and mechanical forces. By performing thorough testing, manufacturers can ensure the quality, reliability, and long-term performance of solar water heaters, providing consumers with a durable and efficient solution for water heating. For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.

The manifold and heat exchanger play a pivotal role in the operation of evacuated tube solar water heaters. The manifold is responsible for collecting and channeling the heat absorbed by the evacuated tubes, while the heat exchanger transfers this thermal energy to the water stored in the tank. Proper integration of these components ensures optimal heat transfer efficiency and the overall performance of the solar water heater system.
Here’s a detailed breakdown of the manifold and heat exchanger integration process:

1. Role of the Manifold
The manifold is the central unit that connects all the evacuated tubes together, collecting the heat generated within each tube and transferring it to the heat exchanger. It is typically located at the top of the solar collector array and serves as the bridge between the evacuated tubes and the water storage tank.
Functions of the Manifold:

• Heat Collection: The manifold gathers the heat from the heat pipes inside each evacuated tube and channels it to the heat exchanger.
• Fluid Flow: The manifold often contains inlet and outlet ports for the working fluid (usually water or antifreeze solution), allowing for the transfer of heat to and from the system.
• Temperature Control: The manifold can help regulate the temperature of the fluid circulating through the evacuated tubes to ensure that the fluid doesn’t overheat or boil.
• Support and Housing: It serves as a structural support to keep the evacuated tubes securely in place and aligned within the system.

2. Manifold Design and Materials
The manifold design is critical for ensuring efficient heat transfer and long-term durability. It is typically made from materials that have good thermal conductivity, corrosion resistance, and strength.

• Materials Used in the Manifold:
  • Copper: Copper is commonly used for the manifold due to its excellent thermal conductivity, which facilitates efficient heat transfer from the evacuated tubes to the heat exchanger.
  • Aluminum: In some cases, aluminum may be used for its lightweight nature and corrosion resistance, although it has lower thermal conductivity compared to copper.
  • Stainless Steel: Stainless steel is sometimes used for its durability, especially in harsh environmental conditions. It is resistant to corrosion, which ensures the longevity of the manifold.
• Design Considerations:
  • Fluid Pathways: The manifold is designed to allow smooth fluid flow between the evacuated tubes and the heat exchanger. It often includes internal channels or tubes that allow the heat transfer fluid to circulate efficiently.
  • Heat Distribution: The manifold should evenly distribute the heat from all evacuated tubes to the heat exchanger to maintain consistent temperature and performance across the system.
  • Insulation: To minimize heat loss, the manifold may be insulated. This insulation helps to retain the heat within the manifold and transfer it efficiently to the heat exchanger.

3. Heat Exchanger Design and Materials
The heat exchanger is responsible for transferring the heat collected from the evacuated tubes to the water or fluid in the storage tank. It allows thermal energy to be transferred without direct contact between the two fluids, ensuring that the solar energy is efficiently used to heat the water.
Functions of the Heat Exchanger:

• Heat Transfer: The heat exchanger transfers thermal energy from the heat transfer fluid (in the manifold) to the potable water or thermal storage fluid.
• Separation of Fluids: In most systems, the heat transfer fluid (often a non-potable antifreeze solution or water) and the domestic water or storage tank water are kept separate, preventing contamination of the drinking water.
• Temperature Regulation: The heat exchanger maintains the temperature of the stored water at the desired level by efficiently absorbing heat from the working fluid.

Types of Heat Exchangers:

• Flat Plate Heat Exchanger: A flat plate heat exchanger consists of multiple flat metal plates stacked together to form channels for heat transfer. This design is highly effective for transferring heat over a large surface area.
• Tube-in-Tube Heat Exchanger: In this design, one tube is placed inside another, with the heat transfer fluid flowing through the inner tube and the water flowing around the outer tube. This type is compact and highly efficient for heat transfer.
• Shell-and-Tube Heat Exchanger: This design consists of multiple tubes placed inside a larger shell. The heat transfer fluid flows through the tubes, while the water circulates around the shell, transferring heat efficiently.

Materials Used in Heat Exchangers:

• Copper: Copper is the most commonly used material for heat exchangers due to its high thermal conductivity, which allows for efficient heat transfer.
• Stainless Steel: Stainless steel is also used in heat exchangers, especially in applications where corrosion resistance is required, such as in systems exposed to high temperatures or harsh water conditions.
• Aluminum: In some systems, aluminum is used for heat exchangers due to its low weight and corrosion resistance, although it has lower thermal conductivity than copper.

4. Integration of Manifold and Heat Exchanger
Proper integration between the manifold and the heat exchanger is essential for ensuring smooth operation and maximum thermal efficiency. The integration process typically involves the following steps:

• Connecting the Manifold to the Heat Exchanger:
  • The fluid from the manifold is directed to the heat exchanger through a set of inlet pipes or hoses. The design of the manifold and heat exchanger ensures that the fluid flows efficiently from one component to the other, allowing the heat to be transferred effectively.
  • Seals and Gaskets: High-quality seals or gaskets are used to prevent leaks at the connection points between the manifold and the heat exchanger, ensuring that the system remains airtight and operates efficiently.
• Optimizing Heat Transfer:
  • The fluid enters the heat exchanger at a high temperature, transferring the heat to the water or thermal storage fluid circulating through the exchanger. The design of the heat exchanger ensures that the maximum amount of heat is transferred without significant energy loss.
  • Flow Rate Control: Flow rate control valves may be used to regulate the speed at which the fluid moves through the manifold and heat exchanger. Proper flow rates are essential for maintaining optimal heat transfer and preventing overheating or energy inefficiencies.
• Insulation and Protection:
  • To prevent heat loss during transfer, both the manifold and the heat exchanger are often insulated. This ensures that the heat remains in the system and is transferred efficiently to the water storage tank.
  • Pressure and Temperature Monitoring: Pressure and temperature sensors may be installed at key points along the manifold and heat exchanger to monitor the system's performance and prevent damage from excessive pressure or temperature fluctuations.

5. Final Testing and Quality Control
Once the manifold and heat exchanger are integrated into the system, the entire solar water heater system undergoes a series of tests to ensure optimal performance and durability:

• Pressure Testing: The system is pressurized to check for leaks in the manifold, heat exchanger, and connections. Any detected leaks are repaired before the system is considered ready for use.
• Thermal Performance Testing: The system is tested for its ability to efficiently transfer heat from the evacuated tubes to the storage tank. This ensures that the manifold and heat exchanger are working together effectively to maximize the system’s thermal efficiency.
• Operational Testing: The entire solar water heater system is run through several cycles to check for proper fluid circulation, consistent heat transfer, and reliable operation of all components.

The manifold and heat exchanger integration is a critical process in the manufacture of evacuated tube solar water heaters. The manifold collects and channels the heat absorbed by the evacuated tubes, while the heat exchanger efficiently transfers this thermal energy to the water storage tank. The proper materials, design, and integration of these components are essential to the performance, efficiency, and longevity of the system. By ensuring that the manifold and heat exchanger work together seamlessly, manufacturers can create solar water heaters that offer high energy efficiency and reliable long-term performance. ​For more info contact Solar Water Heater Supplier in Dubai or call us at +971 4 2522966.
