Vertical multistage pumps are widely used in modern water systems where high pressure and reliable operation are required. These pumps are commonly installed in booster pump systems, HVAC circulation systems, water treatment plants, irrigation networks, and industrial water transfer applications.

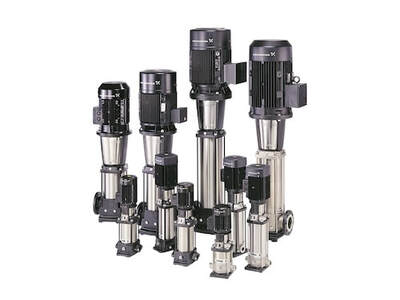

Among the leading manufacturers, Grundfos vertical multistage pumps are known for their compact construction, high efficiency, and durable materials. Their vertical design allows them to generate high pressure while occupying minimal floor space, making them ideal for commercial buildings, hotels, hospitals, and high-rise residential towers.
What Is a Vertical Multistage Pump
A vertical multistage pump is a centrifugal pump that contains multiple impellers arranged vertically on a single shaft. Each impeller increases the pressure of the water flowing through the pump. Instead of producing pressure in one stage like a conventional centrifugal pump, a multistage pump gradually increases pressure as the fluid moves through several stages.
This staged pressure increase allows the pump to deliver high discharge pressure while maintaining stable flow. Because of this design, vertical multistage pumps are widely used in applications that require high pressure but limited installation space.
Design of a Grundfos Vertical Multistage Pump
The design of a Grundfos vertical multistage pump is based on a modular structure consisting of several hydraulic stages stacked together inside a cylindrical casing. Each stage includes an impeller and diffuser that work together to increase water pressure.
The motor is positioned at the top of the pump and drives a vertical shaft that runs through the center of all the stages. As the motor rotates the shaft, every impeller inside the pump rotates simultaneously. Water enters the pump at the lower section and moves upward through the stacked stages until it exits the discharge port at the required pressure.
This vertical arrangement allows the pump to produce high pressure without requiring a large footprint, which is particularly useful in pump rooms where space is limited.
Main Components of a Grundfos Vertical Multistage Pump
The electric motor is responsible for driving the pump shaft and providing the rotational energy required for water movement. Grundfos pumps typically use high-efficiency motors designed for continuous operation and compatibility with variable frequency drives.
The pump shaft connects the motor to the impellers and transmits torque through all the pump stages. It must maintain precise alignment while rotating at high speed. In most designs, the shaft is manufactured from stainless steel to provide corrosion resistance and mechanical strength.
Impellers are the rotating hydraulic components that transfer energy from the motor to the water. As the impeller spins, it pushes water outward due to centrifugal force. This increases the velocity of the fluid and moves it toward the diffuser section.
Diffusers surround the impellers and convert the velocity energy of the water into pressure energy. They guide the water smoothly into the next stage of the pump while minimizing turbulence and hydraulic losses.
Stage casings house the impeller and diffuser assemblies. These casings form the pressure chambers where the water pressure increases as it passes through each stage. Many Grundfos vertical pumps use stainless steel stage components to improve durability and resistance to corrosion.
The mechanical seal prevents water from leaking along the rotating shaft where it exits the pump housing. It is a critical component that protects the motor and surrounding equipment from water leakage.
The pump base supports the entire pump assembly and contains the suction and discharge connections. Water enters through the suction port, flows through the multiple stages of the pump, and exits through the discharge outlet at a much higher pressure.
Working Principle of a Vertical Multistage Pump
The operation of a vertical multistage pump is based on centrifugal force combined with staged pressure generation.
When the pump starts, the electric motor rotates the shaft and all the impellers attached to it. Water enters the pump through the suction inlet located at the base. The rotating impeller accelerates the water outward, increasing its velocity.
The high-velocity water then enters the diffuser, where the flow slows down and velocity energy is converted into pressure energy. This process increases the pressure of the water before it enters the next stage.
The water then moves into the next impeller stage where the process repeats. Each stage adds additional pressure to the fluid. By the time the water passes through all stages, it reaches the required discharge pressure and leaves the pump through the discharge outlet.
Because pressure increases gradually through multiple stages, the pump can generate very high pressure while maintaining smooth and stable operation.
Advantages of Grundfos Vertical Multistage Pumps
Vertical multistage pumps provide several advantages in water supply and industrial systems. Their ability to produce high pressure with a compact design makes them suitable for installations where space is limited. The staged hydraulic design improves efficiency and reduces energy consumption compared with single-stage pumps operating at the same pressure.
The vertical configuration also improves system layout because the suction and discharge ports are usually located in line with the piping system. In addition, stainless steel components increase resistance to corrosion, making these pumps suitable for potable water, treated water, and industrial fluids.
Low vibration levels, reliable sealing systems, and efficient hydraulic design contribute to long service life and stable performance.
Typical Applications
Grundfos vertical multistage pumps are commonly used in booster systems that supply water to high-rise buildings and residential towers. They are also widely installed in HVAC systems to circulate chilled water and hot water through heating and cooling networks.
Other applications include water treatment plants, reverse osmosis systems, irrigation networks, boiler feed systems, and industrial water transfer processes. Their ability to provide stable pressure makes them particularly useful in systems where consistent water flow and pressure control are essential.
Vertical multistage pumps are designed to deliver high pressure, efficient performance, and reliable operation in demanding water systems. By using multiple impellers stacked along a vertical shaft, these pumps gradually increase water pressure across several stages.
Through advanced hydraulic design and durable construction, Grundfos vertical multistage pumps provide an efficient solution for booster pump systems, HVAC installations, and industrial water supply networks where consistent pressure and long operational life are required. For more info contact Grundfos Pump Suppliers in UAE or call us at +971 4 2522966.
