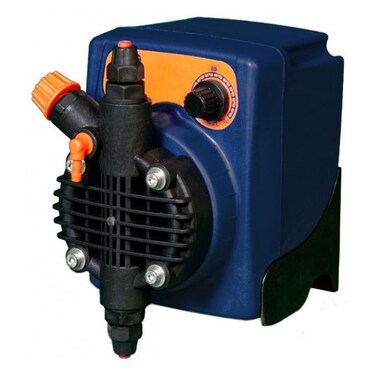

Dosing pumps are essential components in water treatment systems, ensuring accurate injection of chemicals such as chlorine, antiscalants, coagulants, biocides, and pH adjusters. A correct installation not only improves dosing accuracy but also prevents air-locking, pump damage, and inconsistent water quality. This step-by-step guide explains the complete installation process used by technicians in RO plants, wastewater treatment systems, commercial pools, industrial cooling towers, and drinking water disinfection systems.

1. Understanding the Installation Requirements
Before installing a dosing pump, you must fully understand:
1.1 Chemical Type and Compatibility
Check the compatibility of pump materials (PVC, PP, PVDF, PTFE, SS316) with the chemical being dosed.
1.2 Dosing Rate and Pressure
Verify:

• Required dosing rate (L/hr)
• System pressure at injection point
• Suction lift or flooded suction requirement

1.3 Power Supply and Controls
Identify requirements for:

• Voltage (110V, 220V, or 380V)
• Control signal (pulse, 4–20 mA, manual stroke, digital setting)

Once all parameters are known, begin preparing the installation site.

2. Preparing the Installation Area
2.1 Choose a Stable, Level Surface
Dosing pumps work best when mounted on a rigid base, skid, or wall bracket to reduce vibration.
2.2 Provide Adequate Ventilation
Chemical dosing rooms must have proper ventilation to avoid fumes and maintain pump performance in high-temperature areas like the Middle East.
2.3 Ensure Chemical Containers Are Accessible
Chemical drums or tanks must be placed close to the dosing pump to reduce suction lift and prevent air leaks.

3. Installing the Suction Line
The suction line carries chemical from the tank to the dosing pump and must be installed with precision.
3.1 Install a Foot Valve
A foot valve with strainer keeps debris out and prevents backflow.
3.2 Proper Suction Tube Routing

• Keep the suction line as short as possible
• Avoid unnecessary bends
• Do not place the pump above 1.5 meters suction lift unless recommended

3.3 Ensure Airtight Connections
Air leakage in suction lines is the most common reason for inaccurate dosing and pump failure.
3.4 Positioning the Foot Valve
It should be:

• 5 to 10 cm above the bottom of the chemical tank
• Away from sludge, sediment, or floating impurities

4. Installing the Discharge Line
4.1 Use Correct Tubing Material
Match the discharge tubing with the chemical and pressure rating.
4.2 Install a Back Pressure Valve
Ensures stable dosing flow, especially in low-pressure pipelines.
4.3 Install a Pressure Relief Valve
Protects the pump head from overpressure, especially if downstream valves shut off suddenly.
4.4 Routing the Discharge Line

• Avoid sharp bends
• Keep piping lengths minimal
• Use clamps to secure piping

5. Installing the Injection Point
Correct injection is critical for proper mixing.
5.1 Use an Injection Quill
A spring-loaded quill ensures chemical enters the center of the pipeline, not the pipe wall.
5.2 Verify Flow Direction in the Pipeline
Injection must always be installed on the pressure side, not suction side of a system pump.
5.3 Ensure Proper Penetration
The quill should reach one-third into the pipe diameter.

6. Electrical and Control Wiring
6.1 Connect the Power Supply
Use a protected circuit with MCB and ensure correct grounding.
6.2 Integrate Control Signals
Depending on the system:

• Pulse from water meter
• 4–20 mA from pH/ORP controllers
• Manual setting on pump panel

6.3 Install Emergency Stop (if required)
Especially for industrial dosing skids and RO plants.

7. Priming the Dosing Pump
Priming ensures chemical fills the pump head and lines.
7.1 Open the Priming Valve
Allow chemical to flow until all air escapes.
7.2 Run the Pump at Maximum Stroke
This speeds up priming and clears trapped air.
7.3 Close the Priming Valve
Once the chemical flow stabilizes, close the valve securely.

8. Calibration and Adjustment
8.1 Use a Calibration Cylinder
Measure actual dosing rate to verify pump accuracy.
8.2 Adjust Stroke Length or Pump Speed
Set the pump to match required dosing rate.
8.3 Recheck After 10–15 Minutes
Ensure consistent, pulsation-free dosing.

9. Testing and Commissioning
9.1 Check for Leaks
Inspect all connections—suction, discharge, valves, and fittings.
9.2 Test Alarm and Safety Inputs
Especially for digital dosing pumps with feedback.
9.3 Observe Chemical Mixing
Ensure downstream mixing is uniform and effective.
9.4 Run the Pump Under Actual System Pressure
Simulate real operation conditions for final verification.

10. Post-Installation Checklist
A dosing pump installation is complete when the following are confirmed:

• Suction line airtight and short
• Foot valve correctly positioned
• Back-pressure and relief valves installed
• Injection quill properly inserted
• Pump primed and calibrated
• No leaks in system
• Safety and electrical connections secure
• Chemical tank labeled and covered
• Dosing rate verified with calibration cylinder

A properly installed dosing pump ensures reliable chemical injection, stable water treatment results, and long-term operational efficiency. Whether it is for RO systems, drinking water chlorination, cooling towers, or industrial wastewater, following these installation steps will minimize downtime, reduce chemical waste, and extend pump life. For best performance in hot climates such as the UAE, always implement proper ventilation, UV-protection of tubing, and regular maintenance. ​For more info contact Dosing Pump Suppliers in UAE or call us at +971 4 2522966.
