​Sizing a water pump correctly is crucial to ensure optimal performance, energy efficiency, and longevity of the system. An incorrectly sized pump can lead to unnecessary energy consumption, mechanical stress, and system inefficiencies, while a properly sized pump ensures smooth operation, reduced operational costs, and reliable service life.
Here is a step-by-step guide to help you determine the right pump size for your system.

1. Understand Your System’s Requirements
1.1 Determine the Flow Rate (Required Capacity)

• Why It’s Important: The flow rate is the volume of water the pump must move within a specific time frame, typically expressed in gallons per minute (GPM) or liters per second (L/s).
• What to Do:
  • Identify Water Demand: Determine the volume of water your system needs to move. For example, if you’re pumping water into a tank, calculate how fast you want to fill the tank.
  • Account for System Requirements: In industrial and commercial systems, consider factors such as irrigation needs, HVAC cooling, or water treatment flow requirements.
  • Adjust for Peak Demand: If the system experiences variable demand, consider the maximum flow rate the pump will need to provide during peak conditions.

Formula for Flow Rate (General):

• Flow Rate
  =
  Volume
  Time


  \text{Flow Rate} = \frac{\text{Volume}}{\text{Time}}

  Flow Rate=TimeVolume
• Example: If you need to move 500 gallons of water into a tank in 10 minutes, the flow rate would be 50 GPM.

1.2 Calculate the Total Dynamic Head (TDH)

• Why It’s Important: The TDH represents the total resistance the pump must overcome to move water through the system. This includes vertical lift, friction losses in pipes, fittings, and valves, and any additional pressure requirements.
• What to Do:
  • Static Head: Measure the vertical distance between the water source and the highest point the water must be lifted (e.g., from a well to the top of a building or tank).
  • Friction Head: Estimate the resistance to flow in the system, which is caused by friction in pipes, fittings, valves, and bends. This can be determined using friction loss charts or specialized software based on pipe length, diameter, and material.
  • Pressure Head: If the system requires specific discharge pressure (e.g., for irrigation or fire suppression), include this in the calculation.

Formula for TDH (Total Dynamic Head):

• TDH
  =
  Static Head
  +
  Friction Head
  +
  Pressure Head

  \text{TDH} = \text{Static Head} + \text{Friction Head} + \text{Pressure Head}

  TDH=Static Head+Friction Head+Pressure Head
• Static Head Example: If your pump needs to lift water 20 feet vertically, the static head is 20 feet.
• Friction Loss Example: If you have 100 feet of pipe and the friction loss is 3 feet per 100 feet, the friction head is 3 feet.
• Pressure Head Example: If you need 30 psi of pressure, convert it to head: 30
   psi
  ×
  2.31

  1

  =
  69.3
   feet of head

  \frac{30 \text{ psi} \times 2.31}{1} = 69.3 \text{ feet of head}

  130 psi×2.31 =69.3 feet of head.
• TDH Example:
  • Static Head: 20 feet
  • Friction Head: 3 feet
  • Pressure Head: 69.3 feet
  • Total Dynamic Head (TDH) = 92.3 feet

1.3 Account for System Losses

• Why It’s Important: Losses in the system, such as due to pipe bends, fittings, or valves, reduce the pump’s efficiency and increase the power required to move water.
• What to Do:
  • Use friction loss tables or calculation software to estimate losses based on your system's layout.
  • Consider pipe diameter and material, the number of elbows, fittings, and valves, and their effect on system resistance.

Note: For accurate losses, refer to manufacturers' tables, system design guides, or use hydraulic simulation software.

2. Select the Pump Type and Characteristics
2.1 Choose the Right Pump Type

• Why It’s Important: The pump type determines its ability to meet flow and head requirements. Selecting the wrong type can lead to inefficiency or failure.
• What to Do:
  • Centrifugal Pumps: Ideal for moving large volumes of water with moderate head. Used in applications where water flows smoothly and pressure is not excessively high.
  • Positive Displacement Pumps: Best for handling high-viscosity fluids or where precise, constant flow is required. These are used in specialized systems.

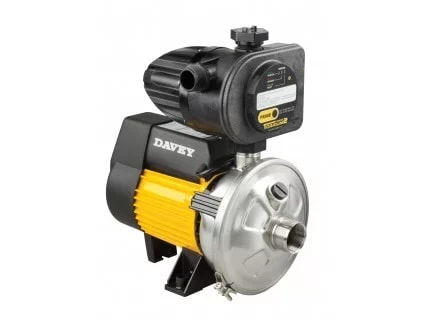

  • Booster Pumps: Commonly used to increase water pressure, particularly for domestic or commercial systems requiring high-pressure output.

2.2 Review Pump Performance Curves

• Why It’s Important: The pump performance curve shows the relationship between flow rate and head for a specific pump. It helps you select a pump that matches your system's flow and head requirements.
• What to Do:
  • Look for the Best Efficiency Point (BEP) on the performance curve. This is where the pump will operate most efficiently.
  • Match your TDH and Flow Requirements: Compare your calculated TDH and flow rate with the pump’s performance curve to ensure the selected pump will operate within its most efficient range.

3. Consider Other Factors Affecting Pump Selection
3.1 Pump Efficiency and Energy Consumption

• Why It’s Important: A pump with high efficiency reduces operating costs and energy consumption.
• What to Do:
  • Select an Energy-Efficient Pump: Choose a pump with a high-efficiency rating (e.g., IE3 or IE4 motors) to minimize energy costs.
  • Use Variable Speed Drives (VSDs): For applications with fluctuating demand, a VSD can help adjust the motor speed to match system requirements, improving energy efficiency.

3.2 Motor Selection

• Why It’s Important: The motor size should match the pump’s requirements for efficient operation and to avoid motor overload.
• What to Do:
  • Choose the Right Motor Size: Ensure the motor is correctly rated for the pump’s required power (kW or horsepower) and system load.
  • Match Voltage and Phase Requirements: Make sure the motor matches the available electrical supply in terms of voltage, phase, and frequency.

3.3 Material Compatibility

• Why It’s Important: The pump material should be compatible with the fluid being pumped to prevent corrosion or damage over time.
• What to Do:
  • Choose Corrosion-Resistant Materials: If pumping water with high mineral content, or in corrosive environments, select pumps with materials like stainless steel, bronze, or plastic.
  • Seal and Gasket Materials: Ensure the seals and gaskets are made of materials resistant to the type of fluid being pumped.

4. Final Steps in Sizing the Pump
4.1 Calculate the Power Requirements

• Why It’s Important: The pump’s power consumption determines its efficiency and energy cost.
• What to Do:
  • Pump Power Formula:
    Power (HP)
    =
    Flow (GPM)
    ×
    Total Dynamic Head (TDH)
    ×
    Water Weight Factor

    3960
    ×
    Pump Efficiency



    \text{Power (HP)} = \frac{\text{Flow (GPM)} \times \text{Total Dynamic Head (TDH)} \times \text{Water Weight Factor}}{3960 \times \text{Pump Efficiency}}


    Power (HP)=3960×Pump EfficiencyFlow (GPM)×Total Dynamic Head (TDH)×Water Weight Factor
  • Where the water weight factor is 8.34 lbs per gallon for water.

Example:

• Flow Rate: 50 GPM
• TDH: 50 feet
• Efficiency: 70%
• Power Required = 50
  ×
  50
  ×
  8.34

  3960
  ×
  0.70


  =
  7.9
   
  HP

  \frac{50 \times 50 \times 8.34}{3960 \times 0.70} = 7.9 \, \text{HP}

  3960×0.7050×50×8.34 =7.9HP

4.2 Verify Safety and Compliance

• Why It’s Important: Ensure that the selected pump complies with local regulations and safety standards.
• What to Do:
  • Check Local Regulations: Verify the pump and system comply with environmental, safety, and energy standards.
  • Consider Certification: Ensure the pump is certified by recognized agencies, like UL or CE, for electrical and mechanical safety.

Sizing a water pump for your system requires a detailed understanding of your flow and pressure needs, system components, and environmental factors. By accurately calculating the flow rate, TDH, and system losses, and selecting the correct pump type, you can ensure the system operates efficiently and reliably.
Remember, choosing the right pump not only improves performance but also reduces energy costs and minimizes maintenance requirements. Always refer to the pump performance curve and consider factors like motor power, pump efficiency, and material compatibility to make an informed choice. For more info contact Water Pump Suppliers in Dubai or call us at +971 4 2522966.
