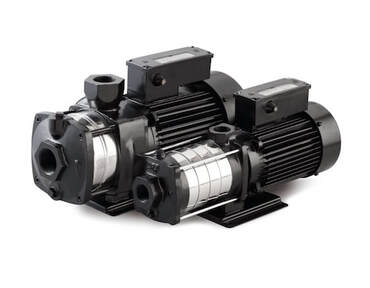

Hot water multistage pumps are designed to efficiently circulate hot water by using multiple impellers (stages) to increase water pressure. These pumps are typically used in applications where high pressure and constant water circulation are required, such as in heating systems, boiler feed applications, and HVAC systems. Here’s a step-by-step guide explaining how these pumps work:

1. Water Intake (Inlet Stage)
The process begins at the inlet of the pump, where water enters from the source (such as a water tank, well, or a pressurized system). The water at this point may not have significant pressure, and its temperature could range from warm to very hot, depending on the application.

• Water flows into the pump casing through the inlet pipe.
• Strainers or filters may be used to remove debris that could damage the pump components.

2. First Impeller (Stage One)
Once the water enters the pump, it reaches the first impeller. An impeller is a rotating component with blades that move water. In multistage pumps, there are multiple impellers arranged in series.

• The first impeller spins, driven by the motor, generating centrifugal force.
• Centrifugal force causes the water to move outward from the center of the impeller and increase in velocity.
• As the water moves outward, pressure increases because the impeller is forcing the water to the outer edge of the pump casing.

This increase in pressure helps the water move through the pump, preparing it for the next stage.

3. Diffuser/Volute
After passing through the first impeller, the water enters a diffuser or volute—a spiral-shaped section in the pump casing that directs the water towards the next impeller. This section also helps convert the water's kinetic energy (velocity) into pressure.

• The diffuser’s shape helps slow the water down and convert its high velocity into pressure.
• The pressure from the first impeller is now higher than when the water entered the pump.

4. Second Impeller (Stage Two) and Subsequent Stages
After passing through the diffuser, the water moves to the second impeller. The second impeller continues the process of increasing pressure.

• The second impeller again uses centrifugal force to further increase water velocity and pressure.
• The water then passes through another diffuser to convert kinetic energy into pressure.
• This process repeats for each additional impeller in the pump (multistage pumps can have several impellers depending on the required pressure).

Each impeller adds to the pressure incrementally, allowing the pump to handle higher pressures than a single impeller could achieve. The stages are arranged so that each impeller contributes to a progressively higher pressure.

5. Discharge Stage (Outlet)
After passing through all the impellers, the water exits the pump at the discharge stage.

• At this point, the water has reached its final pressure, and it is pushed out of the pump towards the rest of the system.
• The discharge pipe carries the pressurized hot water to the designated location, such as a heating system, boiler, or HVAC system, where it will be used.

6. Continuous Flow Control (Optional Variable Speed Drive)
To ensure efficiency and adjust the pump’s output based on demand, many hot water multistage pumps come with a Variable Speed Drive (VSD).

• A VSD controls the speed of the pump motor to adjust the flow and pressure.
• As demand for hot water increases or decreases, the VSD automatically adjusts the speed of the motor, helping to optimize energy use and reduce wear on the pump.

7. Motor and Power Supply
The pump is powered by an electric motor or other types of motors (depending on the application). The motor drives the impellers to spin and creates the centrifugal force necessary to move water through the system.

• The motor speed, often controlled by the VSD, determines the flow rate and pressure of the system.
• In hot water applications, the motor and pump components are designed to withstand high temperatures without degrading.

Key Principles of Multistage Pumps in Hot Water Applications

• Centrifugal Force: The primary principle behind multistage pumps is centrifugal force. This force is created by the rotating impellers and is responsible for moving water outward and generating pressure.
• Pressure Increase Through Stages: Each stage or impeller increases the pressure of the water. In a multistage pump, the water passes through several impellers, each adding to the total pressure.
• High Efficiency: The use of multiple stages allows the pump to generate high pressure efficiently. This design minimizes the energy required to achieve the necessary flow and pressure, especially in hot water systems.

Why Use a Hot Water Multistage Pump?

• High Pressure: These pumps can handle high pressures without excessive energy consumption, making them ideal for applications that require water to be moved over long distances or to high elevations.
• Consistent Hot Water Supply: In systems like district heating or commercial boilers, hot water multistage pumps ensure a steady and reliable flow of hot water.
• Energy Efficiency: The multistage design provides an efficient method for generating high pressure without needing a large, single-stage pump that consumes more energy.

Hot water multistage pumps operate by using multiple impellers arranged in series to increase water pressure incrementally. The process starts with water entering the pump, where it passes through each stage, gaining more pressure with each impeller. The final result is high-pressure, hot water that can be distributed throughout the system. Whether used in heating, boiler feed, or HVAC systems, these pumps are essential for ensuring a reliable and efficient flow of hot water in high-demand applications. For more info contact Water Pump Suppliers in UAE or call us at +971 4 2522966.
