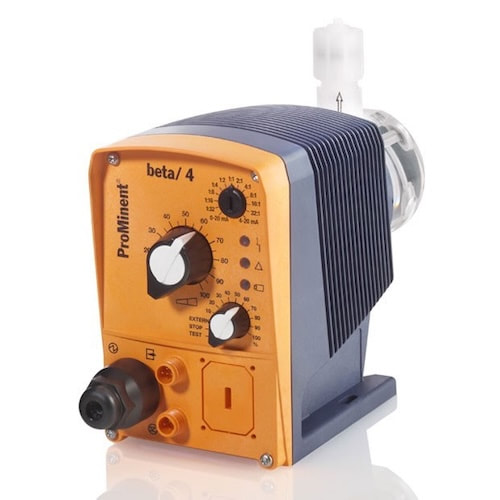

Dosing pumps are critical components in water treatment systems, used for injecting chemicals such as chlorine, antiscalants, biocides, corrosion inhibitors, and pH adjusters. However, even the best dosing pump can malfunction if installed incorrectly. Poor installation leads to inaccurate dosing, air-locking, chemical wastage, pump damage, and inconsistent water quality.
This guide highlights the most common dosing pump installation mistakes and explains how technicians can avoid them during setup in RO plants, cooling towers, commercial pools, wastewater systems, and drinking water disinfection units.

1. Incorrect Suction Line Installation
The suction line is the most sensitive part of a dosing pump. Even small mistakes can cause major performance issues.
Common Mistakes

• Suction line is too long
• Pump installed far above chemical tank (high suction lift)
• Using wrong tubing material
• Air leakage from loose fittings
• Foot valve placed on the bottom of chemical tank

How to Avoid Them

• Keep the suction line as short and straight as possible
• Use flooded suction whenever possible
• Tighten all fittings to prevent air entry
• Select proper chemical-resistant suction tubing
• Suspend the foot valve 5–10 cm above the bottom to avoid sediment intake

2. Wrong Discharge Line Layout
Improper discharge line installation creates backflow issues and unstable dosing.
Common Mistakes

• Excessive bends and height differences
• No back-pressure or anti-siphon valve
• Tubing not rated for line pressure
• Cracked or kinked discharge pipe

How to Avoid Them

• Route the discharge line with minimal bends
• Always install a back-pressure valve for stable dosing
• Use tubing that matches the maximum system pressure
• Install a pressure relief valve for pump head protection
• Replace old, brittle tubes immediately

3. Improper Placement of Injection Point
Incorrect injection point installation can lead to poor mixing and ineffective chemical treatment.
Common Mistakes

• Injecting chemical on the suction side of system pumps
• No injection quill used
• Quill too short, injecting against pipe wall
• Wrong direction of flow

How to Avoid Them

• Install injection point only on the pressure side of the pipeline
• Use an injection quill to reach the correct penetration depth
• Ensure the quill extends one-third into the pipe diameter
• Confirm pipeline flow direction before tightening

4. Failure to Install Essential Accessories
Technicians often skip key accessories, reducing dosing accuracy and pump lifespan.
Common Mistakes

• No foot valve
• No pulsation dampener
• No calibration cylinder
• No non-return valve
• No spill tray for chemical safety

How to Avoid Them

• Install all manufacturer-recommended accessories
• Use a calibration cylinder for accurate dosing verification
• Fit a pulsation dampener for smooth flow, especially for high-pressure systems
• Use spill trays and proper chemical containment

5. Improper Priming and Air-Locking Issues
Air-locking is one of the most common reasons dosing pumps fail to inject chemical.
Common Mistakes

• Pump not fully primed after installation
• Air trapped in dosing head
• Air entering suction line due to poor sealing
• Priming valve left open

How to Avoid Them

• Open the priming valve fully until steady chemical flow is visible
• Tighten all fittings to avoid micro air leaks
• Re-prime after refilling chemical tanks
• Close the priming valve immediately after priming

6. Incorrect Stroke or Speed Settings
Wrong settings lead to inaccurate dosing and waste of chemicals.
Common Mistakes

• Setting stroke length too low
• Relying only on factory settings
• Not calibrating pump output
• Incorrect 4–20 mA input scaling on digital pumps

How to Avoid Them

• Adjust stroke and frequency based on required dosing rate
• Verify actual flow using a calibration cylinder
• Recheck 4–20 mA scaling from controllers
• Recalibrate pumps after maintenance or chemical changeovers

7. Poor Electrical and Control Setup
Electrical mistakes can lead to pump malfunction and unsafe operation.
Common Mistakes

• Wrong voltage supply
• No MCB or surge protection
• Incorrect polarity for external pulse signals
• Loose wiring inside control panels

How to Avoid Them

• Verify voltage rating before powering the pump
• Use proper circuit protection and grounding
• Follow manufacturer wiring diagrams
• Test pulse, timer, or signal input before commissioning

8. Incorrect Chemical Tank Placement
Improper chemical tank positioning affects suction and safety.
Common Mistakes

• Tank placed too far from pump
• Tank placed at higher level than pump without anti-siphon valve
• No lid on the tank
• Tank exposed directly to sunlight (UAE issue)

How to Avoid Them

• Keep the chemical tank as close as possible
• Install anti-siphon valves for elevated tanks
• Always use a sealed tank with a vent hole
• Protect tank from sun to prevent chemical degradation

9. Ignoring Environmental and Safety Requirements
Environmental issues impact system longevity and operator safety.
Common Mistakes

• Installing pumps in unventilated rooms
• No PPE used during installation
• No emergency eye-wash nearby
• Tubing exposed to UV radiation

How to Avoid Them

• Ensure proper ventilation
• Use PPE as per MSDS guidelines
• Provide eye-wash and spill control equipment
• Use UV-resistant tubing or install protective covers

10. Skipping Commissioning and Final Testing
Even after installation, lack of testing can lead to poor performance.
Common Mistakes

• Not checking for leaks
• No pressure testing
• No mixing verification in the pipeline
• Skipping final calibration

How to Avoid Them

• Perform a complete leak test
• Check dosing consistency during start-up
• Monitor downstream mixing and chemical results
• Document calibration and settings for future maintenance

Installing a dosing pump seems simple, but small mistakes can lead to big operational issues such as air-locking, chemical wastage, inaccurate dosing, and equipment failure. By understanding these common installation mistakes and following the recommended solutions, technicians can ensure reliable, safe, and long-lasting dosing pump performance. ​For more info contact Dosing Pump Suppliers in UAE or call us at +971 4 2522966.
