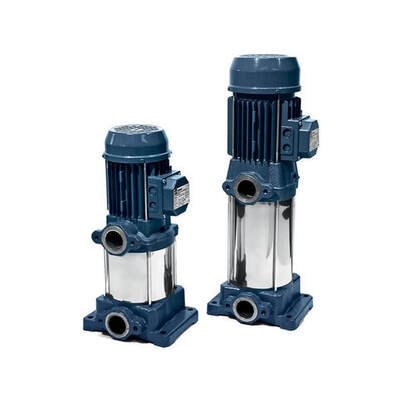

Cavitation is one of the most common and damaging issues that can affect a multistage water pump. It occurs when the local pressure inside the pump drops below the vapor pressure of the liquid, causing air bubbles to form. When these bubbles move into areas of higher pressure, they collapse or implode, creating shockwaves that can damage pump components such as impellers, casings, and bearings. Left unchecked, cavitation can lead to decreased efficiency, costly repairs, and even system failure.

Here’s a comprehensive guide on how to check for signs of cavitation, its causes, and how to prevent or address it:

1. Signs of Cavitation
1.1. Unusual Noise

• Why It Matters: One of the most common signs of cavitation is a distinct gravel-like or marbles clinking sound coming from the pump. This sound is caused by the implosion of bubbles inside the pump. If you hear this noise, it’s an early indicator of cavitation.

What to Look For:

• Listen for a high-pitched whining or gravel-like noise that fluctuates with pump speed.
• This noise will often change as the pump’s operating conditions change, especially when the flow rate or load varies.

1.2. Increased Vibration

• Why It Matters: The implosion of bubbles causes shockwaves that can result in vibrations within the pump. These vibrations can be damaging to the pump’s internal components and may be an indication that cavitation is occurring.

What to Look For:

• Use a vibration sensor or accelerometer to monitor the pump’s vibration levels. Unusual or excessive vibration that is above normal operating levels is a key indicator of cavitation.
• Check for vibrations that increase as the pump speed or load fluctuates. The vibration patterns can also change if cavitation is becoming more severe.

1.3. Loss of Pump Performance

• Why It Matters: Cavitation disrupts the fluid flow within the pump and reduces its efficiency. As a result, you may notice a drop in flow rate, pressure fluctuations, or an inability to meet the required system demand.

What to Look For:

• Monitor the flow rate and pressure gauges. If these readings are significantly lower than expected or there is an abnormal drop in pressure, it could indicate cavitation.
• If the pump is operating but not delivering the required flow or pressure, cavitation could be obstructing the flow path or causing inefficiency.

1.4. Impeller Damage

• Why It Matters: Cavitation erodes the surface of the impeller as the bubbles collapse, leading to pitting, erosion, and damage. This damage often manifests as irregular wear patterns, which can further reduce the pump's efficiency.

What to Look For:

• Inspect the impeller for visible erosion, pitting, or cavitation marks on the blades. These signs indicate that cavitation has caused material degradation.
• Use visual inspections and ultrasonic testing to detect hidden erosion in areas that are not directly visible.

1.5. Excessive Power Consumption

• Why It Matters: When cavitation occurs, the pump operates inefficiently, which can cause it to consume more power than normal. This happens because the pump is struggling to maintain flow and pressure, and the energy is being lost in the form of turbulence and shockwaves.

What to Look For:

• Track the power consumption using a power meter. If power consumption is abnormally high without a corresponding increase in output, it could indicate cavitation.
• Power surges during operation may be due to cavitation-related inefficiencies, leading to higher electricity costs and more strain on the pump.

2. Causes of Cavitation
2.1. Low Suction Pressure

• Why It Matters: Cavitation occurs when the pressure at the pump's suction side drops below the vapor pressure of the liquid, causing bubbles to form. This is often caused by inadequate Net Positive Suction Head (NPSH).

What to Do:

• Ensure that the suction pressure is high enough to avoid cavitation. NPSH must be greater than the required NPSH for the pump to operate without cavitation.
• Check for blockage or restriction in the suction pipe that could lower the pressure.
• Increase the liquid level in the source tank or reduce the suction pipe length to improve pressure.

2.2. High Pump Speed

• Why It Matters: Operating the pump at higher speeds than it was designed for can lead to increased fluid velocities, which can cause the pressure at the pump’s suction side to drop below the vapor pressure, leading to cavitation.

What to Do:

• Check pump specifications and ensure that the operating speed is within the manufacturer’s recommended range.
• Consider installing a Variable Speed Drive (VSD) to adjust the pump speed based on system demand, preventing speeds that could cause cavitation.

2.3. Incorrectly Sized Pump

• Why It Matters: If the pump is too small for the required system demand, it will not be able to meet the required flow and pressure, which can lead to cavitation, especially if the system is overtaxed.

What to Do:

• Perform a system audit to verify that the pump is appropriately sized for the system’s needs. If the pump is undersized, replace it with one that meets the flow and head requirements of the system.
• Install VSDs or adjust system design to balance the pump’s output and the system’s demand, especially during variable load conditions.

2. Vaporization of Fluid

• Why It Matters: Cavitation can also occur when fluid temperature is too high, causing the liquid to vaporize and form bubbles inside the pump.

What to Do:

• Monitor fluid temperature and ensure it remains within the recommended operating range. For fluids with high vapor pressure, maintain adequate cooling or reduce the temperature of the fluid entering the pump.

3. Preventing Cavitation
3.1. Ensure Adequate NPSH

• Why It Matters: Ensuring that the pump has sufficient Net Positive Suction Head (NPSH) prevents cavitation by maintaining proper suction pressure.

How to Prevent Cavitation:

• Increase NPSH Available (NPSHa): Raise the liquid level in the source tank, reduce the suction pipe length, or use larger diameter pipes to increase available NPSH.
• Reduce NPSH Required (NPSHr): Lower the pump speed or change the pump design to reduce the NPSH required for operation.

3.2. Avoid Over-Speeding the Pump

• Why It Matters: Pumping at speeds higher than the design specification can cause cavitation. Always operate the pump within the speed limits to avoid pressure drops at the suction side.

How to Prevent Cavitation:

• Install VSDs to allow precise control over pump speed, ensuring that the pump operates only as fast as necessary to meet system requirements.
• Ensure Proper Pump Sizing: Correctly size the pump to meet the system’s flow and head needs without over-speeding.

3.3. Proper System Design

• Why It Matters: A well-designed system minimizes cavitation risk by ensuring sufficient suction pressure and eliminating restrictions that could cause pressure drops.

How to Prevent Cavitation:

• Design with Sufficient Suction Pressure: Ensure that the suction side of the pump is properly designed with adequate suction pipe diameter and minimal bend radius to reduce friction losses.
• Control System Pressure: Maintain a stable pressure in the system by adjusting valves and ensuring that pumps are not operating beyond their design pressure.

Cavitation can severely damage a multistage water pump if left unaddressed, leading to decreased efficiency, increased wear, and eventual system failure. Signs of cavitation, such as unusual noise, increased vibration, loss of performance, and impeller damage, should be monitored regularly to detect issues early. Understanding the causes of cavitation—such as low suction pressure, high pump speed, and improper pump sizing—can help prevent it from occurring. By ensuring adequate NPSH, maintaining proper pump speed, and designing the system to reduce pressure losses, you can prevent cavitation and keep your multistage pump operating efficiently and reliably for years to come. For more info contact Water Pump Suppliers in UAE or call us at +971 4 2522966.
