Hot water recirculation systems are designed to provide instant hot water at the tap by continuously circulating hot water through the plumbing system. Here's a general overview of how these systems work:

1. System Components: Hot water recirculation systems consist of several key components:

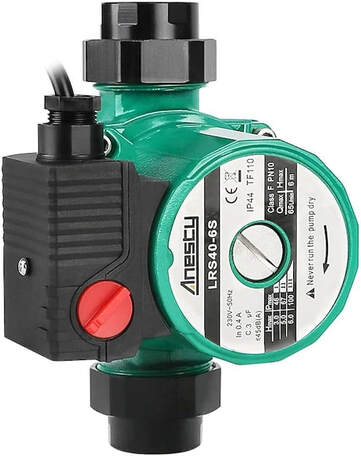

   • Pump: A dedicated pump is installed in the plumbing system to circulate hot water.
   • Check Valve: A check valve prevents hot water from flowing backward through the cold water line.
   • Thermostatic Valve or Temperature Sensor: This device controls the temperature of the hot water circulating in the system.
   • Return Line: A dedicated return line connects the last fixture on the hot water line back to the water heater, creating a closed-loop system.
2. Continuous Circulation: The recirculation pump is typically installed near the water heater. When the system is activated, the pump begins to circulate hot water from the water heater through the hot water supply line and into the dedicated return line.
3. Temperature Control: A thermostatic valve or temperature sensor is often used to monitor the water temperature in the hot water supply line. This valve ensures that the circulating water maintains a consistent temperature, preventing overheating.
4. Return to the Water Heater: The hot water travels through the hot water supply line to the fixtures. At the last fixture in the hot water line, the dedicated return line carries the cooled water back to the water heater.
5. Check Valve Prevents Backflow: A check valve is installed on the hot water supply line near the last fixture to prevent backflow. This ensures that hot water only travels in one direction through the system.
6. Timer or Smart Controls (Optional): Some recirculation systems come with timers or smart controls that allow users to schedule when the system operates. This feature helps optimize energy efficiency by only circulating hot water when it is likely to be needed.
7. On-Demand Activation (Optional): Advanced systems may include on-demand activation, allowing users to trigger the recirculation pump as needed. This can be particularly useful in homes with varying hot water usage patterns.
8. Installation Variations: There are different installation configurations for hot water recirculation systems. Some systems use a dedicated return line, while others utilize existing cold water lines for recirculation. The specific design may depend on the plumbing layout of the building.

In summary, hot water recirculation systems work by continuously circulating hot water through the plumbing system to provide instant hot water at the tap. The components of the system work together to maintain a consistent temperature and prevent wasted water while waiting for hot water to reach the fixtures. For more info contact Water Pump Suppliers in UAE or call us at +971 4 2522966.
