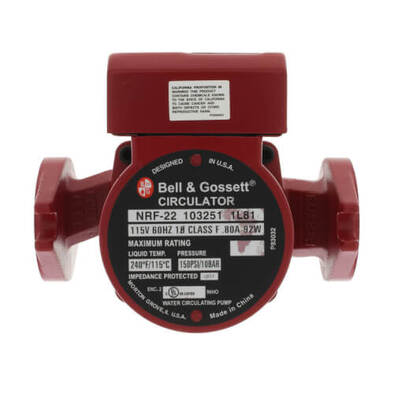

​Circulation pumps are designed to move liquids or gases through a closed system, ensuring continuous flow within the system. The basic principle of circulation pumps involves converting mechanical energy (from a motor) into kinetic energy (fluid flow), allowing fluids to circulate efficiently. There are different types of circulation pumps, but most work on a similar principle of creating pressure differences that drive the fluid movement.

1. Centrifugal Circulation Pumps
Centrifugal circulation pumps are the most common type. They work based on the principle of centrifugal force, which is generated by the rotation of an impeller inside the pump.
Principle of Operation:

• Fluid Intake: Fluid enters the pump through the inlet, typically at low pressure.
• Impeller Rotation: The motor drives a rotating impeller (a set of blades) inside the pump casing. The impeller is the core component responsible for moving the fluid.
• Centrifugal Force: As the impeller spins, it accelerates the fluid outward toward the pump casing. This creates a centrifugal force that pushes the fluid away from the center of the impeller.
• Pressure Build-Up: The fast-moving fluid creates a pressure difference. The low-pressure area near the impeller inlet draws in more fluid, while the high-pressure area at the outer edge of the impeller pushes the fluid out through the pump outlet.
• Fluid Discharge: The fluid is then discharged from the pump at a higher pressure and velocity, ready to be circulated through the system.

Key Components in Centrifugal Pumps:

• Impeller: The rotating part that moves the fluid by increasing its speed and generating pressure.
• Pump Casing: A chamber that houses the impeller and directs the flow of fluid into and out of the pump.
• Motor: Powers the impeller and provides the mechanical energy required for fluid movement.

2. Positive Displacement Circulation Pumps
Positive displacement pumps operate based on a different principle. Instead of relying on centrifugal force, these pumps move a fixed volume of fluid with each cycle. They are typically used when precise flow rates or high pressure is required.
Principle of Operation:

• Fluid Intake: The pump draws in a specific amount of fluid through the inlet.
• Fixed Volume Displacement: A mechanical mechanism (e.g., piston, diaphragm, or gear) inside the pump traps a fixed volume of fluid and forces it into the system.
• Pressure Creation: The trapped fluid is pushed into the discharge pipe with every pump cycle, creating a consistent flow even if the system’s pressure changes.
• Constant Flow: Positive displacement pumps provide a consistent flow rate regardless of changes in the system’s pressure, making them ideal for handling thicker fluids or systems requiring steady pressure.

Key Components in Positive Displacement Pumps:

• Displacement Mechanism: This could be a piston, diaphragm, or rotating gears, which trap and move a fixed amount of fluid per cycle.
• Pump Casing: Houses the displacement mechanism and directs fluid flow.
• Motor: Provides the energy needed for the displacement mechanism to operate.

3. Comparison of Centrifugal vs. Positive Displacement Pumps:

• Centrifugal Pumps:
  • Best for moving large volumes of low-viscosity fluids (e.g., water).
  • Flow rate can vary depending on system pressure and resistance.
  • Simple design, low cost, and high efficiency in large-volume applications.
• Positive Displacement Pumps:
  • Ideal for high-pressure applications or thick, viscous fluids (e.g., oils, syrups).
  • Provide a consistent, fixed flow rate.
  • Can handle more challenging fluids with solids or higher viscosity.

Circulation pumps work by creating a pressure difference to move fluids through a system. In centrifugal pumps, the impeller spins to accelerate the fluid and generate pressure, while positive displacement pumps move a fixed volume of fluid with each cycle. Both types have their unique advantages, and the choice between them depends on factors such as flow rate, pressure requirements, and the type of fluid being pumped. Understanding how each pump operates helps in selecting the right one for specific applications, ensuring efficiency and reliability. For more info contact Circulation Pump Suppliers in UAE or call us at +971 4 2522966.
