Cold water pressure vessels come in various designs, each suited to different types of water systems and applications. The primary differences between these vessels lie in their internal components, construction materials, and specific features. Below are the most common types of cold water pressure vessels:

1. Bladder Pressure Vessels

• Design: These vessels feature a flexible rubber or synthetic bladder that separates the air and water chambers. The bladder expands and contracts as water enters and exits the tank.
• Function: As water fills the vessel, it compresses the air in the air chamber, and the bladder allows the air to expand and contract, maintaining pressure. This type of vessel is most commonly used in residential and light commercial applications.
• Advantages:
  • Easy to maintain: The bladder is easily replaceable if it becomes damaged.
  • Durability: Bladder pressure vessels are durable and can last for many years with proper maintenance.
  • Cost-effective: These are generally more affordable compared to diaphragm vessels.
• Applications: Residential water systems, small-scale commercial systems, and irrigation systems.

2. Diaphragm Pressure Vessels

• Design: In diaphragm pressure vessels, a solid, flexible diaphragm (made from rubber or synthetic material) separates the air and water chambers. The diaphragm does not expand or contract like a bladder; instead, it moves back and forth as water enters and exits the vessel.
• Function: As the water fills the vessel, it presses against the diaphragm, which compresses the air in the air chamber. The diaphragm moves to accommodate water entering the tank and releases water when pressure drops.
• Advantages:
  • Higher Durability: Diaphragm pressure vessels generally offer better long-term durability, as the diaphragm is less prone to damage compared to a bladder.
  • Lower Maintenance: These vessels require less frequent maintenance and have a longer lifespan.
• Applications: Residential, commercial, and industrial water systems where durability is a key concern.

3. Non-Bladder (or Non-Diaphragm) Pressure Vessels

• Design: Unlike bladder or diaphragm vessels, non-bladder vessels do not use a flexible diaphragm or bladder to separate the air and water chambers. Instead, the vessel has a simple air chamber where water pressure forces air to compress and expand.
• Function: As water enters the vessel, it displaces the air in the air chamber. The absence of a bladder or diaphragm makes these vessels less common, but they are still used in certain specialized systems.
• Advantages:
  • Simple Design: Fewer components mean simpler maintenance and fewer chances of component failure.
  • Cost-effective: Generally, these vessels are less expensive compared to bladder and diaphragm vessels.
• Applications: Large industrial systems, firefighting systems, and other specialized applications where cost is a significant consideration.

4. Pre-Charged Pressure Vessels

• Design: These vessels come pre-charged with air at the factory to a specific pressure, typically set at 2 PSI below the pump's cut-in pressure. The air chamber compresses as water fills the tank, and the vessel helps maintain consistent pressure.
• Function: Pre-charged pressure vessels are commonly used for water systems that require precise pressure regulation. They are often found in systems with variable water demand.
• Advantages:
  • Quick Setup: These vessels are ready to use upon installation, reducing setup time.
  • Ideal for Automated Systems: The pre-charge ensures consistent water pressure without the need for continuous adjustments.
• Applications: Well water systems, irrigation systems, and commercial applications requiring high water pressure consistency.

5. Horizontal Pressure Vessels

• Design: These vessels are designed with a horizontal orientation, as opposed to the typical vertical design. The horizontal design offers stability and space-saving benefits.
• Function: Similar to other pressure vessels, they store pressurized water and help maintain stable pressure by using a bladder or diaphragm. The horizontal layout allows for easier installation in confined spaces.
• Advantages:
  • Space-Saving: Ideal for installations where vertical space is limited.
  • Easy to Install: The horizontal design allows for more flexible installation in a variety of environments.
• Applications: Residential and commercial applications with limited vertical space or where horizontal space is more accessible.

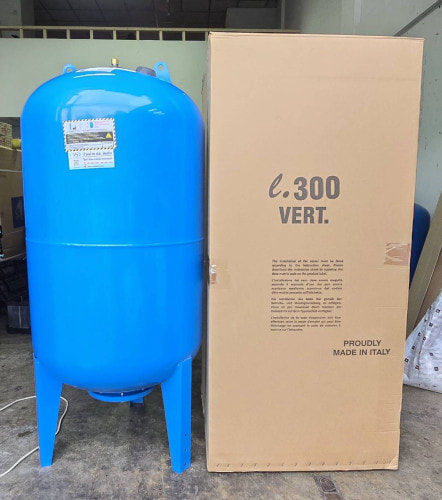

6. Vertical Pressure Vessels

• Design: Vertical pressure vessels have an upright, cylindrical shape. This is the most common design for cold water pressure vessels and is typically used for larger systems.
• Function: The pressure vessel is mounted vertically, allowing water to be stored efficiently. The bladder or diaphragm works in the same way as in other vessels, but the vertical orientation is better suited for larger capacities.
• Advantages:
  • Efficient Water Storage: The vertical orientation allows for efficient storage of water, especially in systems requiring higher water volumes.
  • Better Pressure Stability: Vertical pressure vessels tend to offer better stability in large-scale systems, making them ideal for heavy-duty applications.
• Applications: Industrial and large commercial water systems, municipal water supply, and high-demand water distribution systems.

7. Stainless Steel Pressure Vessels

• Design: These vessels are made from stainless steel, which is resistant to corrosion, rust, and damage from water chemicals.
• Function: Similar to other types of pressure vessels, these units store water under pressure and release it when required. The stainless steel construction ensures longer service life and better performance, especially in harsh environments.
• Advantages:
  • Corrosion Resistance: Ideal for systems that deal with water containing salts, minerals, or chemicals that can cause corrosion in other types of vessels.
  • Durability: Stainless steel is incredibly strong, ensuring long-term durability even in demanding conditions.
• Applications: Industrial applications, systems with high water chemical content, and locations with extreme environmental conditions.

The choice of pressure vessel depends on various factors such as system size, application, budget, and maintenance requirements. Bladder and diaphragm pressure vessels are the most commonly used, providing flexibility, durability, and reliability in maintaining consistent water pressure. Other types, such as horizontal, vertical, and stainless steel vessels, offer specialized benefits for particular installations and environments. For more info contact Wates Distributors or call us at +971 4 2522966.
