Temperature Range is a critical factor in the design and material selection of a water pressure vessel. The material and design of the vessel must be chosen to ensure it performs effectively within the expected temperature limits. Temperature fluctuations can impact the strength, durability, and overall performance of the pressure vessel, so understanding the temperature range is essential for ensuring the vessel operates safely and efficiently.

1. Understanding Temperature’s Impact on Pressure Vessel Performance

• Material Strength and Deformation:
  • Materials have different properties at varying temperatures. At higher temperatures, metals can lose their strength and become more prone to deformation. Conversely, at low temperatures, materials may become brittle and more susceptible to cracking under pressure.
  • For example, materials like carbon steel may perform well at room temperature but could lose strength at higher temperatures. Stainless steel, on the other hand, has better high-temperature performance, but extreme heat can still cause issues.
• Thermal Expansion and Contraction:
  • As temperature changes, materials expand and contract. A pressure vessel may undergo dimensional changes due to thermal expansion, which can impact its internal pressure and overall integrity.
  • If the temperature range is extreme, these changes can affect the seals, gaskets, and joints in the vessel, potentially leading to leaks or failure.
• Impact on Pressure:
  • As temperature increases, the pressure within a closed system also tends to increase, especially if the vessel is filled with water. This is due to the water's thermal expansion and the increased energy within the system.
  • In hot water systems, the pressure inside the vessel may need to be carefully managed to ensure the vessel can handle the pressure increase caused by heating.

2. Temperature Considerations in Material Selection

• Low Temperature:
  • At low temperatures, some materials, particularly metals, may become more brittle and susceptible to fracture under pressure. Carbon steel and low-alloy steels may lose their toughness in cold environments, leading to cracking or failure.
  • Materials like stainless steel or alloy steels are more resistant to brittle fracture at low temperatures and perform better in cold environments.
• High Temperature:
  • High temperatures can lead to material degradation, reduced tensile strength, and accelerated corrosion. Materials like stainless steel, alloy steels, and titanium are often selected for high-temperature applications because they maintain their strength at elevated temperatures.
  • Thermal fatigue can also affect materials exposed to fluctuating high temperatures over time. In some cases, the use of heat-resistant alloys or ceramic-lined vessels may be considered.

3. Types of Water Pressure Vessels and Temperature Range

• Standard Water Pressure Vessels (Room Temperature to Moderate Heat)
  • These vessels are commonly used in residential and commercial water systems where the temperature rarely exceeds typical domestic water heating limits (up to around 60-80°C).
  • Materials like carbon steel or fiberglass can be used for these applications, as they are more cost-effective and still perform well within the standard temperature range.
• High-Temperature Pressure Vessels (Above 80°C)
  • High-temperature water systems, such as those in industrial, power plant, or district heating applications, may involve water temperatures of up to 200°C or higher.
  • For these systems, stainless steel or alloy steels are commonly used due to their ability to withstand high temperatures and maintain their strength.
  • Titanium or nickel alloys might be used for extreme high-temperature conditions, especially in situations involving corrosive fluids or elevated thermal stresses.
• Cryogenic Pressure Vessels (Extremely Low Temperatures)
  • For systems dealing with liquefied gases or extremely low temperatures (e.g., cryogenic storage tanks), the vessel must be designed to withstand temperatures as low as -196°C (liquid nitrogen).
  • Materials such as stainless steel or aluminum are often selected for cryogenic applications, as these materials maintain their strength and flexibility at low temperatures without becoming brittle.

4. Factors Affecting Temperature Tolerance in Design

• Insulation:
  • Insulating a pressure vessel can help maintain the desired internal temperature and minimize thermal stress on the vessel material. Insulation also helps prevent heat loss or gain, which can affect the pressure inside the vessel.
  • For high-temperature applications, high-temperature insulations such as mineral wool or ceramic fibers are commonly used.
• Thermal Stress:
  • Rapid temperature fluctuations can induce thermal stress in a pressure vessel, especially in materials that expand or contract significantly with temperature changes. This can lead to fatigue failure over time.
  • Gradual temperature changes are important to minimize this risk. Pressure vessels operating in environments with frequent temperature fluctuations may require special design features, such as expansion joints or stress-relieving treatments.
• Pressure Relief and Control:
  • High temperatures can lead to pressure increases inside the vessel. To manage this, pressure relief valves are often included to allow excess pressure to escape if the internal pressure exceeds safe levels.
  • The design of pressure relief systems must also take temperature changes into account to ensure they function correctly in both high and low-temperature conditions.

5. Designing for Extreme Temperatures

• For High-Temperature Systems:
  • Heat-Resistant Alloys: Alloys such as Inconel, Monel, and Hastelloy are often used for very high-temperature water systems. These alloys maintain their strength and resist oxidation even at extreme temperatures.
  • High-Strength Stainless Steels: Grades like 316L stainless steel or 321 stainless steel offer superior resistance to high temperatures and can handle systems with water temperatures approaching 300°C or more.
• For Cryogenic and Low-Temperature Systems:
  • Stainless Steel (304L, 316L) and aluminum alloys are ideal for cryogenic temperatures, offering both strength and flexibility in extremely cold conditions.
  • Specialized cryogenic steels, designed to remain tough and ductile at low temperatures, are also used in such applications.

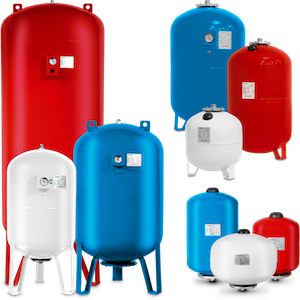

The temperature range is an essential factor in the design and material selection of a water pressure vessel. Whether dealing with high temperatures, low temperatures, or fluctuating temperature conditions, the material used must maintain its strength and integrity while being resistant to thermal stress, expansion, and corrosion. Additionally, temperature-induced pressure variations should be accounted for through design features like insulation, pressure relief systems, and appropriate material choices. By carefully considering the temperature range and its impact on the vessel’s performance, safety, and longevity, you can ensure the optimal functioning of the pressure vessel in any environment. For more info contact Wates Pressure Vessel Supplier in UAE or call us at +971 4 2522966.
