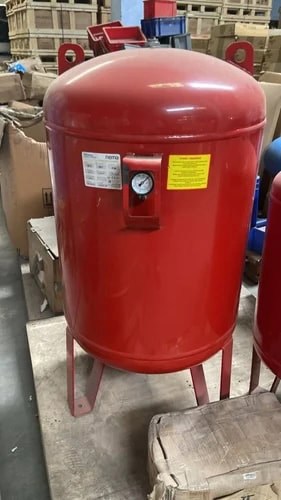

A Wates Pressure Vessel plays a vital role in hot water systems, helping manage thermal expansion, stabilise pressure, and protect equipment from damage. However, even the best vessel can fail to perform if it’s installed incorrectly.
To ensure maximum efficiency and longevity, here are the most common installation mistakes to avoid when fitting a Wates hot water pressure vessel.

1. Incorrect Sizing
Mistake: Choosing a vessel that is too small or too large for the system’s capacity.
Why it’s a problem: An undersized vessel will cause frequent pressure relief valve discharges, while an oversized vessel may waste money and space.
Solution: Use Wates’ manufacturer sizing charts and consider system volume, operating pressure, and thermal expansion before purchasing.

2. Wrong Pre-Charge Pressure Setting
Mistake: Not adjusting the pre-charge pressure to match the system requirements.
Why it’s a problem: Incorrect pre-charge can lead to waterlogging, pump cycling issues, or reduced expansion capacity.
Solution: Set the pre-charge to 0.2–0.3 bar below the pump’s cut-in pressure with the system drained.

3. Poor Location Choice
Mistake: Installing the vessel in an area exposed to extreme heat, freezing temperatures, or vibrations.
Why it’s a problem: Environmental factors can shorten the vessel’s lifespan and reduce performance.
Solution: Choose a sheltered, accessible location with enough clearance for future maintenance.

4. Skipping Isolation Valves
Mistake: Connecting the vessel directly to the system without an isolation valve.
Why it’s a problem: Makes maintenance or replacement more difficult and time-consuming.
Solution: Install an isolation valve to make servicing quick and easy.

5. Incorrect Orientation
Mistake: Installing a vertical vessel horizontally (or vice versa).
Why it’s a problem: Can cause poor performance, sediment buildup issues, and bladder wear.
Solution: Always install according to the vessel’s design — vertical for upright use, horizontal for inline or low-ceiling applications.

6. Not Following Manufacturer’s Installation Guidelines
Mistake: Ignoring the Wates installation manual or using non-approved fittings.
Why it’s a problem: Can void the warranty and lead to unsafe operation.
Solution: Follow all instructions and use only recommended fittings and accessories.

7. Neglecting Initial Leak and Pressure Testing
Mistake: Failing to check for leaks or pressure stability after installation.
Why it’s a problem: Small leaks or incorrect pressure can cause major system issues over time.
Solution: Test the system thoroughly before full operation.
Proper installation is key to getting the best performance and longest lifespan from your Wates Hot Water Pressure Vessel. By avoiding these common mistakes and following manufacturer guidelines, you can ensure your system runs efficiently, safely, and without costly interruptions. For more info contact Wates Dubai or call us at +971 4 2522966.
