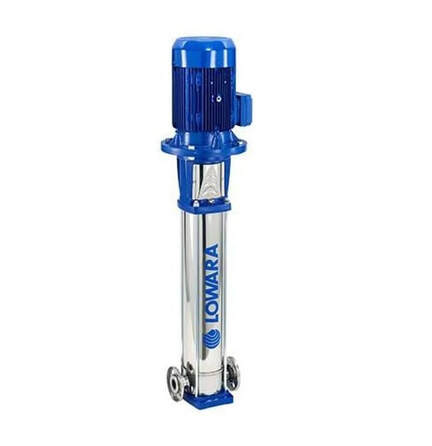

Lowara multistage pumps are designed to efficiently transport water or other fluids at high pressures, often over long distances. These pumps use multiple impellers (or stages) arranged in a series to incrementally increase the pressure of the liquid being pumped. Below is a step-by-step breakdown of how Lowara multistage pumps work.

Step 1: The Fluid Enters the Pump

• Inlet: The fluid enters the pump through the suction side (inlet). In a Lowara multistage pump, this could be clean water or any other non-viscous liquid.
• Position of Impellers: At this point, the fluid is at low pressure, and the pump starts to prepare it for pressurization through the subsequent stages.

Step 2: The First Impeller Stage

• Rotating Impeller: The pump's motor drives the first impeller. As the impeller rotates, it creates centrifugal force that pushes the fluid towards the outer edges of the pump casing.
• Increase in Velocity: This impeller increases the fluid's velocity, which is a key part of the pumping process.
• Conversion of Velocity to Pressure: The increased velocity is then converted into pressure as the fluid moves from the impeller into the diffuser or volute casing. This helps in increasing the pressure of the fluid at the exit point of the pump.

Step 3: Fluid Moves to the Next Stage

• Diffuser to Next Impeller: After passing through the first impeller and diffuser, the fluid moves into the second impeller stage. The diffuser serves as a channel to direct the flow of the fluid to the next impeller while maintaining the pressure.
• Sequential Stages: The fluid continues to move through additional impellers (usually two to six stages) in a sequential manner. Each impeller stage adds a small increase in pressure, ensuring the fluid reaches the required pressure level by the end of the pump.
• Energy Transfer: As the fluid passes through each impeller, the mechanical energy from the pump’s motor is transferred to the liquid, further raising the pressure.

Step 4: Conversion of Pressure

• Discharge Side: After passing through all the stages (impellers), the fluid reaches the discharge side of the pump at the desired high pressure.
• Flow Efficiency: The design of the impeller stages ensures that the pressure increase is achieved efficiently without excessive loss of energy. The more stages, the higher the overall pressure output.

Step 5: Exit of Fluid

• High-Pressure Fluid: The fluid is now at a much higher pressure and is ready for use in the system, whether it’s for water distribution, industrial processes, or any other application requiring high-pressure delivery.
• System Integration: The high-pressure fluid exits the pump and moves to the pipes or systems it is intended for, such as HVAC systems, irrigation networks, or firefighting systems.

Step 6: Maintaining Flow and Pressure

• Steady Flow: One of the key benefits of Lowara multistage pumps is their ability to maintain a steady and consistent flow of fluid at the required pressure. This is achieved through the continuous operation of the pump’s impellers and the balanced pressure across the stages.
• Pressure Regulation: If the system includes a pressure control valve or regulator, it ensures that the pressure remains stable throughout the operation, adjusting the flow rate if necessary.

Step 7: Repeating the Process

• Ongoing Operation: The process of drawing in fluid, pressurizing it through multiple stages, and discharging it continues as long as the pump is operating. In the case of Lowara pumps, the pump operates smoothly and efficiently, providing high-pressure fluid delivery over a long period with minimal wear and tear.

Additional Considerations in How Lowara Multistage Pumps Work

• Motor and Drive Mechanism: The motor powers the pump’s shaft, which in turn drives the impellers. The motor must be matched to the required flow and pressure specifications of the pump system.
• Pump Configurations: Lowara multistage pumps come in various configurations (vertical or horizontal), each suitable for specific installations based on space availability, fluid characteristics, and application needs.
• Energy Efficiency: One of the key design elements in Lowara pumps is energy efficiency. Each stage of the pump is designed to ensure that as much of the energy provided by the motor as possible is transferred to the fluid, reducing energy losses and lowering operational costs.
• Self-Priming: Some Lowara multistage pumps are designed to be self-priming, which means they can automatically remove air from the pump casing to allow for smooth and efficient operation after startup.

Lowara multistage pumps work by utilizing multiple impellers to progressively increase the pressure of the fluid as it moves through the pump. This method allows these pumps to handle high-pressure applications, ensuring efficient, reliable fluid movement over long distances. Whether for water distribution, industrial processes, or HVAC systems, Lowara multistage pumps are built to provide high performance with optimal energy efficiency. For more info contact Lowara Pump Supplier in UAE or call us at +971 4 2522966.
