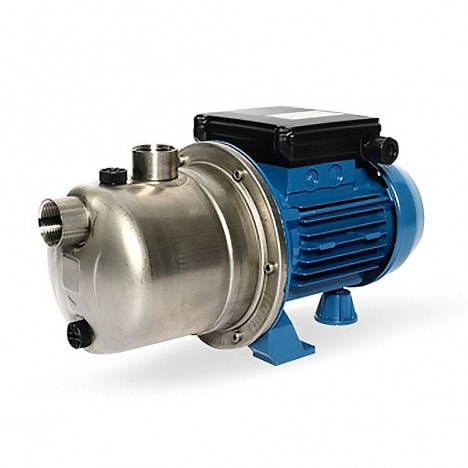

Self-priming pumps, like those from Ebara, are designed to be able to self-prime without the need for external priming. This means that they can remove air from the pump casing and begin pumping fluid automatically, making them ideal for applications where air or gas may be present in the suction line. Understanding how a self-priming pump works involves looking at the mechanical design and physical principles that allow it to function without manual priming.

1. Basic Components of a Self-Priming Pump
Before understanding the working principle, it’s helpful to know the key components of a typical self-priming pump:

• Impeller: The rotating component that moves fluid through the pump.
• Pump Casing: The body of the pump that contains the impeller and other internal components.
• Priming Chamber: A small chamber that helps initiate the priming process by storing fluid.
• Suction and Discharge Ports: The entry and exit points for the fluid entering and exiting the pump.
• Check Valve (Optional): Prevents backflow, ensuring the pump maintains its prime.

2. The Working Principle
A self-priming pump works based on the principle of air removal and fluid movement. The key steps in how it works are:
A. Initial Air Removal

1. Filling the Pump with Fluid (First-Time Priming):
   • When the pump is first started, the casing is usually empty, with air inside. In the case of self-priming pumps, they require a small amount of fluid (typically water) to be filled into the pump casing. This initial fluid filling is typically done manually or with the help of a priming chamber (if designed to assist).

1. Air Is Pushed Out:

1. • As the pump starts, the impeller begins to spin, creating a centrifugal force. This centrifugal force moves the fluid inside the pump while simultaneously forcing the air out of the pump casing. The pump casing creates a vacuum as the air is displaced, effectively evacuating the trapped air from the system.

B. Priming Process – Air and Fluid Mixture Handling

1. Creating a Vacuum:

1. • The rotation of the impeller creates a low-pressure zone in the pump casing. The pressure difference causes the fluid (and air) to move into the pump. As the impeller continues to spin, the vacuum in the pump casing gradually pulls in the fluid and air mixture from the suction line.

1. Mixing Air and Fluid:

1. • The air and liquid mixture is then forced into the priming chamber (or an internal chamber in the pump). The pump is designed so that this air-fluid mixture is continuously pumped through the system while the air is expelled.

C. Continuous Operation Once Primed

1. Achieving Full Prime:

1. • As the pump continues to run, the air is progressively removed from the system, and more liquid enters. Eventually, the pump reaches a full prime, where all the air has been expelled, and only fluid remains inside the casing.

1. Efficient Pumping:

1. • Once the pump is primed, it can continue to operate as a conventional centrifugal pump, moving the fluid from the suction port to the discharge port without any interruption. At this point, the pump is fully primed and can handle normal pumping without the need for manual intervention.

3. The Role of the Priming Chamber

• Priming Chamber Function: In many self-priming pumps, a priming chamber is used to help the pump evacuate air faster. The priming chamber stores fluid and helps ensure that the pump can quickly fill with fluid and remove air from the system.
  • The priming chamber works by holding an initial volume of fluid that helps initiate the priming process. Once the pump is turned on, the impeller moves this fluid into the system, facilitating air removal.

4. Key Features of Self-Priming Pumps

• Automatic Priming: Once the system is primed, the pump will continue to self-prime when air is present in the system (e.g., due to fluctuating fluid levels or occasional air ingress in the suction line). There is no need for manual priming after the initial start-up.
• Continuous Operation in Low or Intermittent Fluid Levels: These pumps are ideal for systems where the fluid level can drop and cause air to enter the pump, as they will re-prime themselves automatically.
• Handling Air and Fluid Mixtures: Unlike standard centrifugal pumps, which require a constant liquid supply for operation, self-priming pumps can handle mixtures of air and fluid, ensuring smooth and uninterrupted performance even under variable conditions.

5. Advantages of Self-Priming Pumps

• No Need for Manual Priming: Once the system is primed for the first time, self-priming pumps automatically handle air and re-prime themselves, saving time and labor.
• Ideal for Variable Fluid Levels: These pumps are perfect for systems where the fluid levels fluctuate or where there’s a chance of air entering the suction line (e.g., well pumping, irrigation, or drainage applications).
• Continuous Operation: They can handle interruptions in fluid supply without failing or requiring shutdown for manual priming, providing more consistent operation in demanding applications.

6. Applications of Self-Priming Pumps
Self-priming pumps are typically used in the following scenarios:

• Irrigation Systems: For agricultural applications where fluid levels may change, and the pump must maintain prime.
• Drainage Systems: Used in sumps or dewatering applications where the pump may experience varying water levels.
• Sewage and Wastewater Handling: For handling water with solids, self-priming pumps are ideal as they can deal with air and debris in the system.
• Well Water Pumping: In systems where water levels may fluctuate, these pumps can handle the rise and fall of water while ensuring the pump doesn’t lose prime.

7. Limitations of Self-Priming Pumps

• Suction Lift Limitations: Self-priming pumps have a maximum suction lift limit, meaning that the pump can only draw water from a certain height above the pump inlet. Exceeding this limit can prevent the pump from priming or operating effectively.
• Energy Consumption During Priming: The process of removing air from the pump casing and creating a vacuum can be less energy-efficient compared to traditional centrifugal pumps, especially when the pump is repeatedly cycling between air and fluid.
• Maintenance of Priming Mechanism: The self-priming mechanism, including the priming chamber and seals, requires regular maintenance to ensure they are functioning correctly and not allowing air to enter the system.

The working principle of a self-priming pump revolves around its ability to automatically remove air from the system and maintain prime without the need for external intervention. This feature makes them ideal for applications where fluid levels are inconsistent or where air is likely to enter the system, such as irrigation, drainage, and water extraction. By understanding the pump’s operation and taking advantage of its ability to handle air and fluid mixtures, you can ensure that your self-priming pump delivers reliable and efficient performance across various applications. For more info contact Ebara Pump Suppliers in UAE or call us at +971 4 2522966.
