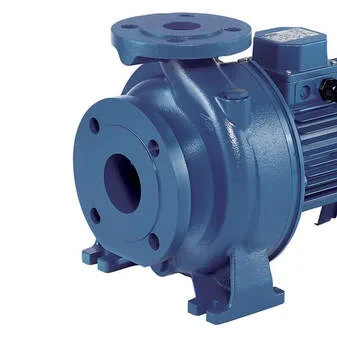

End suction pumps are among the most widely used centrifugal pumps in commercial, industrial, HVAC, and water supply systems. Ebara end suction pumps are especially known for their reliable hydraulic performance, compact design, energy efficiency, and long operational life. They are commonly used in chilled water systems, pressure boosting, irrigation, water transfer, industrial circulation, and municipal water applications.
Understanding how these pumps work helps engineers, contractors, and facility operators select the correct pump, improve efficiency, and reduce maintenance issues.
What Is an End Suction Pump?
An end suction pump is a type of centrifugal pump where the liquid enters the pump from one side of the impeller (the suction side) and exits vertically from the discharge outlet. The suction nozzle is usually located at the end of the pump casing, which is why it is called an “end suction” pump.
These pumps are designed to handle medium to high flow rates with moderate pressure requirements, making them ideal for many building services and industrial systems.
Main Components of an Ebara End Suction Pump
Pump Casing
The casing directs the liquid flow through the pump and converts velocity into pressure. Ebara pumps often use precision-engineered cast iron or stainless steel casings for durability and corrosion resistance.
Impeller
The impeller is the rotating hydraulic component that transfers energy from the motor to the liquid. As the impeller spins, it creates centrifugal force that moves water outward from the center.
Shaft
The shaft connects the motor to the impeller and transmits rotational power.
Mechanical Seal
The mechanical seal prevents water leakage where the shaft exits the casing. Proper seal selection is critical for pump reliability.
Bearings
Bearings support the rotating shaft and reduce friction during operation.
Motor
The electric motor drives the pump impeller at a specific speed, usually 2900 RPM or 1450 RPM depending on the application and frequency.
How the Working Principle Operates
The working principle of an end suction pump is based on centrifugal force.
Step 1: Water Enters Through the Suction Inlet
When the pump starts, the rotating impeller creates a low-pressure zone at the eye of the impeller. This pressure difference allows water to enter the pump through the suction pipe.
Step 2: Impeller Accelerates the Liquid
The rotating impeller blades transfer kinetic energy to the liquid. Water moves rapidly outward from the center of the impeller toward the outer edge.
Step 3: Centrifugal Force Increases Velocity
As the liquid moves outward, centrifugal force increases the velocity of the fluid inside the pump casing.
Step 4: Velocity Converts into Pressure
Inside the volute casing, the high velocity energy is converted into pressure energy. This pressurized liquid then exits through the discharge outlet.
Step 5: Continuous Flow Is Maintained
As long as the motor continues rotating, the pump maintains continuous liquid movement through the system.
The core hydraulic concept can be represented as:
This relationship explains how the pump converts mechanical energy into hydraulic pressure.
Why Ebara End Suction Pumps Are Efficient
Optimized Hydraulic Design
Ebara pumps are designed with efficient impeller geometries that reduce hydraulic losses and improve flow stability.
Balanced Rotor Construction
Precision balancing reduces vibration and extends bearing and seal life.
High-Quality Materials
Stainless steel and coated cast iron options improve corrosion resistance and reliability.
Energy Efficiency
Modern Ebara pumps are designed to operate close to their Best Efficiency Point (BEP), reducing power consumption.
Common Applications
HVAC Systems
Used for chilled water circulation, condenser water systems, and heating water circulation.
Commercial Buildings
Applied in water transfer, pressure boosting, and circulation systems.
Industrial Applications
Used in factories, process cooling, washing systems, and utility water transfer.
Irrigation Systems
Suitable for agricultural and landscape irrigation applications.
District Cooling
Widely used in large chilled water distribution systems in the UAE and GCC region.
Advantages of Ebara End Suction Pumps
Common Problems Affecting Pump Performance
Cavitation
Occurs when suction pressure becomes too low, causing vapor bubbles inside the pump.
Air Entrapment
Air inside the suction line reduces hydraulic performance.
Incorrect Pump Sizing
Oversized or undersized pumps operate inefficiently and increase energy consumption.
Misalignment
Poor alignment between motor and pump increases vibration and bearing wear.
Operating Away from BEP
Running too far from the Best Efficiency Point can reduce efficiency and shorten pump life.
Importance of Proper System Design
Even a high-quality pump cannot perform properly if the overall hydraulic system is poorly designed. Proper pipe sizing, suction conditions, valve selection, and system balancing are essential for achieving reliable performance.
Engineers must carefully evaluate:
Understanding how these pumps work helps engineers, contractors, and facility operators select the correct pump, improve efficiency, and reduce maintenance issues.
What Is an End Suction Pump?
An end suction pump is a type of centrifugal pump where the liquid enters the pump from one side of the impeller (the suction side) and exits vertically from the discharge outlet. The suction nozzle is usually located at the end of the pump casing, which is why it is called an “end suction” pump.
These pumps are designed to handle medium to high flow rates with moderate pressure requirements, making them ideal for many building services and industrial systems.
Main Components of an Ebara End Suction Pump
Pump Casing
The casing directs the liquid flow through the pump and converts velocity into pressure. Ebara pumps often use precision-engineered cast iron or stainless steel casings for durability and corrosion resistance.
Impeller
The impeller is the rotating hydraulic component that transfers energy from the motor to the liquid. As the impeller spins, it creates centrifugal force that moves water outward from the center.
Shaft
The shaft connects the motor to the impeller and transmits rotational power.
Mechanical Seal
The mechanical seal prevents water leakage where the shaft exits the casing. Proper seal selection is critical for pump reliability.
Bearings
Bearings support the rotating shaft and reduce friction during operation.
Motor
The electric motor drives the pump impeller at a specific speed, usually 2900 RPM or 1450 RPM depending on the application and frequency.
How the Working Principle Operates
The working principle of an end suction pump is based on centrifugal force.
Step 1: Water Enters Through the Suction Inlet
When the pump starts, the rotating impeller creates a low-pressure zone at the eye of the impeller. This pressure difference allows water to enter the pump through the suction pipe.
Step 2: Impeller Accelerates the Liquid
The rotating impeller blades transfer kinetic energy to the liquid. Water moves rapidly outward from the center of the impeller toward the outer edge.
Step 3: Centrifugal Force Increases Velocity
As the liquid moves outward, centrifugal force increases the velocity of the fluid inside the pump casing.
Step 4: Velocity Converts into Pressure
Inside the volute casing, the high velocity energy is converted into pressure energy. This pressurized liquid then exits through the discharge outlet.
Step 5: Continuous Flow Is Maintained
As long as the motor continues rotating, the pump maintains continuous liquid movement through the system.
The core hydraulic concept can be represented as:
This relationship explains how the pump converts mechanical energy into hydraulic pressure.
Why Ebara End Suction Pumps Are Efficient
Optimized Hydraulic Design
Ebara pumps are designed with efficient impeller geometries that reduce hydraulic losses and improve flow stability.
Balanced Rotor Construction
Precision balancing reduces vibration and extends bearing and seal life.
High-Quality Materials
Stainless steel and coated cast iron options improve corrosion resistance and reliability.
Energy Efficiency
Modern Ebara pumps are designed to operate close to their Best Efficiency Point (BEP), reducing power consumption.
Common Applications
HVAC Systems
Used for chilled water circulation, condenser water systems, and heating water circulation.
Commercial Buildings
Applied in water transfer, pressure boosting, and circulation systems.
Industrial Applications
Used in factories, process cooling, washing systems, and utility water transfer.
Irrigation Systems
Suitable for agricultural and landscape irrigation applications.
District Cooling
Widely used in large chilled water distribution systems in the UAE and GCC region.
Advantages of Ebara End Suction Pumps
- Compact and space-saving design
- Easy installation and maintenance
- Reliable continuous operation
- Good hydraulic efficiency
- Suitable for a wide range of flow rates
- Lower operating and maintenance costs
- Wide material and motor configuration options
Common Problems Affecting Pump Performance
Cavitation
Occurs when suction pressure becomes too low, causing vapor bubbles inside the pump.
Air Entrapment
Air inside the suction line reduces hydraulic performance.
Incorrect Pump Sizing
Oversized or undersized pumps operate inefficiently and increase energy consumption.
Misalignment
Poor alignment between motor and pump increases vibration and bearing wear.
Operating Away from BEP
Running too far from the Best Efficiency Point can reduce efficiency and shorten pump life.
Importance of Proper System Design
Even a high-quality pump cannot perform properly if the overall hydraulic system is poorly designed. Proper pipe sizing, suction conditions, valve selection, and system balancing are essential for achieving reliable performance.
Engineers must carefully evaluate:
- Required flow rate
- Total dynamic head
- Pipe friction losses
- NPSH requirements
- Operating temperature
- Fluid characteristics
