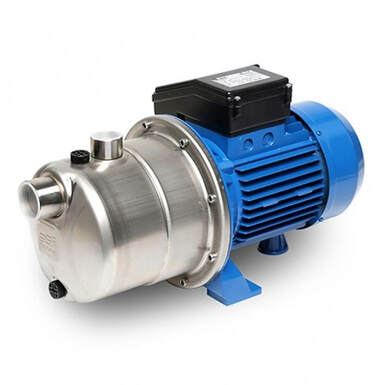

Installing an Ebara self-priming pump correctly is crucial to ensure efficient operation, minimize maintenance issues, and maximize pump longevity. Self-priming pumps are designed to handle air in the suction line and are ideal for applications where fluid levels fluctuate or air can enter the system. Below is a comprehensive step-by-step installation guide to help you install your Ebara self-priming pump safely and efficiently.

1. Preparation Before Installation
A. Review the Manufacturer’s Manual

• Action: Read the Ebara pump's user manual thoroughly to understand its specifications, recommended installation practices, and the system’s requirements.
• Benefit: The manual provides essential information on performance parameters, suction lift limits, and installation recommendations specific to the pump model.

B. Gather Required Tools and Materials

• Tools Needed:
  • Wrenches (adjustable and spanner)
  • Pipe cutter and deburring tool
  • Thread sealant or PTFE tape
  • Measuring tape
  • Leveling tool
  • Screwdriver
  • Hose clamps (for suction and discharge hoses)
  • Gasket material (if applicable)
• Materials Needed:
  • Suction and discharge pipes (appropriate diameter)
  • PVC, stainless steel, or rubber piping (depending on fluid type)
  • Check valve for the suction line (optional)
  • Priming chamber or container (if required)

C. Verify Site and Space Requirements

• Action: Ensure that the installation location meets the pump’s space and ventilation requirements. The pump should be installed on a flat, stable surface to reduce vibrations and ensure smooth operation.
• Check: The pump should be placed close to the fluid source to minimize suction lift, with adequate clearance around it for future maintenance.

2. Install the Pump Foundation
A. Position the Pump

• Action: Place the pump on a solid, stable base, ensuring it is level.
• Benefit: A level pump ensures that it operates correctly, preventing wear on internal parts caused by improper alignment. For larger pumps, it’s crucial to secure the pump to the foundation to prevent vibrations.

B. Install the Pump on a Vibration-Isolating Base (If Necessary)

• Action: If the pump will be operating in an environment with high vibrations, install vibration isolators or rubber mounts under the pump base to reduce noise and prevent damage to surrounding structures.

3. Connect the Suction and Discharge Pipes
A. Connect the Suction Line

• Action: Connect the suction pipe to the pump’s suction port. Ensure that the suction pipe is as short and straight as possible to reduce friction losses.
• Pipe Sizing: Choose a properly sized suction pipe that matches the pump’s requirements. Avoid undersized pipes, as this can create excessive friction, reducing the pump's efficiency.
• Suction Lift Consideration:
  • Self-priming pumps typically have a suction lift capacity (how high the pump can draw fluid). Ensure the suction lift doesn’t exceed the pump’s rated capacity.
  • Install a foot valve or check valve at the bottom of the suction line to prevent the pump from losing prime.

B. Connect the Discharge Line

• Action: Connect the discharge pipe to the pump’s discharge port. This pipe should be of adequate size to handle the discharge flow without causing excessive pressure.
• Check Valve: Install a check valve in the discharge line to prevent backflow and keep the pump primed.

C. Install Valves and Fittings

• Action: Install any necessary shut-off valves and strainers in the suction and discharge lines to control flow and protect the pump from debris or blockages.
• Strainers: Place a strainer in the suction line to prevent debris from entering the pump and damaging internal parts.

4. Install the Priming Chamber (If Required)
A. Position the Priming Chamber

• Action: Some self-priming pumps may require a priming chamber to help with the initial priming process. Install the chamber according to the manufacturer’s guidelines.
• Check: Ensure the priming chamber is at a higher level than the pump, so it can supply fluid for priming.

B. Fill the Pump with Fluid

• Action: Before starting the pump, ensure the pump casing is filled with fluid to initiate the priming process. Some pumps may require you to manually fill the pump with water or another fluid (as per the application).

5. Electrical Connections and Wiring
A. Connect the Electrical Wiring

• Action: Connect the pump’s electrical motor to the power supply, following the manufacturer’s instructions for voltage and amperage requirements.
• Electrical Safety: Make sure the motor’s voltage and amp ratings match the electrical supply to avoid overload. Also, ensure the electrical connections are secure and insulated to prevent electrical hazards.

B. Install a Circuit Breaker or Disconnect Switch

• Action: Install a circuit breaker or disconnect switch near the pump to provide an emergency shut-off in case of overload or short circuit.
• Benefit: This ensures operator safety and allows for easy maintenance without disrupting the entire electrical system.

6. Initial Start-Up and Priming
A. Prime the Pump

• Action: Start the pump, ensuring it primes itself. If the pump does not automatically prime, you may need to assist it manually by adding fluid to the casing or using the priming chamber.
• Monitoring: Monitor the pump for a few minutes to ensure it achieves the proper prime and begins to draw fluid. If the pump fails to prime, check for air leaks or blockages in the suction line.

B. Check for Leaks

• Action: After the pump is primed and running, check all pipe connections for leaks. Tighten any loose fittings and ensure that the pump is sealed correctly.

C. Monitor Pump Performance

• Action: Observe the pump’s flow rate, pressure, and vibration. Verify that it is operating within the expected parameters (according to the manufacturer’s specifications).
• Adjustments: If necessary, adjust the system’s flow or pressure settings to ensure optimal performance. Use a pressure gauge or flow meter to monitor this.

7. Final Checks and System Integration
A. System Integration

• Action: Integrate the pump into the broader system. If it’s part of a larger water distribution or processing system, ensure that the pump works correctly with control systems, valves, and other components.

B. Test Run

• Action: Run the pump for an extended period (at least 30 minutes to 1 hour) to ensure it operates correctly without issues like cavitation, excessive vibration, or overheating.
• Check: Verify that the system reaches the desired pressure and flow rates, and ensure there are no unusual noises or leaks.

8. Ongoing Maintenance and Inspection
A. Regular Maintenance Schedule

• Action: Set up a maintenance schedule that includes regular checks of the pump’s seals, bearings, impellers, and priming chamber. Clean the suction strainer and discharge valve periodically.
• Lubrication: Regularly lubricate any moving parts to reduce friction and wear.

B. Check for Air Leaks

• Action: Periodically check the suction line for air leaks that could prevent proper priming and reduce efficiency.
• Replacement: Replace any worn or damaged parts promptly to prevent larger system failures.

Proper installation of an Ebara self-priming pump ensures optimal performance, reliable operation, and long pump life. By following these steps, you can ensure the pump is correctly installed, primed, and integrated into your system. Regular monitoring and maintenance are crucial for ensuring that the pump continues to operate efficiently and reliably. ​For more info contact Ebara Pump Suppliers in UAE or call us at +971 4 2522966.
