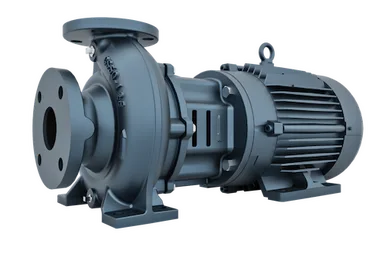

End suction pumps are widely used in HVAC systems, water supply networks, industrial applications, irrigation, and commercial buildings because of their reliable hydraulic performance and simple construction. Although these pumps may appear mechanically simple from the outside, each internal component plays a critical role in ensuring efficient and stable operation.
Understanding the key components inside an Ebara end suction pump helps engineers, technicians, and contractors improve installation quality, troubleshooting accuracy, and long-term pump reliability.

Pump Casing
​The pump casing is the outer body of the pump that contains the liquid during operation. It directs water flow through the pump while converting velocity energy into pressure energy.
The casing in Ebara pumps is commonly manufactured from:

• Cast iron
• Stainless steel
• Bronze or specialty alloys for corrosive applications

The casing is designed in a volute shape, which gradually increases in cross-sectional area to reduce liquid velocity and increase pressure before discharge.
Functions of the Pump Casing

• Contains and guides liquid flow
• Converts kinetic energy into pressure
• Protects internal rotating components
• Handles system operating pressure

Impeller
The impeller is the most important hydraulic component inside the pump. It is mounted directly on the shaft and rotates at high speed to move the liquid.
As the impeller spins, centrifugal force pushes water outward from the center toward the outer edge.
The hydraulic energy transfer process can be represented by:
This equation explains how rotational velocity creates pump head and fluid movement.
Types of Impellers Used

• Closed impellers
• Semi-open impellers
• Open impellers for solids handling applications

Functions of the Impeller

• Transfers energy to the liquid
• Creates flow and pressure
• Determines pump efficiency
• Influences hydraulic performance

Shaft
The shaft connects the motor to the impeller and transmits rotational energy.
It must be precisely aligned and balanced to avoid vibration and mechanical stress.
Functions of the Shaft

• Rotates the impeller
• Transfers motor torque
• Maintains rotational stability

Ebara shafts are typically made from stainless steel for strength and corrosion resistance.

Mechanical Seal
The mechanical seal prevents liquid leakage where the rotating shaft exits the pump casing.
Without a proper seal, water would leak continuously during operation.
Main Parts of a Mechanical Seal

• Rotating seal face
• Stationary seal face
• Springs
• Elastomers or O-rings

Functions of the Mechanical Seal

• Prevents leakage
• Maintains internal pressure
• Protects motor and bearings

Mechanical seals are one of the most critical wear components in any centrifugal pump.

Bearings
Bearings support the rotating shaft and reduce friction between moving components.
They maintain shaft stability and ensure smooth operation during high-speed rotation.
Functions of Bearings

• Support radial and axial loads
• Reduce friction
• Minimize vibration
• Protect shaft alignment

Damaged bearings often cause:

• Excessive noise
• Vibration
• Motor overheating
• Seal failure

Wear Rings
Wear rings are replaceable components installed between the impeller and casing.
They help reduce internal recirculation losses and maintain pump efficiency.
Functions of Wear Rings

• Maintain hydraulic efficiency
• Reduce leakage inside the pump
• Protect casing and impeller from wear

Over time, excessive clearance between wear rings can reduce pump performance.

Shaft Sleeve
The shaft sleeve protects the shaft from wear, corrosion, and seal damage.
Instead of replacing the entire shaft during maintenance, technicians can replace only the sleeve.
Functions of Shaft Sleeves

• Protect the shaft surface
• Reduce maintenance costs
• Improve seal reliability

Coupling
In long-coupled Ebara end suction pumps, the coupling connects the motor shaft to the pump shaft.
Functions of the Coupling

• Transfers rotational power
• Absorbs minor misalignment
• Reduces vibration transmission

Incorrect coupling alignment can cause:

• Bearing damage
• Seal leakage
• Excessive vibration

Motor
The motor supplies mechanical energy to drive the pump.
Ebara end suction pumps commonly use:

• IE2 motors
• IE3 high-efficiency motors
• Variable frequency drive (VFD) compatible motors

Functions of the Motor

• Drives the impeller
• Controls pump speed
• Determines power consumption

Motor speed directly affects pump performance according to the affinity laws:Q∝N
H∝N2H \propto N^2H∝N2
P∝N3P \propto N^3P∝N3
Where:
QQQ = flow rate HHH = head

• PPP = power
• NNN = rotational speed

These relationships explain why VFDs significantly improve energy efficiency.

Suction and Discharge Nozzles
The suction nozzle allows liquid to enter the pump, while the discharge nozzle directs pressurized liquid into the system.
Importance of Proper Nozzle Design

• Reduces turbulence
• Minimizes suction losses
• Improves hydraulic stability

Poor piping design near these nozzles can negatively affect pump performance.

Baseplate
The baseplate supports both the pump and motor assembly.
A rigid and level baseplate is essential for proper alignment and vibration control.
Functions of the Baseplate

• Maintains structural stability
• Supports alignment
• Reduces vibration

Why Understanding Pump Components Matters
Understanding internal pump components helps:

• Improve troubleshooting accuracy
• Reduce downtime
• Prevent premature failures
• Improve energy efficiency
• Extend pump life

Many pump failures are caused not by the pump itself, but by improper installation, poor alignment, cavitation, or lack of maintenance.

Common Component Failures
Mechanical Seal Failure
Often caused by:

• Dry running
• Cavitation
• Misalignment
• Contaminated fluid

Bearing Failure
Usually caused by:

• Poor lubrication
• Misalignment
• Excessive vibration

Impeller Damage
Can occur due to:

• Cavitation
• Corrosion
• Abrasive particles

Shaft Damage
Usually caused by:

• Coupling misalignment
• Excessive vibration
• Seal wear

Ebara end suction pumps rely on several carefully engineered components working together to achieve efficient fluid movement and reliable operation. Components such as the impeller, casing, shaft, bearings, seals, and motor all play critical roles in maintaining hydraulic performance and system stability. For more info contact Ebara Pump Suppliers or call us at +971 4 2522966.
