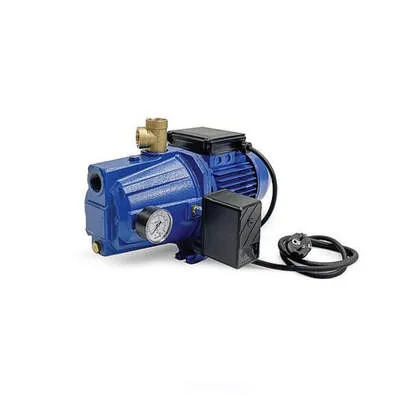

Ebara self-priming pumps are designed to operate efficiently without the need for manual priming before starting the pump. This automatic priming function simplifies the process, ensuring smooth operation and eliminating the hassle of manually filling the pump casing with water. Here’s a step-by-step guide explaining how these pumps work.

Step 1: Initial Start-Up

• Dry Pump Condition: At the beginning, the pump is in a dry condition with air inside the pump casing. The self-priming feature allows the pump to start from this state without needing to manually fill the pump with liquid.
• Starting the Pump: When the pump is turned on, the motor begins driving the impeller inside the pump casing. The impeller’s motion creates centrifugal force, which pushes liquid (usually water) from the pump inlet through the pump.

Step 2: Creating Suction

• Suction of Air and Liquid: The impeller generates a high-speed rotation, which forces the air and any remaining water in the pump casing toward the discharge port. As the air is moved toward the discharge, a vacuum is created in the inlet side of the pump casing.
• Priming Action: The vacuum forces the surrounding liquid (usually water) to enter the pump casing from the inlet. During this process, air is continually expelled from the casing, and the pump starts to fill with the liquid, ensuring that there is enough fluid to start the pumping action.

Step 3: Air Removal and Continuous Operation

• Expelling Remaining Air: As the liquid enters the pump, the air is gradually pushed out, and the system reaches its operational state. The pump will continue removing air until the system is fully primed, and a continuous flow of liquid is established.
• Continuous Pumping: Once priming is complete, the impeller begins moving the liquid through the pump system at a constant rate. The centrifugal force generated by the impeller keeps the liquid flowing from the inlet to the discharge port. At this point, the self-priming pump is operating as a traditional centrifugal pump, moving liquid without any further need for air removal.

Step 4: Automatic Re-Priming (if needed)

• Handling Air Intrusion: If air enters the system after initial priming (such as during interruptions in the flow, or if the pump loses its prime due to changes in liquid levels), the self-priming function automatically kicks in again. The pump can re-prime itself, expelling any trapped air and resuming normal operation.
• Resuming Flow: Once the air is removed, the pump will continue to operate smoothly without requiring manual intervention, ensuring continuous flow.

Step 5: Maintaining Consistent Operation

• Continuous Suction and Discharge: Throughout operation, the self-priming pump maintains the suction pressure, ensuring that the liquid is consistently pulled into the pump casing. The impeller then expels the liquid through the discharge, maintaining steady and reliable performance.
• Energy Efficiency: As the pump continues to work, the system maintains efficiency because the self-priming mechanism minimizes energy loss typically associated with priming. The pump only requires minimal energy to maintain the flow once it’s up and running.

Key Features of Ebara Self-Priming Pumps in Action:

• Vacuum Creation: The creation of a vacuum in the pump casing is a crucial step, allowing the pump to draw in liquid from the inlet without the need for external assistance.
• No Manual Priming Required: The automatic removal of air allows the pump to start without manual priming, saving time and effort.
• Reliable Performance in Air-Exposed Conditions: These pumps can handle situations where the water source is exposed to air, such as drainage, wastewater, or situations where the pump is above the water level.

Summary of the Self-Priming Process

1. The pump starts and the impeller creates centrifugal force, drawing air into the pump casing.
2. A vacuum is created at the inlet, which begins drawing in liquid from the water source.
3. Air is gradually removed from the pump, and it becomes fully primed.
4. The pump operates continuously, expelling air and moving liquid efficiently.
5. In case of air intrusion, the pump automatically re-primes and resumes normal operation.

Ebara self-priming pumps simplify the pumping process by eliminating the need for manual priming, making them ideal for various applications, from drainage and irrigation to industrial processes. Their efficient, reliable, and easy-to-maintain design ensures that your systems run smoothly with minimal downtime. For more info contact Ebara Dealers or call us at +971 4 2522966.
