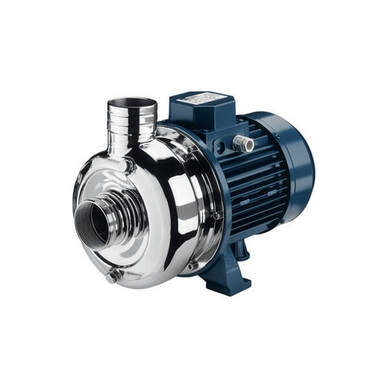

Ebara DWO Open Impeller Pump

The Ebara DWO Open Impeller Pump is a high-quality stainless steel centrifugal pump specifically designed for handling clean and slightly dirty liquids containing suspended solids. Manufactured in AISI 304 stainless steel, the DWO series features an open impeller design that allows the passage of solids up to 19 mm, making it ideal for industrial washing, food processing, water treatment, liquid transfer, and wastewater applications. Its robust construction, compact design, and high hydraulic efficiency ensure reliable performance in demanding environments. with back pull-out construction
Suitable for continuous-duty operation

Available in single-phase and three-phase models Protection Class: IP55
Insulation Class: F
Impeller Material: Stainless Steel AISI 304
Pump Body Material: Stainless Steel AISI 304 plants
Liquid transfer systems
Chemical processing
Industrial cleaning applications .

The open impeller design enables the pump to handle liquids containing small solids and fibrous materials without frequent clogging. Stainless steel hydraulic components provide excellent resistance to corrosion, making the DWO series suitable for both clean water and process liquids. The robust construction and reliable mechanical seal system help reduce maintenance requirements and extend service life.

Applications

Domestic pressurisation
Small-scale garden irrigation
Washing
Water treatment
Cooling towers
Handling of clean water in general

TECHNICAL DATA
Flow rate: from 6 to 66 m³/h
Total head: 17.5 to 5.1 m
Max. working pressure: 8 bar
Protection degree: IP55
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

MATERIALS
Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: Stainless steel AISI 304 (EN 1.4301) (CDX)

Each and every EBARA product is designed and built to achieve the highest level of reliability, guaranteed by rigorous, quality control programs and testing throughout the entire production cycle. EBARA centrifugal electric pumps are protected by and carry international patents.

Key Features of the Ebara CDX Pump:

Open Impeller Design for handling clean water and liquids containing suspended solids and small particles up to 19 mm.
AISI 304 Stainless Steel Construction for the casing, impeller, and wetted components, providing excellent corrosion resistance and long service life.
High Hydraulic Efficiency that reduces energy consumption and operating costs while maintaining reliable performance.
Compact Monoblock Design with close-coupled motor construction, saving installation space and simplifying maintenance.
Back Pull-Out Construction allowing easy inspection and replacement of the impeller and mechanical seal without disconnecting pipework.
Solid Handling Capability suitable for dirty water, industrial washing systems, food processing, and liquid transfer applications.
Robust Mechanical Seal System designed for continuous operation and available with optional high-temperature and chemical-resistant seal materials.
Self-Venting Hydraulic Design with top centerline discharge to improve operational stability and reduce air locking.
Low Noise Operation and smooth hydraulic passages for reliable and quiet performance.
Wide Operating Range with flow rates up to 66 m³/h and heads up to 18 m, suitable for commercial and industrial applications.

As an leading supplier of Ebara pumps, Dxb Solutions LLC is your trusted partner for acquiring the DWO series. Our knowledgeable team is ready to assist you in selecting the right pump for your specific requirements. Experience the reliability and efficiency of the Ebara CDX pump with Dxb Solutions LLC.

Looking for a complete range of Ebara products? Visit our Ebara Pump Suppliers in UAE page.
