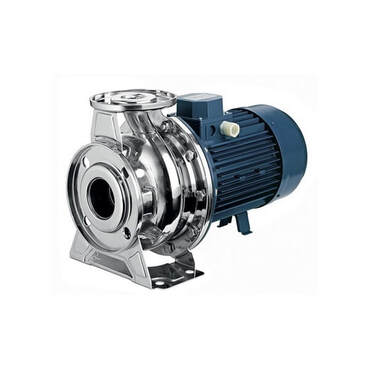

Ebara 3M pumps are stainless steel end suction centrifugal pumps designed for water supply, pressure boosting, HVAC systems, cooling water circulation, irrigation, water treatment, and industrial water transfer applications. Manufactured in AISI 304 stainless steel with a compact close-coupled design, Ebara 3M pumps provide excellent corrosion resistance, high hydraulic efficiency, reliable operation, and long service life. These pumps are widely used in commercial buildings, industrial facilities, water treatment plants, and infrastructure projects.
Centrifugal pumps close coupled and standardized
Standardised single-stage centrifugal pumps (EN 733)

TECHNICAL FEATURES
• Available with various special sealing systems
• Impeller hydraulically balanced to prevent axial thrusts against the seal, it achieves
80% efficiency.
• Made of stainless steel AISI 304
• Back pull-out design : it allows removal of the motor, the coupling, the cantilever
support and the impeller without compromising the housing of the pump body or removing the pipes.

LIQUID TEMPERATURE RANGE
from -10°C to + 90°C for the standard version
from -20°C to + 120°C for the special versions

MAXIMUM WORKING PRESSURE
10 bar

MATERIALS AVAILABLE
Stainless steel AISI 304 for 3 SERIES
Stainless steel AISI 316 for 3M SERIES
Micro-cast stainless steel AISI 316 for the 3M SERIES 65-250, 3M SERIES 80

REGULATION
It complies with regulations ErP 547/2012 (index MEI > 0.4), 640/2009 (motors in IE3 efficiency class) EN 733

"Z version" : with adjustable foot
