Ebara CDXL Series Pumps

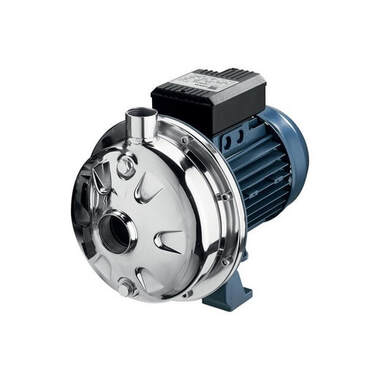

Ebara CDX and CDXL Pump
Ebara Single-impeller centrifugal pump in AISI 304 and AISI 316 stainless steel, with radial impeller and components made by the hydroforming process that provides high resistance to corrosion.
Introducing the Ebara CDX Series Pump, a testament to cutting-edge engineering and unmatched performance in the world of pumping solutions. Ebara, a global leader in fluid handling technology, brings you the CDX pump series, designed to meet the demands of various applications with efficiency, reliability, and precision.
The hydraulic fluid, in our case water, with increasing pressure pushes the stainless steel to copy the shapes of the template until it comes into contact with the internal walls of the matrix that forms the mould. Hydroforming, which combines the power of a press with the force of water, has significant advantages over traditional processes, namely:
• Perfectly smooth shape
• Highly smooth running
• No welding points
These features ensure high corrosion resistance, high efficiency with performance above 80% and low losses.
The small size of CDX(L) electric pumps makes them suitable for narrow or difficult to reach spaces.
The versatility of these electric pumps is due to the different types of mechanical seals that can be applied.
Applications
TECHNICAL DATA
Flow rate: from 1.2 to 15 m³/h
Total head: From 37.5 to 12.5 m
Max. working pressure: 8 bar
Protection degree: IP55
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%
MATERIALS
Pump body: Stainless steel AISI 304 (EN 1.4301) (CDX)
Stainless steel AISI 316L (EN 1.4404) (CDXL)
Impeller: Stainless steel AISI 304 (EN 1.4301) (CDX)
Stainless steel AISI 316L (EN 1.4404) (CDXL)
Introducing the Ebara CDX Series Pump, a testament to cutting-edge engineering and unmatched performance in the world of pumping solutions. Ebara, a global leader in fluid handling technology, brings you the CDX pump series, designed to meet the demands of various applications with efficiency, reliability, and precision.
The hydraulic fluid, in our case water, with increasing pressure pushes the stainless steel to copy the shapes of the template until it comes into contact with the internal walls of the matrix that forms the mould. Hydroforming, which combines the power of a press with the force of water, has significant advantages over traditional processes, namely:
• Perfectly smooth shape
• Highly smooth running
• No welding points
These features ensure high corrosion resistance, high efficiency with performance above 80% and low losses.
The small size of CDX(L) electric pumps makes them suitable for narrow or difficult to reach spaces.
The versatility of these electric pumps is due to the different types of mechanical seals that can be applied.
Applications
- Domestic pressurisation
- Small-scale garden irrigation
- Washing
- Water treatment
- Cooling towers
- Handling of clean water in general
TECHNICAL DATA
Flow rate: from 1.2 to 15 m³/h
Total head: From 37.5 to 12.5 m
Max. working pressure: 8 bar
Protection degree: IP55
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%
MATERIALS
Pump body: Stainless steel AISI 304 (EN 1.4301) (CDX)
Stainless steel AISI 316L (EN 1.4404) (CDXL)
Impeller: Stainless steel AISI 304 (EN 1.4301) (CDX)
Stainless steel AISI 316L (EN 1.4404) (CDXL)
Each and every EBARA product is designed and built to achieve the highest level of reliability, guaranteed by rigorous, quality control programs and testing throughout the entire production cycle. EBARA centrifugal electric pumps are protected by and carry international patents.
Key Features of the Ebara CDX Pump:
- Robust Construction: The Ebara CDX pump is built with durability in mind. Its robust construction ensures a long operational life, making it a reliable choice for your pumping needs.
- Efficient Performance: With advanced technology and precision engineering, the CDX series offers efficient and consistent performance across a range of applications. Whether you're dealing with water supply, irrigation, or industrial processes, the CDX pump delivers results.
- High-Quality Materials: Ebara prioritizes quality materials in the manufacturing of the CDX pump. This ensures resistance to corrosion, wear, and tear, making it suitable for various environments and fluids.
- User-Friendly Design: The CDX pump is designed with user convenience in mind. Easy installation, minimal maintenance requirements, and user-friendly controls make it an excellent choice for both professionals and end-users.
- Versatility: The CDX series is versatile, adapting seamlessly to different scenarios and applications. Its adaptability makes it a preferred choice across industries.
- Energy Efficiency: Ebara is committed to sustainability, and the CDX pump reflects this commitment by offering energy-efficient operation. Save on operational costs while maintaining optimal performance.
As an leading supplier of Ebara pumps, Dxb Solutions LLC is your trusted partner for acquiring the CDX series. Our knowledgeable team is ready to assist you in selecting the right pump for your specific requirements. Experience the reliability and efficiency of the Ebara CDX pump with Dxb Solutions LLC.
Looking for a complete range of Ebara products? Visit our Ebara Pump Suppliers in UAE page.
