Correct positioning and mounting of booster pumps are just as important as proper pump selection. Even a high-quality booster pump can suffer from excessive vibration, seal failure, bearing damage, and noise issues if it is poorly positioned or incorrectly mounted. Many long-term reliability problems originate not from hydraulic or electrical faults, but from mechanical stresses introduced at installation.
This article explains how to correctly position and mount booster pumps to ensure stable operation, reduced wear, and extended service life.
Why Pump Positioning and Mounting Matter
Booster pumps are rotating machines that generate dynamic forces during operation. These forces must be properly absorbed and isolated by the foundation and mounting system. Incorrect positioning transfers stress into the pump casing, shaft, bearings, and connected piping, leading to premature mechanical failure.
Proper mounting ensures:
Choosing the Right Location for Booster Pumps
Install Pumps Close to the Suction Source
Booster pumps should be positioned as close as possible to the suction source, such as a ground tank or municipal supply inlet. Shorter suction lines reduce friction losses and improve NPSH availability.
Poor positioning that requires long or elevated suction piping increases cavitation risk and destabilizes pump operation.
Avoid Flood-Prone or Damp Areas
Pump locations must be protected from flooding, standing water, and high humidity. Moisture accelerates corrosion and damages motors and electrical components.
If installation in a low area is unavoidable, ensure proper drainage and raised foundations.
Ensure Adequate Access for Maintenance
Sufficient clearance around the pump is essential for inspection, seal replacement, motor servicing, and alignment checks.
Crowded installations force improper maintenance practices and often lead to delayed repairs and secondary damage.
Consider Noise and Vibration Impact
Pump positioning should minimize noise transmission to occupied spaces. Avoid mounting pumps directly beneath living areas, offices, or sensitive equipment.
Proper location selection reduces the need for costly noise mitigation later.
Foundation Requirements for Booster Pumps
Use a Solid, Level Foundation
A rigid, level foundation is critical for maintaining pump alignment.
Concrete foundations or inertia bases are preferred for permanent installations. Lightweight or uneven surfaces allow movement and vibration, which shortens component life.
Ensure Foundation Mass and Stiffness
The foundation must be heavy enough to absorb vibration generated by the pump. Insufficient mass allows resonance and amplification of vibration.
Heavier foundations reduce noise and protect bearings and seals.
Level the Baseplate Accurately
Before mounting the pump, the baseplate must be leveled precisely using shims. Uneven baseplates cause shaft misalignment and uneven load distribution.
Leveling should be verified after final tightening of anchor bolts.
Proper Mounting of Booster Pumps
Use Baseplates or Skids Designed for the Pump
Pumps should be mounted on manufacturer-approved baseplates or engineered skids. These provide proper support and alignment between pump and motor.
Improvised mounting solutions often lead to distortion and vibration.
Secure Anchor Bolts Evenly
Anchor bolts must be tightened evenly and gradually. Uneven tightening twists the baseplate and misaligns the pump shaft.
Torque values should follow manufacturer recommendations.
Avoid Rigid Pipe Loads on the Pump
Piping should never impose mechanical load on the pump casing. Suction and discharge pipes must be independently supported.
Flexible connectors can be used to isolate vibration and compensate for minor movement.
Use Anti-Vibration Mounts Where Required
In noise-sensitive environments, anti-vibration mounts or inertia blocks reduce transmission of vibration to the building structure.
Mount selection must consider pump weight, speed, and operating conditions.
Alignment Considerations
Verify Pump and Motor Alignment
Misalignment is a major cause of bearing and seal failure.
Alignment should be checked:
Recheck Alignment After Commissioning
Initial operation can cause slight settling of foundations or mounts. Rechecking alignment after a short operating period prevents long-term damage.
Special Considerations for Multi-Pump Booster Sets
In multi-pump systems, all pumps must be mounted on a common, rigid base or on equally stable foundations. Uneven mounting leads to load imbalance and uneven wear among pumps.
Pump spacing must allow access and airflow while minimizing pipe stress.
Common Mounting Mistakes That Reduce Pump Life
Long-Term Benefits of Proper Positioning and Mounting
When booster pumps are correctly positioned and mounted, systems benefit from:
This article explains how to correctly position and mount booster pumps to ensure stable operation, reduced wear, and extended service life.
Why Pump Positioning and Mounting Matter
Booster pumps are rotating machines that generate dynamic forces during operation. These forces must be properly absorbed and isolated by the foundation and mounting system. Incorrect positioning transfers stress into the pump casing, shaft, bearings, and connected piping, leading to premature mechanical failure.
Proper mounting ensures:
- Minimal vibration
- Correct shaft alignment
- Stable hydraulic performance
- Reduced noise
- Longer seal and bearing life
Choosing the Right Location for Booster Pumps
Install Pumps Close to the Suction Source
Booster pumps should be positioned as close as possible to the suction source, such as a ground tank or municipal supply inlet. Shorter suction lines reduce friction losses and improve NPSH availability.
Poor positioning that requires long or elevated suction piping increases cavitation risk and destabilizes pump operation.
Avoid Flood-Prone or Damp Areas
Pump locations must be protected from flooding, standing water, and high humidity. Moisture accelerates corrosion and damages motors and electrical components.
If installation in a low area is unavoidable, ensure proper drainage and raised foundations.
Ensure Adequate Access for Maintenance
Sufficient clearance around the pump is essential for inspection, seal replacement, motor servicing, and alignment checks.
Crowded installations force improper maintenance practices and often lead to delayed repairs and secondary damage.
Consider Noise and Vibration Impact
Pump positioning should minimize noise transmission to occupied spaces. Avoid mounting pumps directly beneath living areas, offices, or sensitive equipment.
Proper location selection reduces the need for costly noise mitigation later.
Foundation Requirements for Booster Pumps
Use a Solid, Level Foundation
A rigid, level foundation is critical for maintaining pump alignment.
Concrete foundations or inertia bases are preferred for permanent installations. Lightweight or uneven surfaces allow movement and vibration, which shortens component life.
Ensure Foundation Mass and Stiffness
The foundation must be heavy enough to absorb vibration generated by the pump. Insufficient mass allows resonance and amplification of vibration.
Heavier foundations reduce noise and protect bearings and seals.
Level the Baseplate Accurately
Before mounting the pump, the baseplate must be leveled precisely using shims. Uneven baseplates cause shaft misalignment and uneven load distribution.
Leveling should be verified after final tightening of anchor bolts.
Proper Mounting of Booster Pumps
Use Baseplates or Skids Designed for the Pump
Pumps should be mounted on manufacturer-approved baseplates or engineered skids. These provide proper support and alignment between pump and motor.
Improvised mounting solutions often lead to distortion and vibration.
Secure Anchor Bolts Evenly
Anchor bolts must be tightened evenly and gradually. Uneven tightening twists the baseplate and misaligns the pump shaft.
Torque values should follow manufacturer recommendations.
Avoid Rigid Pipe Loads on the Pump
Piping should never impose mechanical load on the pump casing. Suction and discharge pipes must be independently supported.
Flexible connectors can be used to isolate vibration and compensate for minor movement.
Use Anti-Vibration Mounts Where Required
In noise-sensitive environments, anti-vibration mounts or inertia blocks reduce transmission of vibration to the building structure.
Mount selection must consider pump weight, speed, and operating conditions.
Alignment Considerations
Verify Pump and Motor Alignment
Misalignment is a major cause of bearing and seal failure.
Alignment should be checked:
- After mounting
- After piping installation
- After initial startup
Recheck Alignment After Commissioning
Initial operation can cause slight settling of foundations or mounts. Rechecking alignment after a short operating period prevents long-term damage.

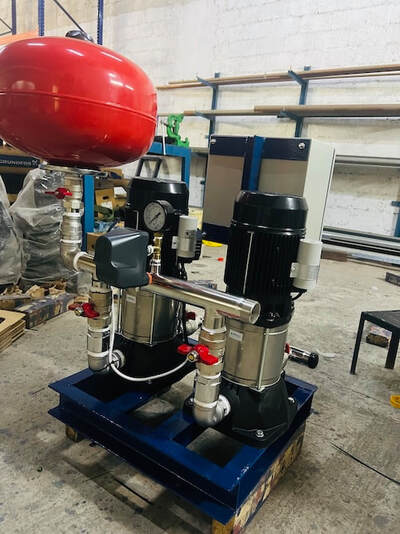

Special Considerations for Multi-Pump Booster Sets
In multi-pump systems, all pumps must be mounted on a common, rigid base or on equally stable foundations. Uneven mounting leads to load imbalance and uneven wear among pumps.
Pump spacing must allow access and airflow while minimizing pipe stress.
Common Mounting Mistakes That Reduce Pump Life
- Installing pumps on uneven or flexible floors
- Skipping baseplate leveling
- Allowing piping to support pump weight
- Using inadequate foundation mass
- Ignoring alignment after installation
- Installing pumps too close to walls or obstacles
Long-Term Benefits of Proper Positioning and Mounting
When booster pumps are correctly positioned and mounted, systems benefit from:
- Smooth and quiet operation
- Stable pressure delivery
- Reduced seal and bearing wear
- Lower maintenance frequency
- Extended pump and motor lifespan
- Improved overall system reliability
