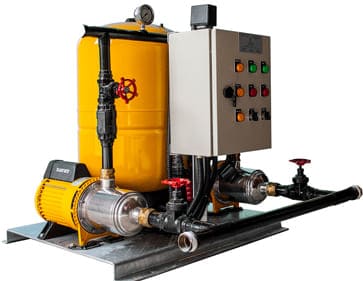

Electrical wiring plays a critical role in the safe and reliable operation of booster pump systems. Even a perfectly sized and well-installed pump can fail prematurely if the electrical wiring is incorrect. Common issues such as nuisance tripping, motor overheating, VFD faults, and control instability are often traced back to poor wiring practices rather than pump defects.
This article explains best electrical wiring practices for booster pump installations, covering power supply, motor protection, control wiring, grounding, and long-term reliability considerations.
Why Proper Electrical Wiring Is Critical
Booster pumps operate under variable load conditions and often run for long hours. Electrical systems must handle starting currents, fluctuating loads, moisture exposure, and control signals without failure.
Incorrect wiring leads to:
Power Supply Best Practices
Verify Voltage, Phase, and Frequency
Before wiring begins, confirm that the available power supply matches the pump motor nameplate.
Voltage mismatch or incorrect frequency causes excessive current draw and overheating. Phase imbalance in three-phase systems creates uneven motor loading and reduces winding life.
Always measure supply voltage under load conditions, not just at no-load.
Use Correct Cable Size
Cable size must be selected based on:
Voltage drop should be kept within acceptable limits throughout the cable run.
Separate Power and Control Wiring
Power cables and control/signal cables must be routed separately.
Running them together introduces electromagnetic interference, which causes:
Motor Protection and Control Wiring
Install Proper Motor Protection Devices
Every booster pump motor must be protected against:
Skipping protection devices is a major cause of motor burnout.
Correct VFD Wiring Practices
When using VFD-controlled booster pumps:
Proper Sensor and Signal Wiring
Pressure sensors, level switches, and flow meters use low-voltage signals that are highly sensitive to noise.
Best practices include:
Grounding and Earthing Best Practices
Ensure Effective Equipment Grounding
All booster pump components must be properly grounded, including:
Maintain Low Ground Resistance
High ground resistance reduces protection effectiveness and increases risk of electrical faults.
Ground resistance should be tested and maintained within recommended limits, especially in dry or rocky soil conditions.
Avoid Ground Loops
Improper grounding creates circulating currents that interfere with control signals.
Ground loops often cause unexplained sensor errors and VFD trips.
Environmental Protection for Electrical Wiring
Protect Against Moisture and Condensation
Moisture is one of the biggest threats to electrical systems.
Use:
Account for Temperature Effects
High temperatures increase cable resistance and reduce insulation life. Low temperatures make insulation brittle.
Select cables rated for site temperature conditions and avoid tight bending in cold environments.
Commissioning and Testing Best Practices
Verify Motor Rotation Direction
Incorrect phase sequence causes reverse rotation, leading to:
Measure Current and Voltage Under Load
Check:
Test All Protection and Safety Devices
Simulate faults to verify:
Common Electrical Wiring Mistakes to Avoid
Long-Term Benefits of Proper Electrical Wiring
Correct electrical wiring ensures:
Electrical wiring is a foundation of booster pump reliability. Correct power supply verification, proper cable sizing, effective grounding, clean control wiring, and thorough commissioning protect motors, controls, and operators. For more info contact Booster Pump Set Suppliers in UAE or call us at +971 4 2522966.
This article explains best electrical wiring practices for booster pump installations, covering power supply, motor protection, control wiring, grounding, and long-term reliability considerations.
Why Proper Electrical Wiring Is Critical
Booster pumps operate under variable load conditions and often run for long hours. Electrical systems must handle starting currents, fluctuating loads, moisture exposure, and control signals without failure.
Incorrect wiring leads to:
- Motor overheating
- Insulation breakdown
- Phase imbalance
- VFD malfunction
- Unsafe operating conditions
- Shortened pump lifespan
Power Supply Best Practices
Verify Voltage, Phase, and Frequency
Before wiring begins, confirm that the available power supply matches the pump motor nameplate.
Voltage mismatch or incorrect frequency causes excessive current draw and overheating. Phase imbalance in three-phase systems creates uneven motor loading and reduces winding life.
Always measure supply voltage under load conditions, not just at no-load.
Use Correct Cable Size
Cable size must be selected based on:
- Motor full-load current
- Starting current
- Cable length
- Installation method
- Ambient temperature
Voltage drop should be kept within acceptable limits throughout the cable run.
Separate Power and Control Wiring
Power cables and control/signal cables must be routed separately.
Running them together introduces electromagnetic interference, which causes:
- Unstable pressure readings
- VFD speed hunting
- Sensor malfunction
- Communication errors
Motor Protection and Control Wiring
Install Proper Motor Protection Devices
Every booster pump motor must be protected against:
- Overload
- Short circuit
- Phase failure
- Phase reversal
- Over-temperature
Skipping protection devices is a major cause of motor burnout.
Correct VFD Wiring Practices
When using VFD-controlled booster pumps:
- Use VFD-rated motor cables
- Keep motor cable lengths within manufacturer limits
- Ensure proper shielding and grounding
- Avoid sharing power supply with sensitive electronics
Proper Sensor and Signal Wiring
Pressure sensors, level switches, and flow meters use low-voltage signals that are highly sensitive to noise.
Best practices include:
- Shielded cables for analog signals
- Proper grounding of shields at one end only
- Secure termination at control panels
- Avoid running signal wires near high-current conductors
Grounding and Earthing Best Practices
Ensure Effective Equipment Grounding
All booster pump components must be properly grounded, including:
- Pump motor
- Control panel
- VFD enclosure
- Pressure vessels (where required)
Maintain Low Ground Resistance
High ground resistance reduces protection effectiveness and increases risk of electrical faults.
Ground resistance should be tested and maintained within recommended limits, especially in dry or rocky soil conditions.
Avoid Ground Loops
Improper grounding creates circulating currents that interfere with control signals.
Ground loops often cause unexplained sensor errors and VFD trips.
Environmental Protection for Electrical Wiring
Protect Against Moisture and Condensation
Moisture is one of the biggest threats to electrical systems.
Use:
- Weatherproof enclosures
- Proper cable glands
- Drip loops on cable entries
- Anti-condensation heaters in control panels
Account for Temperature Effects
High temperatures increase cable resistance and reduce insulation life. Low temperatures make insulation brittle.
Select cables rated for site temperature conditions and avoid tight bending in cold environments.
Commissioning and Testing Best Practices
Verify Motor Rotation Direction
Incorrect phase sequence causes reverse rotation, leading to:
- No pressure build-up
- Seal damage
- Impeller loosening
Measure Current and Voltage Under Load
Check:
- Phase currents
- Voltage balance
- Power factor
Test All Protection and Safety Devices
Simulate faults to verify:
- Overload trip
- Phase failure detection
- Emergency stop function
- Alarm signals
Common Electrical Wiring Mistakes to Avoid
- Undersized power cables
- Incorrect overload settings
- Poor grounding or missing earth
- Mixing power and control wiring
- Inadequate enclosure sealing
- Ignoring voltage imbalance
- Skipping commissioning tests
Long-Term Benefits of Proper Electrical Wiring
Correct electrical wiring ensures:
- Stable pump operation
- Lower energy consumption
- Reduced downtime
- Longer motor and VFD life
- Improved safety
- Predictable maintenance costs
Electrical wiring is a foundation of booster pump reliability. Correct power supply verification, proper cable sizing, effective grounding, clean control wiring, and thorough commissioning protect motors, controls, and operators. For more info contact Booster Pump Set Suppliers in UAE or call us at +971 4 2522966.
