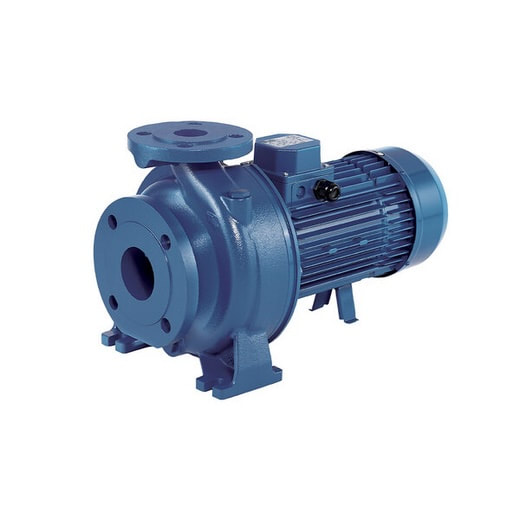

Ebara 3D/I 32-160/1.5
Standardised cast iron centrifugal pump with AISI 304 and AISI 316 steel impeller, axial suction and radial discharge with 2 or 4 poles motors. Available in three versions. Equipped with Back pull-out design that allows the motor, coupling, bracket and impeller to be removed without compromising the pump body or disassembling the piping. Many types of mechanical seals can be mounted on electric pumps to meet different requirements. Suitable for application in heating and air conditioning systems, water supply of civil, agricultural and industrial plants, pressurisation and fire-fighting
Flow: Upto 20 m3/hr
Head: Upto 27.5 m
Pump Body: Cast Iron
Pump Impeller: AISI 304 (EN 1.4301)
Shaft: AISI 304 (EN 1.4301)
Technical Details
Brand: Ebara
Model: 3D/I 32-160/1.5
Power KW: 1.5 KW
Power HP: 3 HP
Motor: 3~ 230-400V 50Hz
Motor RPM: 2800
Max. Temperature of the liquid: 50 Degree
insulation Class: F
Protection Degree: IP68
Application
Head: Upto 27.5 m
Pump Body: Cast Iron
Pump Impeller: AISI 304 (EN 1.4301)
Shaft: AISI 304 (EN 1.4301)
Technical Details
Brand: Ebara
Model: 3D/I 32-160/1.5
Power KW: 1.5 KW
Power HP: 3 HP
Motor: 3~ 230-400V 50Hz
Motor RPM: 2800
Max. Temperature of the liquid: 50 Degree
insulation Class: F
Protection Degree: IP68
Application
- Heating, ventilation and air-conditioning systems
- Water supply for civil, agricultural and industrial plants
- Pressurisation
- Firefighting systems
- Industrial liquid handling systems
- Irrigation for farms, sports facilities
- Washing systems
