Chilled Water Pumps
Chilled Water Pumps
Dxb Solutions offers array of chilled water pumps in UAE with number of pumping configurations. The speed of the pump can be changed according to the multiple chillers and cooling loads when linked to the outside temperature. The units are generally large end suction or Horizontal split casing pumps running at 1450 rpm. Such kind of water pumps is available with various flow capacities and with quality cooling tower.
GS is a new range and it sums up the values from EBARA. With the GS series, our brand adds another string to its bow and delivers new solutions to tackle the toughest challenges, even under adverse and hostile operating conditions. Reliable, efficient, strong and achievement-driven. GS came into being with these characteristics.
GS is a new range and it sums up the values from EBARA. With the GS series, our brand adds another string to its bow and delivers new solutions to tackle the toughest challenges, even under adverse and hostile operating conditions. Reliable, efficient, strong and achievement-driven. GS came into being with these characteristics.
|
Pump type |
Standardised horizontal single stage pump - End suction and electropump version |
|
Model range |
From DN 32 up to DN 200 |
|
Temperature range |
From -10°C up to +120°C |
|
Maximum operating pressure |
16 bar |
|
Material versions |
Pump body: cast iron Impeller: cast iron, ductile cast iron, bronze |
|
Regulations |
Seal: - Mechanical type (SiC/Carbon/EPDM), - Gland Packing (Silicon Carbide fiber) Compliant to ErP 547/2012 (MEI index > 0,4) and 640/2009 (IE3 motor efficiency) |
|
Flow |
8 to 350 mᶾ/hr |
|
Head |
160 to 8 m |
|
Motor |
0.75 to 200 kW |
|
Speed |
2,900 rpm |
|
Flow |
4 to 210 mᶾ/h |
|
Head |
65 to 2 m |
|
Motor |
0.55 to 90 kW |
|
Speed |
1,450 rpm |
|
Liq. temp |
-10 to 120°C |
Need a Quote
Working on a project and need quoting? Contact us today for a free quote
Working on a project and need quoting? Contact us today for a free quote
Brand:

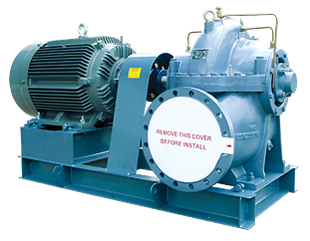

Ebara Split Case Pump
Very compact design for easy installation and permits minimum maintenance.
• Axially split casing allows the easy removal of the top casing for inspection and service. • A wider range of performance with head up to 150m.
• High speed drives and vertical mount available.
• Anti-corrosion materials used on the rotating parts.
• High quality sealed and cartridge type bearing units provide high durability.
• High allowable working pressure can ensure stable running.
• Mechanical seal for easy maintenance.
Very compact design for easy installation and permits minimum maintenance.
• Axially split casing allows the easy removal of the top casing for inspection and service. • A wider range of performance with head up to 150m.
• High speed drives and vertical mount available.
• Anti-corrosion materials used on the rotating parts.
• High quality sealed and cartridge type bearing units provide high durability.
• High allowable working pressure can ensure stable running.
• Mechanical seal for easy maintenance.
Catalogue
