- Published on
There are several types of booster pumps available, each with its own unique design, operating principles, and suitability for different applications. Here's a comparison of some common types of booster pumps and their suitability for various applications:
- Centrifugal Booster Pumps:
- Design: Centrifugal pumps use rotating impellers to impart kinetic energy to the fluid, increasing its velocity and pressure.
- Suitability: Centrifugal booster pumps are versatile and widely used in applications requiring moderate to high flow rates and relatively low to moderate pressures. They are suitable for water supply systems, irrigation, HVAC systems, and general-purpose boosting applications.

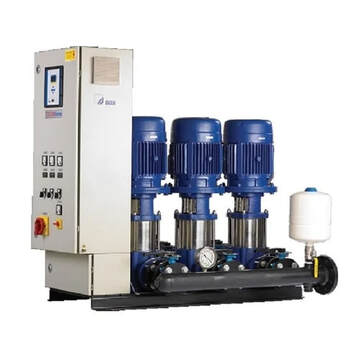

- Vertical Multistage Booster Pumps:
- Design: Vertical multistage pumps consist of multiple impeller stages stacked vertically within a single pump casing. Each stage adds pressure to the fluid.
- Suitability: Vertical multistage booster pumps are ideal for applications requiring high-pressure boosting, such as high-rise buildings, commercial facilities, industrial processes, and water treatment plants. They are capable of generating high pressures with relatively low flow rates.
- Horizontal Multistage Booster Pumps:
- Design: Similar to vertical multistage pumps, horizontal multistage pumps feature multiple impeller stages arranged horizontally. They are available in end-suction and inline configurations.
- Suitability: Horizontal multistage booster pumps are suitable for applications requiring moderate to high pressures and variable flow rates. They are commonly used in industrial processes, water supply systems, boiler feed systems, and reverse osmosis systems.
- Submersible Booster Pumps:
- Design: Submersible pumps are designed to be submerged in the fluid being pumped. They typically feature a hermetically sealed motor and are installed underwater.
- Suitability: Submersible booster pumps are well-suited for applications where space is limited or where the pump needs to be submerged, such as wells, boreholes, underground reservoirs, and sewage systems. They are also used in residential, commercial, and agricultural applications.
- Diaphragm Booster Pumps:
- Design: Diaphragm pumps use a flexible diaphragm to create a pulsating action that moves the fluid through the pump.
- Suitability: Diaphragm booster pumps are suitable for applications requiring precise metering, low flow rates, and sensitive handling of fluids. They are commonly used in chemical dosing, pharmaceutical processing, laboratory equipment, and wastewater treatment.
- Jet Booster Pumps:
- Design: Jet pumps utilize the Venturi effect to create suction and draw fluid into the pump, which is then pressurized by a centrifugal or piston pump.
- Suitability: Jet booster pumps are often used in shallow well applications, where they can draw water from depths of up to 25 feet. They are suitable for residential water supply, irrigation, and small-scale agricultural applications.
- Published on
Low water pressure is a common issue in residential settings that can affect everyday tasks such as showering, washing dishes, and doing laundry. Addressing this problem requires identifying the underlying causes and implementing appropriate solutions. Here's how to tackle the issue of low water pressure in residential settings:
- Check for Local Water Supply Issues:
- Contact your water utility provider to inquire about any known issues or maintenance activities that may be affecting water pressure in your area.
- Verify if there are any water restrictions, leaks, or infrastructure problems in your neighborhood that could be contributing to low water pressure.
- Inspect Household Plumbing:
- Check for leaks, blockages, or damage in your household plumbing system, including pipes, valves, and fixtures.
- Inspect faucets, showerheads, and hoses for mineral deposits or debris buildup that may restrict water flow.
- Replace old or corroded plumbing components that may be contributing to low water pressure.
- Evaluate Pressure Regulators:
- Check if your home is equipped with a pressure regulator, which controls the flow of water from the main supply line into your home.
- Adjust or replace the pressure regulator if it's malfunctioning or not set to the appropriate pressure level.
- Clean or Replace Filters:
- Clean or replace filters on faucets, showerheads, and appliances (such as washing machines and dishwashers) to remove sediment, debris, or mineral buildup that can restrict water flow.
- Ensure that inlet screens on appliances are free of obstructions.
- Consider Installing a Booster Pump:
- If low water pressure persists despite addressing other potential causes, consider installing a Booster Pump to increase water pressure throughout your home.
- Consult with a plumber or pump specialist to determine the appropriate type and size of booster pump for your specific needs and plumbing system.
- Check Pressure Balancing Valves:
- If low water pressure is primarily affecting showerheads or faucets, check if pressure balancing valves are installed and functioning properly.
- Pressure balancing valves help maintain consistent water pressure, especially in shower systems, by adjusting the flow of hot and cold water to compensate for fluctuations in supply pressure.
- Evaluate Water Usage Patterns:
- Assess your household's water usage patterns and consider ways to reduce water consumption, such as installing water-efficient fixtures, repairing leaks promptly, and avoiding simultaneous use of multiple water-consuming appliances.
- Reducing overall water demand can help alleviate strain on the plumbing system and improve water pressure.
- Consult with a Professional:
- If you're unable to identify or resolve the underlying causes of low water pressure, consider hiring a licensed plumber or water system specialist to conduct a thorough inspection and provide expert advice and solutions.
- Published on
Booster pumps are specifically designed to increase water pressure in plumbing systems by mechanically adding energy to the water. Here's how booster pumps effectively increase water pressure:
- Centrifugal Force Generation:
- Most booster pumps, particularly centrifugal ones, utilize the principle of centrifugal force to increase water pressure. These pumps feature an impeller that rotates rapidly within a casing. As the impeller spins, it imparts kinetic energy to the water, causing it to move radially outward and creating centrifugal force.
- Conversion of Kinetic Energy to Pressure:
- The kinetic energy imparted to the water by the rotating impeller is converted into pressure energy as the water is forced through the pump casing and discharged through the outlet. This process effectively increases the pressure of the water, allowing it to overcome resistance in the plumbing system and maintain higher pressure levels downstream.
- Multi-Stage Design:
- Many booster pumps, such as multistage centrifugal pumps, consist of multiple impeller stages arranged in series. Each impeller stage further increases the pressure of the water, resulting in a cumulative pressure boost as the water passes through each stage. This multi-stage design allows booster pumps to achieve higher pressure levels than single-stage pumps.
- Variable Speed Control:
- Some booster pumps are equipped with variable speed drives (VSDs) or frequency converters that allow for adjustable speed control. By varying the speed of the pump motor, these pumps can modulate the flow rate and pressure output to match the demand of the system more precisely. This ensures efficient operation and prevents excessive pressure buildup.
- Suction and Discharge Pressures:
- Booster pumps are installed in locations where the water pressure is low, typically at the inlet point of the plumbing system. The pump draws water from a low-pressure source (such as a well, reservoir, or municipal supply) and boosts its pressure before delivering it to the desired point of use. The discharge pressure of the pump is higher than the suction pressure, resulting in a pressure increase.
- Pressure Regulation:
- Some booster pumps are equipped with pressure sensors and controls that monitor the system pressure and adjust the pump operation accordingly. These pumps maintain a set pressure level within the system by modulating the pump speed or cycling the pump on and off as needed. This ensures consistent water pressure under varying demand conditions.
- Published on
Installing a booster pump requires careful planning and execution to ensure optimal performance and safety. Here are some installation tips and considerations for homeowners:
- Choose the Right Location:
- Select a suitable location for installing the booster pump, preferably near the main water supply line and electrical outlet.
- Ensure that the installation area is well-ventilated, dry, and free from potential hazards such as flooding or excessive heat.
- Check Local Codes and Regulations:
- Familiarize yourself with local building codes, regulations, and permit requirements related to booster pump installations.
- Obtain necessary permits and approvals from local authorities before proceeding with the installation.
- Select Proper Pipe Size:
- Use pipes with adequate diameter to accommodate the flow rates and pressure levels generated by the booster pump.
- Avoid using undersized or restrictive pipes, as they can cause pressure drop and reduce the pump's effectiveness.
- Install Shut-Off Valves:
- Install shut-off valves on the inlet and outlet sides of the booster pump to facilitate maintenance, repairs, and system isolation.
- Consider installing pressure gauges and pressure relief valves for monitoring and safety purposes.
- Provide Stable Mounting:
- Ensure that the mounting surface for the booster pump is sturdy, level, and capable of supporting the weight of the pump.
- Use appropriate mounting hardware and secure the pump firmly in place to prevent vibration, movement, or noise.
- Prime the Pump (if required):
- Some booster pumps may require priming to remove air from the system and ensure proper operation.
- Follow the manufacturer's instructions for priming the pump, which may involve filling the pump casing and suction line with water before starting the pump.
- Electrical Wiring and Grounding:
- Hire a qualified electrician to install the electrical wiring and connections for the booster pump.
- Ensure that the electrical components are properly grounded and protected from moisture, heat, and physical damage.
- Test the System:
- After installation, perform a thorough inspection and testing of the booster pump system to ensure proper functioning.
- Check for leaks, abnormal noises, and irregularities in water pressure or flow rates.
- Adjust pump settings, if necessary, to achieve the desired pressure levels and flow rates.
- Regular Maintenance and Monitoring:
- Establish a routine maintenance schedule for inspecting, lubricating, and servicing the booster pump and associated components.
- Monitor system performance and pressure levels regularly to detect any issues early and address them promptly.
- Consult with Professionals:
- If you're uncertain about any aspect of the installation process or encounter difficulties, don't hesitate to seek assistance from experienced plumbers, pump technicians, or contractors.
- Professional guidance can help ensure that the booster pump is installed correctly and operates safely and efficiently.
- Published on
Modern booster pumps incorporate various energy-saving technologies and designs to improve efficiency and reduce energy consumption. Here are some key features commonly found in energy-saving booster pumps:
- Variable Speed Drive (VSD):
- Booster pumps equipped with variable speed drives (VSDs) can adjust motor speed to match the required flow rate and pressure levels more precisely.
- VSDs modulate the pump's speed based on system demand, allowing for energy savings by reducing motor speed during periods of low demand.
- High-Efficiency Motors:
- Energy-efficient booster pumps are often equipped with high-efficiency motors that comply with industry standards such as NEMA Premium or IE3 (International Efficiency).
- These motors are designed to minimize energy losses and operate at higher efficiency levels compared to standard motors, resulting in reduced energy consumption.
- Hydraulic Efficiency:
- Modern booster pumps feature advanced hydraulic designs optimized for maximum efficiency.
- Improved impeller designs, streamlined pump casings, and precision engineering minimize hydraulic losses and enhance overall pump efficiency.
- Integrated Controls and Monitoring:
- Some energy-saving booster pumps come equipped with integrated control systems and advanced monitoring capabilities.
- These systems monitor operating conditions, adjust pump settings in real-time, and optimize performance for maximum energy efficiency.
- Demand-Based Operation:
- Energy-saving booster pumps can operate in response to system demand, adjusting output based on flow rate and pressure requirements.
- By matching pump output to actual demand, these pumps avoid unnecessary energy consumption during periods of low demand.
- Parallel Pumping Configuration:
- In larger systems, multiple booster pumps can be configured in parallel to share the workload and operate more efficiently.
- Parallel pumping allows for better load distribution, reduced cycling, and improved energy efficiency compared to single-pump configurations.
- Advanced Control Algorithms:
- Some energy-saving booster pumps utilize advanced control algorithms and predictive analytics to optimize system performance.
- These algorithms analyze operating data, anticipate changes in demand, and adjust pump operation proactively to minimize energy waste and maximize efficiency.
- Energy Recovery Systems:
- Certain booster pump systems incorporate energy recovery technologies such as pressure exchangers or hydraulic accumulators.
- These systems capture and reuse energy from pressure fluctuations or excess flow, reducing the need for additional energy input and improving overall system efficiency.
- Remote Monitoring and Management:
- Energy-saving booster pumps may offer remote monitoring and management capabilities, allowing users to track performance, adjust settings, and troubleshoot issues remotely.
- Remote monitoring helps ensure optimal operation, identify energy-saving opportunities, and minimize downtime.
- Published on
Using energy-efficient booster pumps offers significant long-term cost savings and environmental benefits:
- Reduced Energy Consumption: Energy-efficient booster pumps consume less electricity to achieve the same level of water pressure compared to conventional pumps. By operating more efficiently and optimizing energy use, these pumps reduce overall energy consumption, resulting in lower utility bills for homeowners, businesses, and organizations over time.
- Lower Operating Costs: With reduced energy consumption comes lower operating costs associated with running booster pump systems. The savings generated from lower energy bills can accumulate over the lifespan of the equipment, resulting in substantial cost savings for users.
- Extended Equipment Lifespan: Energy-efficient booster pumps are designed to operate more efficiently, with less strain on the motor and components. As a result, they experience less wear and tear over time, leading to extended equipment lifespan and reduced maintenance and replacement costs for users.
- Improved System Reliability: Energy-efficient booster pumps are typically engineered for optimal performance and reliability. By maintaining consistent water pressure and flow rates while minimizing energy waste, these pumps help ensure stable and reliable operation of plumbing systems, reducing the risk of downtime and costly repairs.
- Environmental Benefits: Energy-efficient booster pumps contribute to environmental conservation by reducing energy consumption and associated greenhouse gas emissions. By using less electricity to achieve the same level of water pressure, these pumps help mitigate the environmental impact of energy generation, supporting efforts to combat climate change and promote sustainability.
- Compliance with Regulations: Energy-efficient Booster Pumps may help users comply with energy efficiency regulations, standards, and initiatives established by government agencies, utilities, or industry organizations. Meeting or exceeding regulatory requirements demonstrates a commitment to environmental responsibility and may result in additional incentives, rebates, or recognition for users.
- Positive Public Image: By investing in energy-efficient technologies, users can enhance their reputation as environmentally conscious individuals, businesses, or organizations. Demonstrating a commitment to sustainability and energy efficiency can attract environmentally conscious customers, tenants, or stakeholders and enhance brand image and credibility.
- Long-Term Savings and Return on Investment: While energy-efficient Booster Pumps may have higher upfront costs compared to conventional pumps, the long-term savings generated from reduced energy consumption and operating costs can outweigh the initial investment. The return on investment (ROI) for energy-efficient equipment can be substantial over the lifespan of the equipment, providing financial benefits for users.
- Published on
Routine maintenance is essential for ensuring optimal performance, reliability, and longevity of booster pumps. Here's a guide to routine maintenance practices for booster pumps:
- Inspect Pump Components Regularly:
- Conduct visual inspections of the pump, motor, and associated components on a regular basis.
- Look for signs of leaks, corrosion, damage, or wear and tear that may indicate potential issues.
- Check for Proper Alignment:
- Ensure that the pump motor and shaft are properly aligned to prevent excessive vibration and premature wear.
- Use alignment tools and techniques to adjust alignment as needed.
- Monitor Pump Operation:
- Monitor pump operation during normal use to detect any abnormal noises, vibrations, or performance issues.
- Pay attention to changes in water pressure, flow rates, or energy consumption that may indicate pump problems.
- Inspect Seals and Gaskets:
- Check seals, gaskets, and O-rings for signs of wear, damage, or deterioration.
- Replace worn or damaged seals to prevent leaks and maintain pump efficiency.
- Lubricate Moving Parts:
- Lubricate bearings, shafts, and other moving parts according to the manufacturer's recommendations.
- Use the appropriate lubricants and follow proper lubrication procedures to ensure smooth operation and prevent friction-related issues.
- Clean Pump Components:
- Regularly clean pump components, including impellers, casings, and suction screens, to remove dirt, debris, or mineral deposits.
- Use mild detergents, brushes, or compressed air to clean components without causing damage.
- Inspect Electrical Components:
- Inspect electrical connections, wiring, and components for signs of damage, overheating, or corrosion.
- Tighten loose connections and replace damaged or worn electrical components as needed.
- Test Pump Performance:
- Periodically test pump performance by measuring water pressure, flow rates, and energy consumption.
- Compare actual performance data to expected values and investigate any discrepancies.
- Check System Controls and Safety Devices:
- Inspect control panels, switches, and safety devices (such as pressure switches, level sensors, and overload protection) to ensure proper operation.
- Test safety devices regularly and verify that they activate as intended in case of abnormal conditions.
- Schedule Preventive Maintenance:
- Establish a preventive maintenance schedule based on manufacturer recommendations, operating conditions, and usage patterns.
- Perform routine maintenance tasks such as lubrication, inspections, and adjustments at scheduled intervals to prevent issues and prolong pump lifespan.
- Document Maintenance Activities:
- Keep detailed records of maintenance activities, including inspection dates, findings, repairs, and replacements.
- Use maintenance logs or software tools to track maintenance history and schedule future tasks.
- Consult Manufacturer Guidelines:
- Refer to the manufacturer's operation and maintenance manuals for specific guidelines, recommendations, and procedures related to your booster pump model.
- Follow manufacturer instructions carefully to ensure proper maintenance and avoid voiding warranty coverage.
- Published on
Energy efficiency is critically important in booster pump systems for several reasons:
- Reduced Operating Costs: Energy-efficient booster pump systems consume less electricity to achieve the desired water pressure, leading to lower energy bills for homeowners or reduced operating expenses for businesses. Over time, the cost savings from reduced energy consumption can outweigh the initial investment in energy-efficient equipment.
- Environmental Impact: By reducing energy consumption, energy-efficient booster pump systems help minimize greenhouse gas emissions and environmental impact associated with electricity generation. This contributes to sustainability efforts and helps mitigate climate change.
- Optimized Performance: Energy-efficient booster pump systems are designed to operate at maximum efficiency, delivering the required water pressure while minimizing wasted energy. This ensures optimal system performance and reliability, reducing the risk of downtime, maintenance issues, and premature equipment failure.
- Compliance with Regulations: Many jurisdictions have regulations and standards aimed at promoting energy efficiency and reducing energy consumption. Energy-efficient booster pump systems help homeowners and businesses comply with these regulations, avoiding potential penalties or fines.
- Long-Term Cost Savings: While energy-efficient booster pump systems may have higher upfront costs compared to conventional systems, they offer significant long-term cost savings through reduced energy consumption and lower operating expenses. The return on investment (ROI) for energy-efficient equipment can be substantial over the lifespan of the system.
- Utility Rebates and Incentives: Some utility companies offer rebates, incentives, or financial incentives for installing energy-efficient equipment, including booster pump systems. Taking advantage of these programs can further offset the upfront costs and accelerate the payback period for energy-efficient investments.
- Enhanced Reputation: Investing in energy-efficient booster pump systems demonstrates a commitment to sustainability, efficiency, and responsible resource management. This can enhance the reputation of homeowners, businesses, or organizations, attracting environmentally conscious customers, tenants, or stakeholders.
- Future-Proofing: Energy-efficient booster pump systems are designed to meet or exceed current energy efficiency standards and regulations. By investing in energy-efficient equipment now, homeowners and businesses can future-proof their systems and avoid the need for costly upgrades or retrofits in the future.
- Published on
Matching pump specifications to specific requirements involves understanding the needs of the application and selecting a pump that can meet those needs efficiently and effectively. Here's a step-by-step guide to help you match pump specifications to specific requirements:
- Define the Application Requirements:
- Identify the fluid to be pumped (e.g., water, chemicals, wastewater).
- Determine the required flow rate (in gallons per minute, liters per second, etc.) and pressure (in psi, bar, etc.).
- Consider any special requirements such as temperature limitations, fluid viscosity, and compatibility with the pumped medium.
- Evaluate System Characteristics:
- Assess the layout and design of the system, including pipe size, length, and configuration.
- Calculate the total dynamic head (TDH), which includes the static head (elevation change), friction losses in the piping system, and any additional pressure requirements (e.g., fittings, valves).
- Determine the system curve, which represents the relationship between flow rate and total dynamic head.
- Select Pump Type:
- Choose the appropriate pump type based on the application requirements and system characteristics. Common types include centrifugal pumps, positive displacement pumps, and specialty pumps (e.g., diaphragm pumps, multistage pumps).
- Consider factors such as pump efficiency, reliability, and suitability for the pumped fluid.
- Match Pump Performance Curve to System Curve:
- Obtain the performance curve of the selected pump from the manufacturer's specifications.
- Plot the pump performance curve on the same graph as the system curve to determine the operating point where the two curves intersect.
- Ensure that the operating point falls within the acceptable range of flow rates and pressure levels required by the application.
- Check Operating Conditions and Environment:
- Consider the operating conditions such as temperature, altitude, and ambient environment to ensure the selected pump can operate safely and effectively under these conditions.
- Verify that the pump materials are compatible with the pumped fluid and environmental factors to prevent corrosion, erosion, or degradation.
- Evaluate Energy Efficiency and Cost Considerations:
- Assess the energy efficiency of the pump, considering factors such as motor efficiency, pump design, and variable speed options.
- Calculate the lifecycle costs, including upfront purchase price, installation costs, energy consumption, maintenance expenses, and expected lifespan, to determine the most cost-effective option.
- Verify Compliance with Standards and Regulations:
- Ensure that the selected pump meets relevant industry standards, regulations, and safety codes for the specific application and location.
- Consider certifications such as NSF, UL, CE, and compliance with standards such as ANSI, API, ISO, and ASME.
- Consult with Experts and Manufacturers:
- If needed, consult with pump experts, engineers, or manufacturers for guidance on selecting the most suitable pump for your requirements.
- Take advantage of technical support, product datasheets, and online resources provided by pump manufacturers to aid in the selection process.
- Published on
Selecting the right booster pump requires careful consideration of various factors to ensure optimal performance and efficiency. Here are the key factors to consider:
- Flow Rate Requirements: Determine the required flow rate based on the application's demand. Consider factors such as peak usage, system capacity, and flow rate variability to select a booster pump with adequate capacity to meet the required flow rates consistently.
- Pressure Requirements: Evaluate the desired pressure levels to ensure sufficient pressure is maintained throughout the system. Factors such as elevation changes, pipe friction, and system resistance should be taken into account when determining the required pressure head.
- Fluid Compatibility: Consider the type of fluid being pumped and ensure compatibility with the materials of construction used in the pump components. This is particularly important when pumping corrosive, abrasive, or viscous fluids to prevent damage and ensure longevity of the pump.
- System Design and Layout: Assess the layout and design of the system, including pipe size, length, and configuration. Properly sizing the pump and considering pipe friction losses will help optimize system performance and energy efficiency.
- Operating Conditions: Take into account the operating environment, including temperature, humidity, and atmospheric conditions. Choose a pump that is suitable for the specific operating conditions to ensure reliable performance and longevity.
- Power Supply: Determine the available power supply and voltage requirements to select a pump that can be adequately powered without overloading the electrical system. Consider factors such as voltage fluctuations and power consumption to ensure compatibility and efficiency.
- Energy Efficiency: Look for energy-efficient pump models with high-efficiency motors and variable speed drives (if applicable) to minimize energy consumption and operating costs over the pump's lifespan. Consider lifecycle costs rather than just upfront purchase price.
- Reliability and Durability: Choose a pump from a reputable manufacturer known for producing reliable and durable equipment. Consider factors such as pump construction, quality of materials, and warranty coverage to ensure long-term reliability and minimal downtime.
- Maintenance Requirements: Evaluate the maintenance requirements of the pump, including routine inspections, lubrication, and parts replacement. Choose a pump with accessible components and easy maintenance procedures to minimize downtime and maintenance costs.
- Regulatory Compliance: Ensure that the selected pump complies with relevant industry standards, regulations, and safety codes. This may include certifications for specific applications such as potable water, firefighting, or hazardous environments.
